P-2302R Series User’s Guide
Chapter 6 WAN Screens 86
If your ISP did not assign you a fixed IP address, click Get automatically from ISP
(Default); otherwise click Use fixed IP Address and enter the IP address in the field provided.

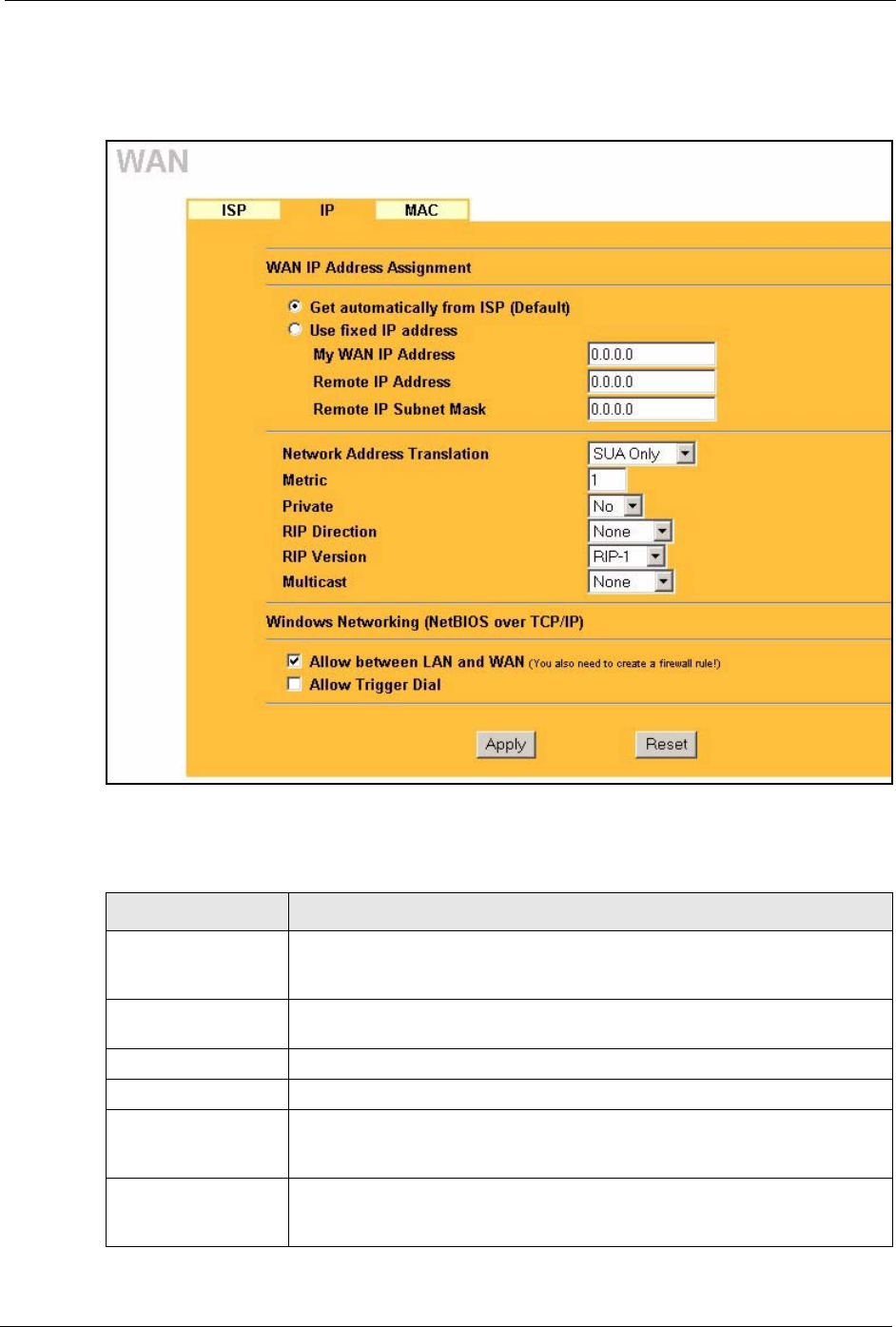

Figure 25 WAN: IP
The following table describes the labels in this screen.
Table 18 WAN: IP
LABEL DESCRIPTION
WAN IP Address
Assignment
This section is available if you use Ethernet encapsulation with the Standard
service type or PPPoE encapsulation. This section is not available if you use
Ethernet encapsulation with one of the RoadRunner (RR-) service types.
Get automatically from
ISP (Default)
Select this option if your ISP did not assign you a fixed IP address. This is the
default selection.
Use fixed IP address Select this option if the ISP assigned a fixed IP address.
My WAN IP Address Enter your WAN IP address in this field if you selected Use Fixed IP Address.
My WAN IP Subnet
Mask
This field is available if you selected Ethernet encapsulation. Enter the IP
subnet mask (if your ISP gave you one) in this field if you selected Use Fixed
IP Address.
Gateway IP Address This field is available if you selected Ethernet encapsulation. Enter the
gateway IP address (if your ISP gave you one) in this field if you selected Use
Fixed IP Address.
