83 Chapter 6 WAN Screens

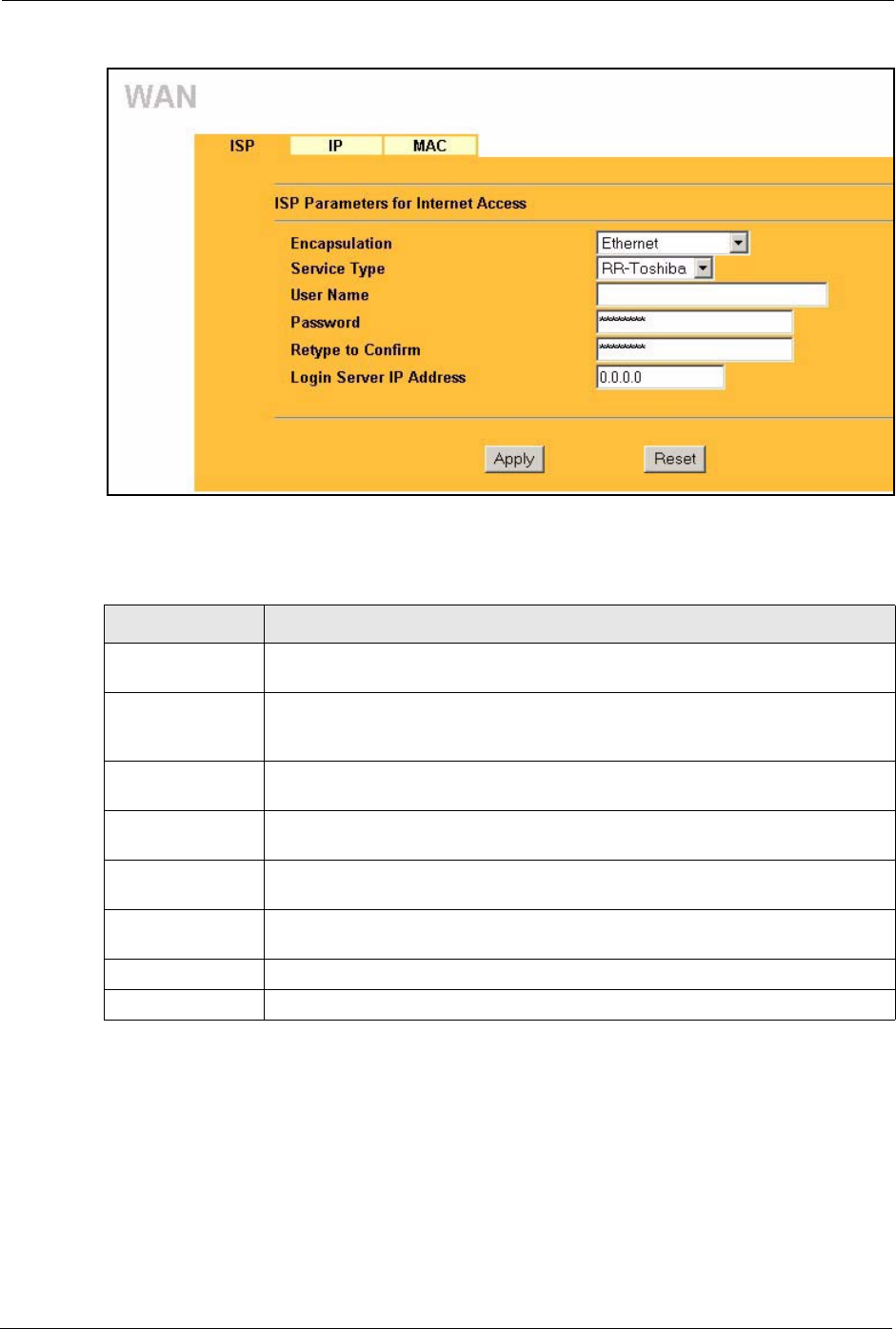

Figure 23 Ethernet Encapsulation
The following table describes the labels in this screen.
6.2.2 PPPoE Encapsulation
The Prestige supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF
standard (RFC 2516) specifying how a personal computer (PC) interacts with a broadband
modem (DSL, cable, wireless, etc.) connection. The PPP over Ethernet option is for a dial-
up connection using PPPoE.
Table 15 Ethernet Encapsulation
LABEL DESCRIPTION
Encapsulation You must choose the Ethernet option when the WAN port is used as a regular
Ethernet.
Service Type Choose from Standard, RR-Toshiba (Roadrunner Toshiba authentication
method), RR-Manager (Roadrunner Manager authentication method) or RR-
Telstra (RoadRunner Telstra authentication method).
User Name This field is not available if you select the Standard service type. Type the user
name given to you by your ISP.
Password This field is not available if you select the Standard service type. Type the
password associated with the user name above.
Retype to Confirm This field is not available if you select the Standard service type. Type the
password again to make sure that you have entered it correctly.
Login Server IP
Address
This field is not available if you select the Standard service type. Type the
authentication server IP address here if your ISP gave you one.
Apply Click Apply to save your changes back to the Prestige.
Reset Click Reset to begin configuring this screen afresh.
