P-2302R Series User’s Guide
Chapter 3 Wizard Setup 54
3.4 Wizard 3: WAN Setup
This wizard screen allows you to configure WAN IP address assignment, DNS server address
assignment and the WAN MAC address. See Chapter 6 on page 82 for background
information on these fields.
This wizard screen varies according to the type of encapsulation that you selected in the
previous wizard screen.

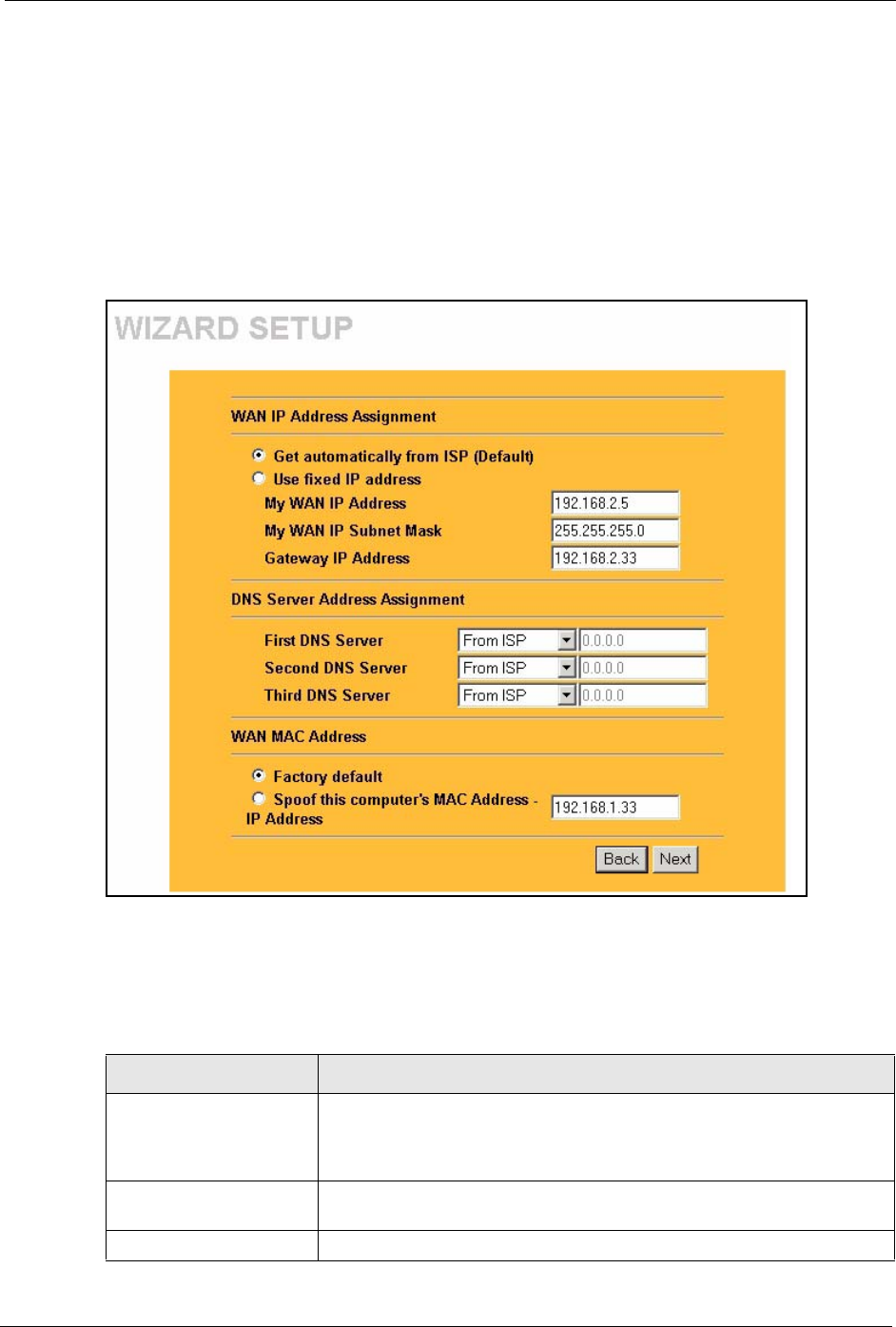

Figure 12 Wizard 3: WAN Setup
The following table describes the labels in this screen.
Table 6 Wizard 3: WAN Setup
LABEL DESCRIPTION
WAN IP Address
Assignment
This section is available if you use Ethernet encapsulation with the
Standard service type or PPPoE encapsulation (in the previous screen).
This section is not available if you use Ethernet encapsulation with one of
the RoadRunner (RR-) service types.
Get automatically from
ISP (Default)
Select this option if your ISP did not assign you a fixed IP address. This is
the default selection.
Use fixed IP address Select this option if the ISP assigned a fixed IP address.
