53 Chapter 3 Wizard Setup

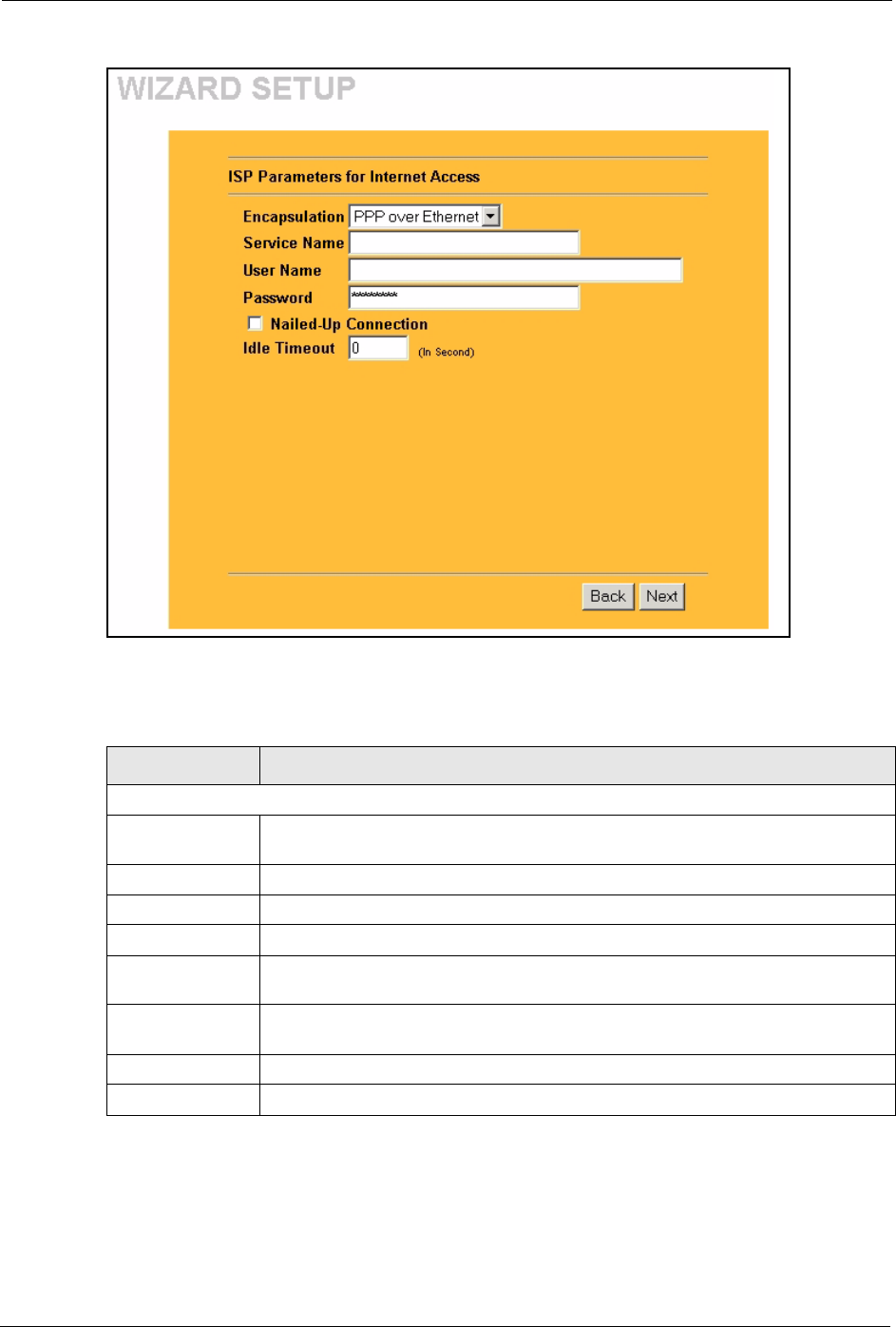

Figure 11 Wizard 2: PPPoE Encapsulation
The following table describes the labels in this screen.
Table 5 Wizard 2: PPPoE Encapsulation
LABEL DESCRIPTION
ISP Parameter for Internet Access
Encapsulation Choose PPP over Ethernet from the pull-down list box. PPPoE forms a dial-up
connection.
Service Name Type the name of your service provider.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Nailed-Up
Connection
Select Nailed-Up Connection if you do not want the connection to time out.
Idle Timeout Type the time in seconds that elapses before the router automatically disconnects
from the PPPoE server. The default time is 100 seconds.
Back Click Back to return to the previous screen.
Next Click Next to continue.
