Chapter 3 Wizard Setup 52

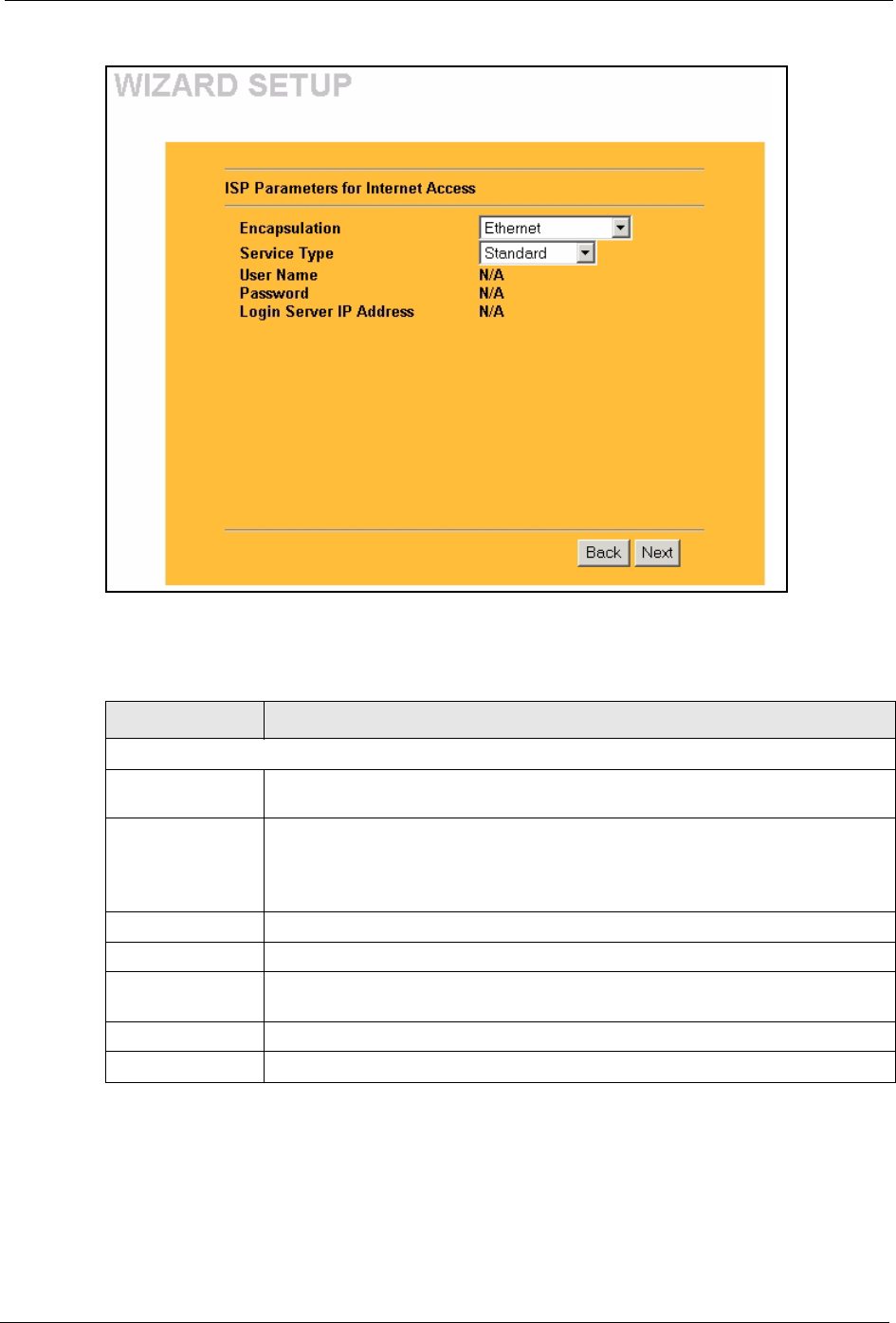

Figure 10 Wizard 2: Ethernet Encapsulation
The following table describes the labels in this screen.
3.3.2 PPPoE Encapsulation
Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an
IETF (Internet Engineering Task Force) standard specifying how a host personal computer
interacts with a broadband modem (for example DSL, cable, wireless, etc.) to achieve access
to high-speed data networks.
Table 4 Wizard 2: Ethernet Encapsulation
LABEL DESCRIPTION
ISP Parameters for Internet Access
Encapsulation You must choose the Ethernet option when the WAN port is used as a regular
Ethernet. Otherwise, choose PPP over Ethernet for a dial-up connection.
Service Type Choose from Standard, RR-Toshiba (Roadrunner Toshiba authentication
method), RR-Manager (Roadrunner Manager authentication method) or RR-
Telstra (RoadRunner Telstra authentication method).
The following fields are not applicable (N/A) for the Standard service type.
User Name Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Login Server IP
Address
Type the authentication server IP address here if your ISP gave you one.
Back Click Back to return to the previous screen.
Next Click Next to continue.
