P-2302R Series User’s Guide
47 Chapter 2 Introducing the Web Configurator

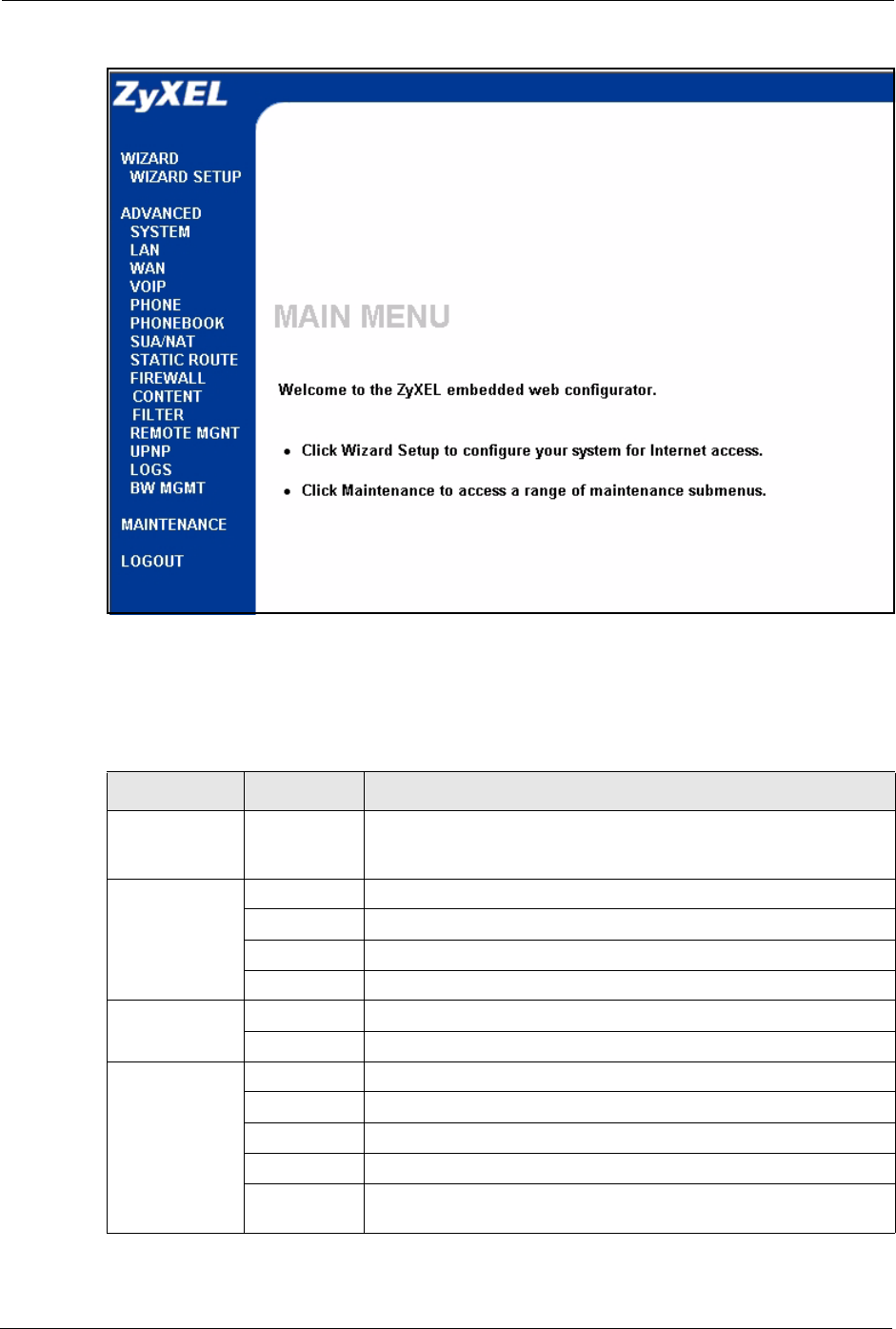

Figure 8 Web Configurator
The following table describes the sub-menus.
Table 2 Web Configurator Screens Summary
LINK TAB FUNCTION
WIZARD
SETUP
Use these screens for initial configuration including general setup,
ISP parameters for Internet Access, WAN IP/DNS Server/MAC
address assignment and VoIP.
SYSTEM General Use this screen to configure general system settings.
DDNS Use this screen to set up dynamic DNS.
Password Use this screen to change your password.
Time Setting Use this screen to change your Prestige’s time and date.
LAN
IP Use this screen to configure LAN DHCP and TCP/IP settings.
IP Alias Use this screen to partition your LAN interface into subnets.
WAN
Route This screen allows you to configure route priority.
WAN ISP Use this screen to change your Prestige’s WAN ISP settings.
WAN IP Use this screen to change your Prestige’s WAN IP settings.
WAN MAC Use this screen to change your Prestige’s WAN MAC settings.
Traffic
Redirect
Use this screen to configure your traffic redirect properties and
parameters.
