P-2302R Series User’s Guide

353 Appendix C Setting up Your Computer’s IP Address

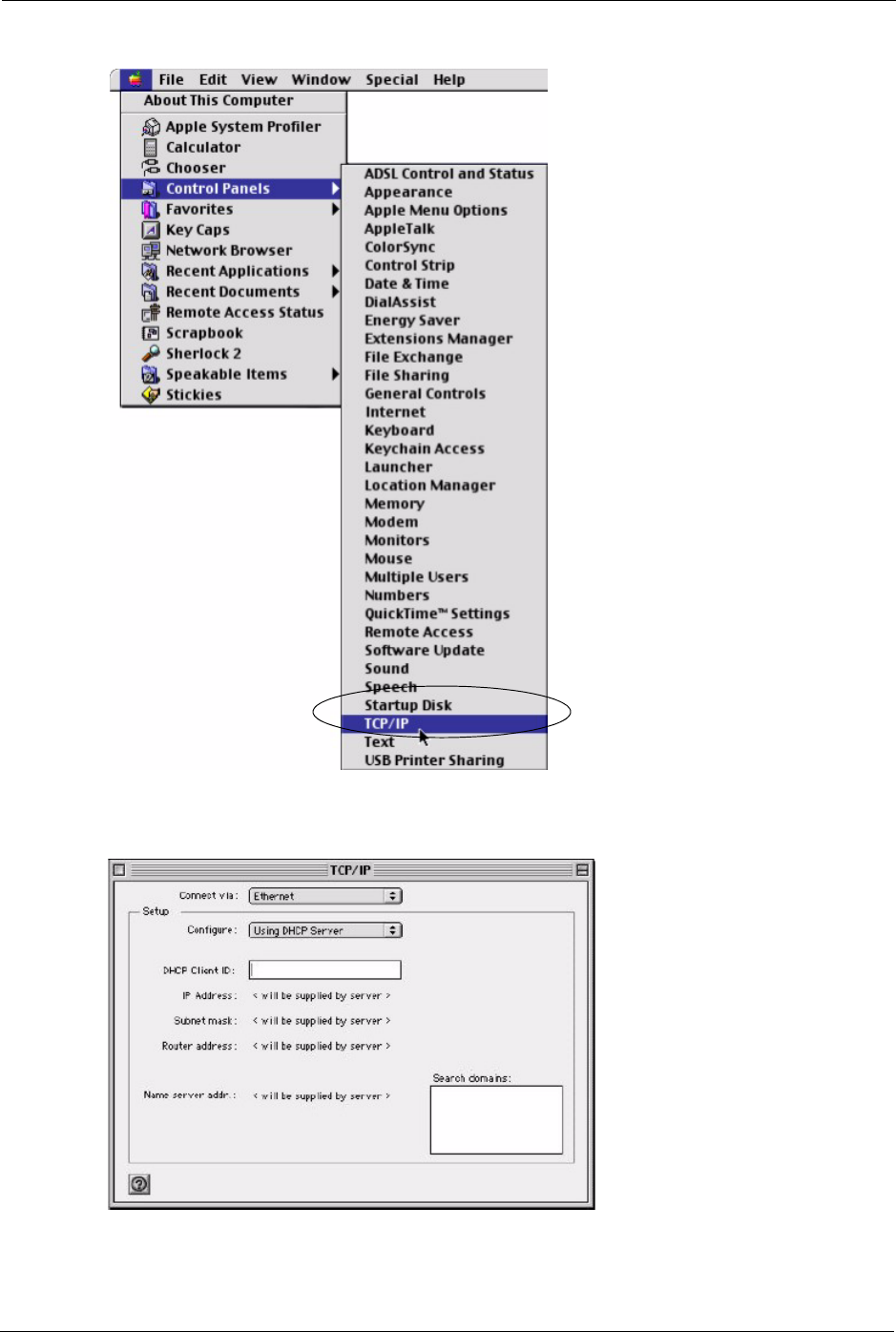

Figure 210 Macintosh OS 8/9: Apple Menu

2 Select Ethernet built-in from the Connect via list.

Figure 211 Macintosh OS 8/9: TCP/IP

3 For dynamically assigned settings, select Using DHCP Server from the Configure: list.
