P-2302R Series User’s Guide

335 Chapter 37 Troubleshooting

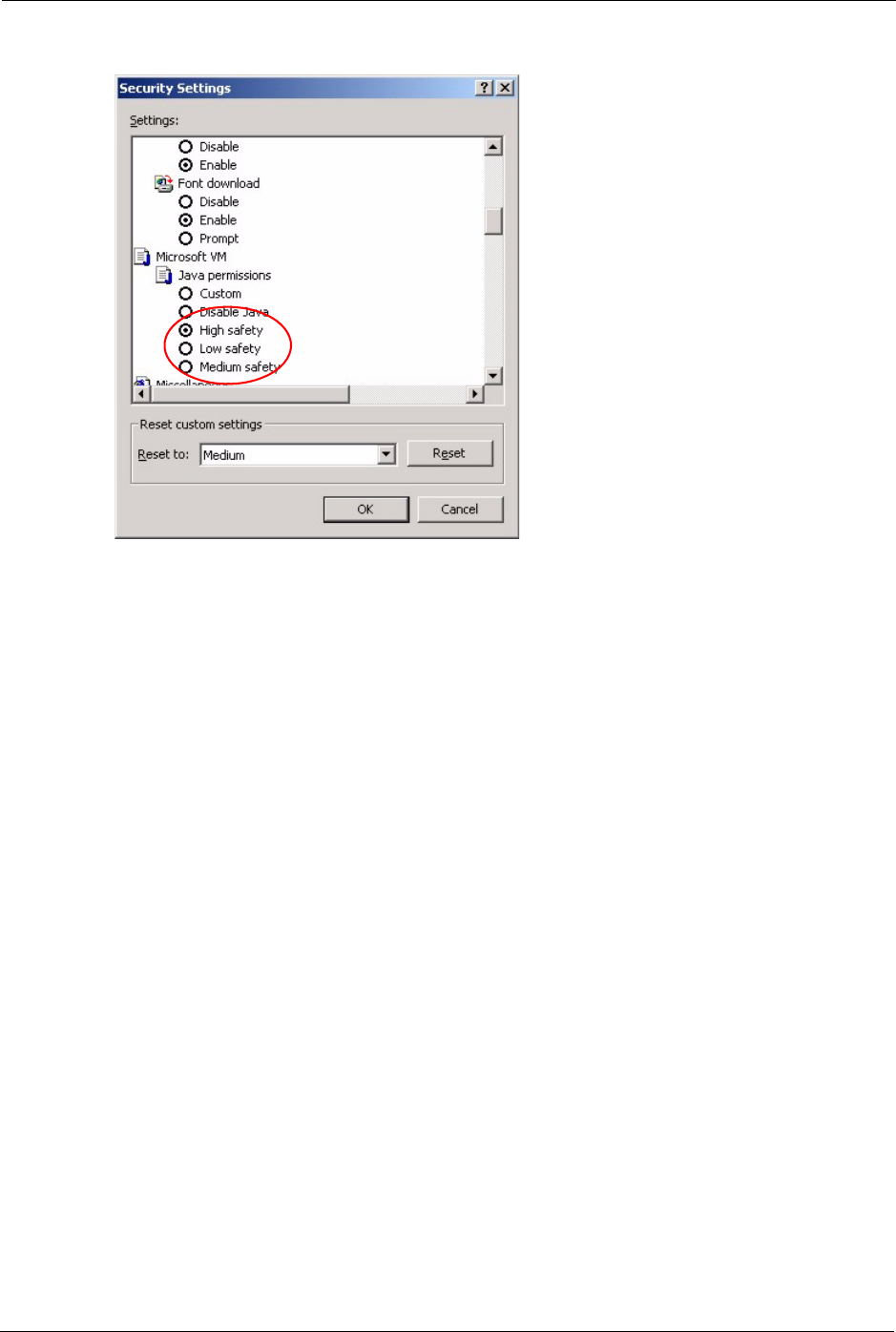

Figure 198 Security Settings - Java

37.9.3.1 JAVA (Sun)

1 From Internet Explorer, click Tools, Internet Options and then the Advanced tab.

2 make sure that Use Java 2 for <applet> under Java (Sun) is selected.

3 Click OK to close the window.
