P-2302R Series User’s Guide
301 Chapter 32 System Information and Diagnosis
Figure 172 Menu 24.4 System Maintenance: Diagnostic
32.4.1 WAN DHCP
DHCP functionality can be enabled on the LAN or WAN as shown in the following figure.
LAN DHCP has already been discussed. The Prestige can act either as a WAN DHCP client
(IP Address Assignment field in menu 4 or menu 11.3 is Dynamic and the Encapsulation
field in menu 4 or menu 11 is Ethernet) or None, (when you have a static IP). The WAN
Release and Renewal fields in menu 24.4 conveniently allow you to release and/or renew the
assigned WAN IP address, subnet mask and default gateway in a fashion similar to winipcfg.

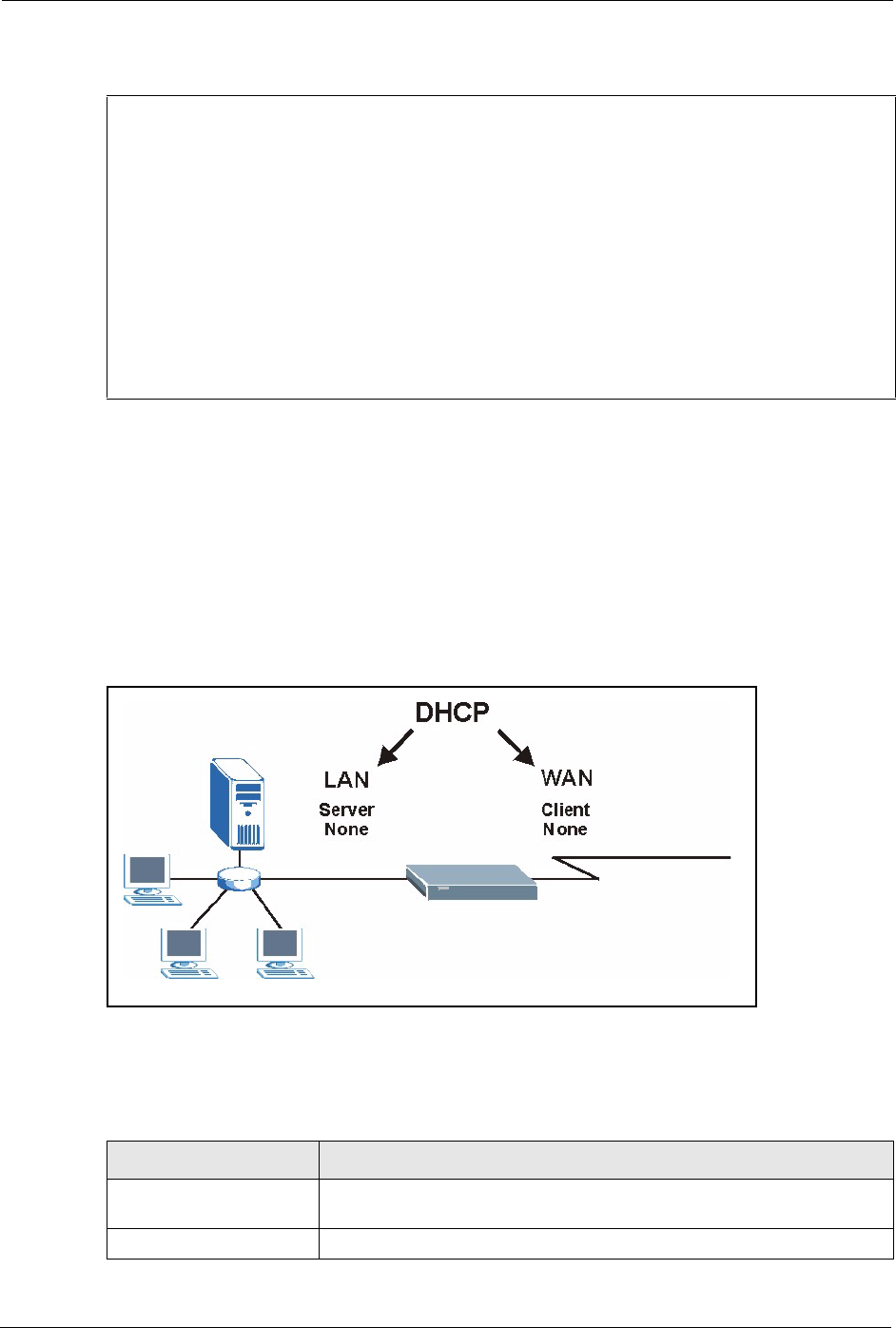

Figure 173 LAN & WAN DHCP
The following table describes the diagnostic tests available in menu 24.4 for your Prestige and
associated connections.
Menu 24.4 - System Maintenance - Diagnostic
TCP/IP
1. Ping Host
2. WAN DHCP Release
3. WAN DHCP Renewal
4. Internet Setup Test
System
11. Reboot System
Enter Menu Selection Number:
Host IP Address= N/A
Table 122 System Maintenance Menu Diagnostic
FIELD DESCRIPTION
Ping Host Enter 1 to ping any machine (with an IP address) on your LAN or WAN.
Enter its IP address in the Host IP Address field below.
WAN DHCP Release Enter 2 to release your WAN DHCP settings.
