P-2302R Series User’s Guide
Chapter 20 Maintenance 222
If the upload was not successful, a Configuration Upload Error screen will appear. Click
Return to go back to the Configuration screen.
20.6.3 Back to Factory Defaults
Clicking the Reset button in this section clears all user-entered configuration information and
returns the Prestige to its factory defaults as shown on the screen. The following warning
screen will appear.

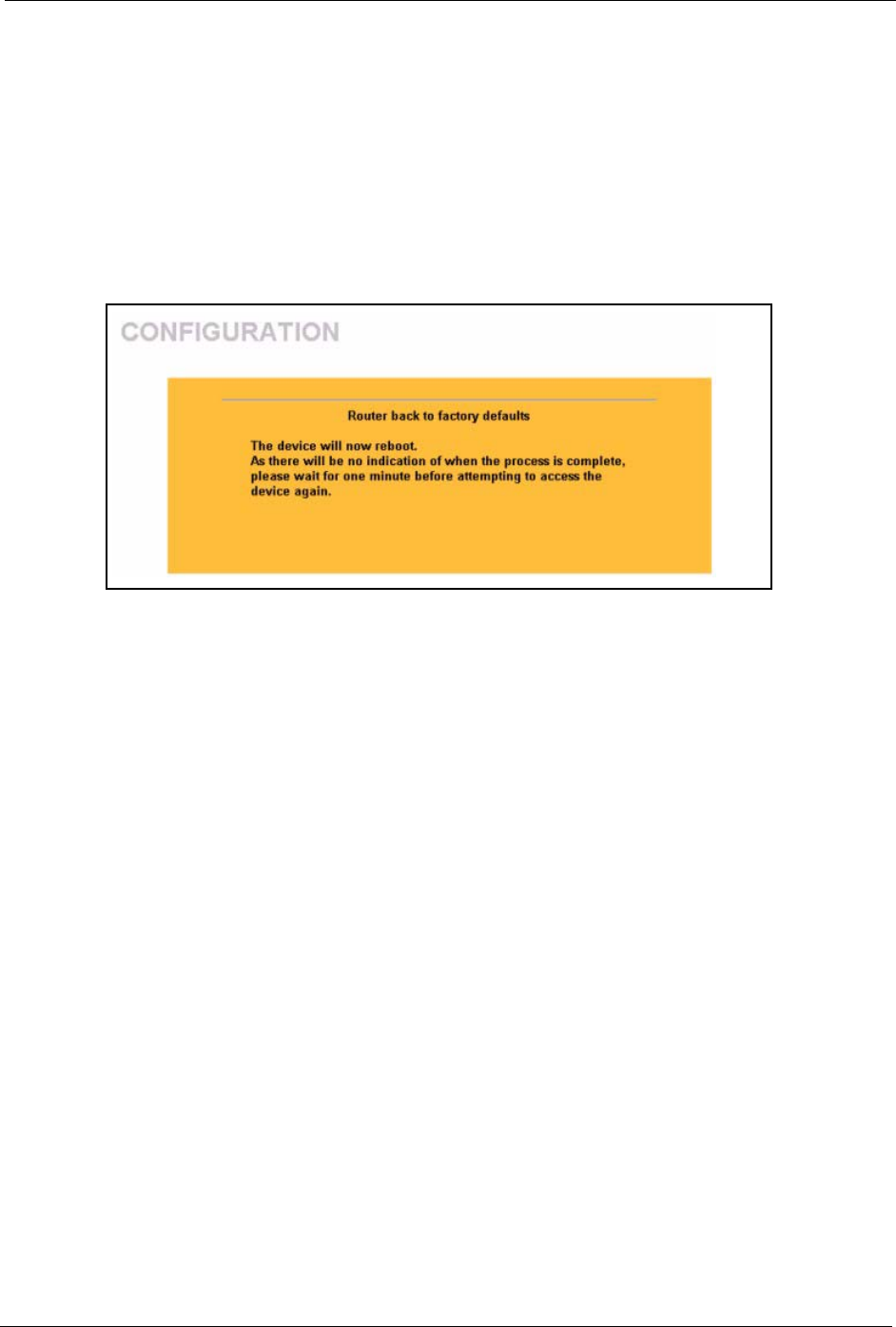

Figure 103 Reset Warning Message
You can also press the RESET button on the rear panel to reset the factory defaults of your
Prestige. For more information on the RESET button, see Section 2.3 on page 45.
20.7 Restart Screen
System restart allows you to reboot the Prestige without turning the power off.
Click MAINTENANCE in the navigation panel and then Restart. Click Restart to have the
Prestige reboot. This does not affect the Prestige's configuration.
