P-2302R Series User’s Guide
Chapter 20 Maintenance 214
20.2.1 System Statistics
Read-only information here includes port status and packet specific statistics. Also provided
are "system up time" and "poll interval(s)". The Poll Interval(s) field is configurable.

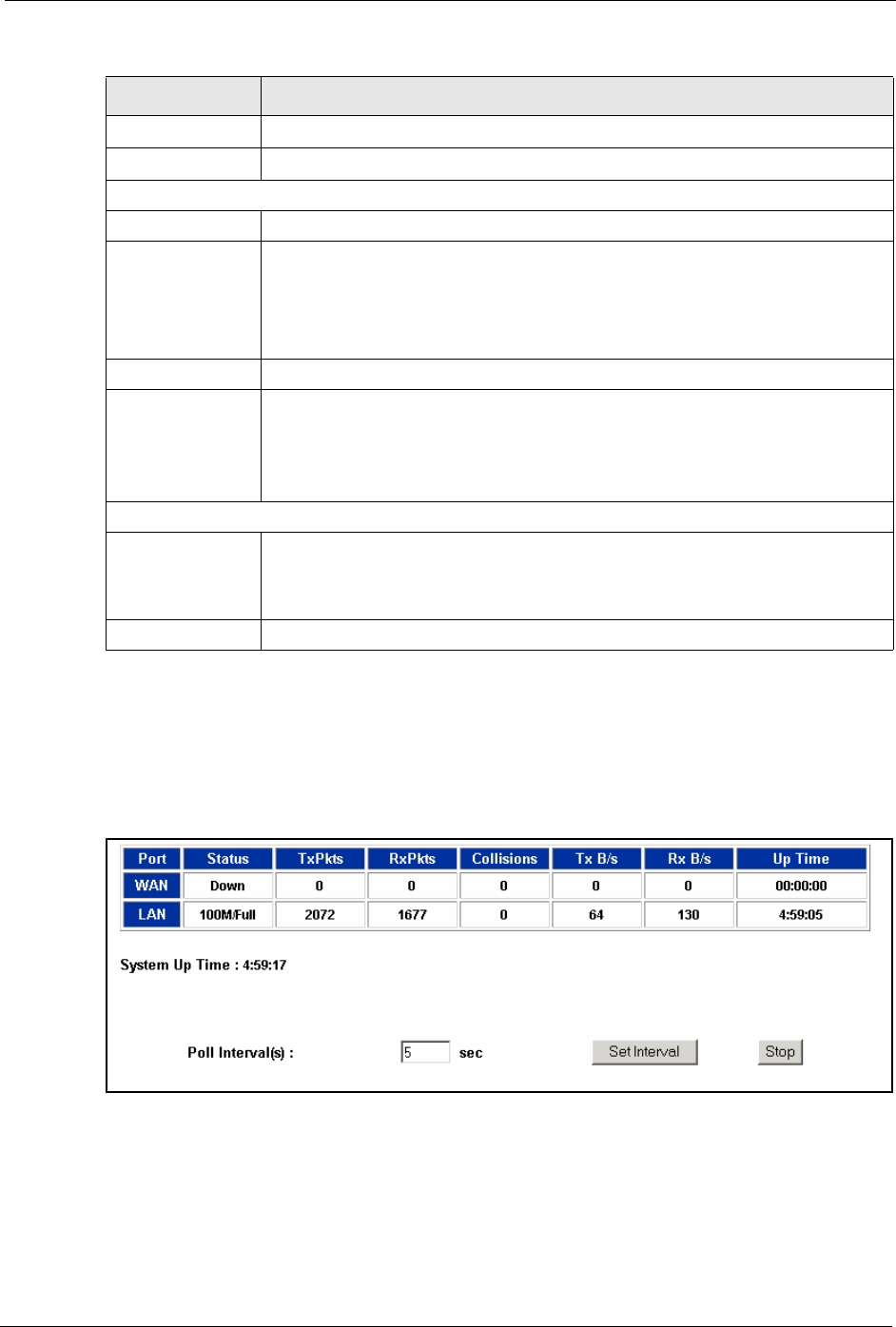

Figure 93 Maintenance System Statistics
The following table describes the labels in this screen.
IP Subnet Mask This is the LAN port subnet mask.
DHCP This is the LAN port DHCP role - Server, Relay or None.
VoIP status
SIP1/SIP 2 This is the SIP account configured on the Prestige
SIP Registration
Status
This is the SIP registration status of the SIP account.
This field displays Registered when the Prestige has successfully registered the
SIP account with the SIP register server.
This field displays Not Register when the Prestige has not successfully registered
the SIP account with the SIP register server.
Used Port This field displays the Prestige’s listening port for SIP traffic on this SIP account.
Register/
Unregister
Click Register to have the Prestige attempt to register the SIP account with the
SIP register server.
Click Unregister to delete the SIP account's registration on the SIP register
server. This removes the SIP registration server's SIP identity-to-IP address (or
domain name) mapping for this SIP account, it does not cancel your SIP account.
IVR Status
Remaining Time This field displays the amount of time left for recording custom tones. IVR
(Interactive Voice Response) is a feature that allows you to use your telephone to
interact with the Prestige. You can use your phone to record custom tones for the
caller ringing and on hold tone functions.
Show Statistics Click Show Statistics to display the real-time system statistics.
Table 87 System Status (continued)
LABEL DESCRIPTION
