213 Chapter 20 Maintenance

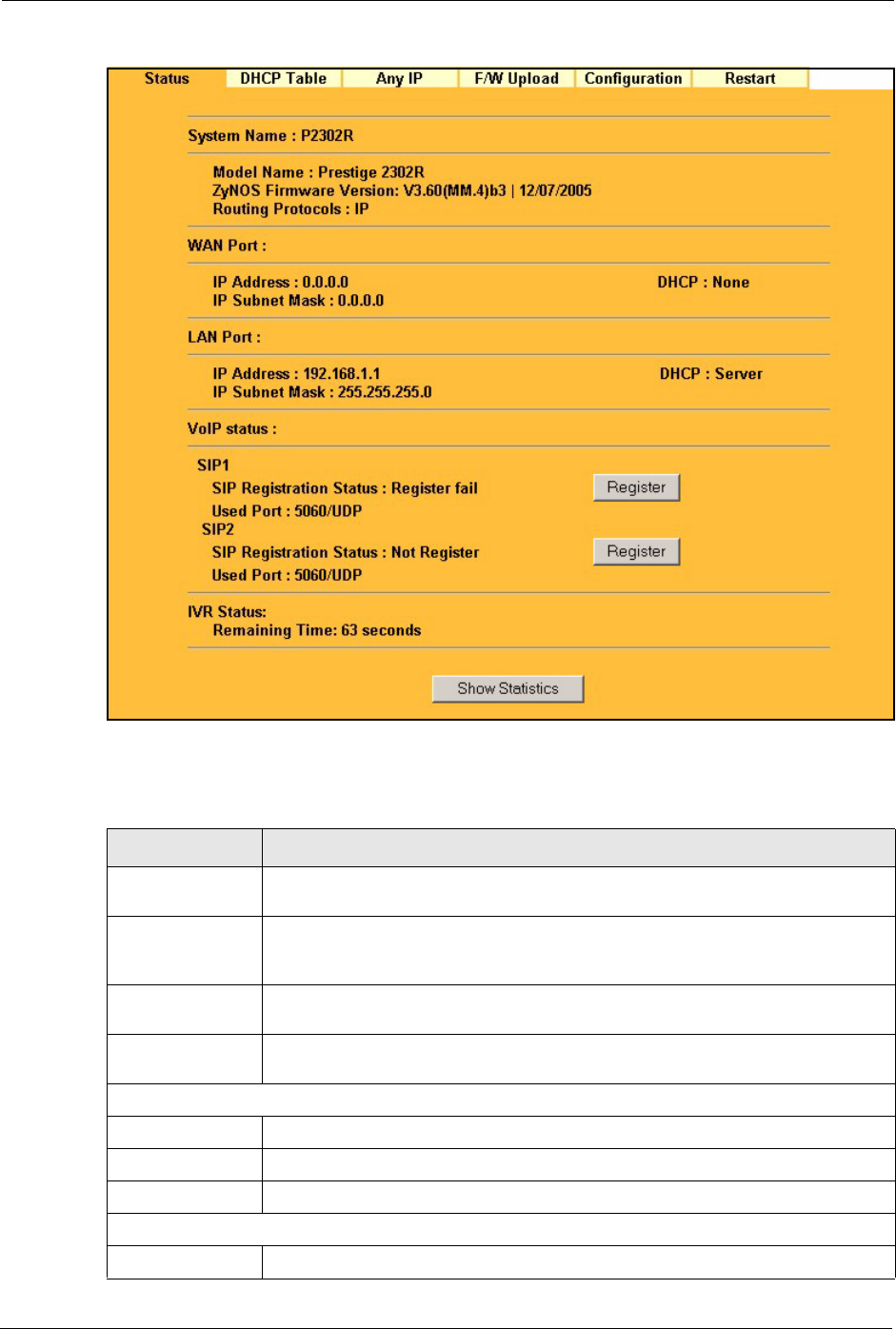

Figure 92 System Status
The following table describes the labels in this screen.
Table 87 System Status
LABEL DESCRIPTION
System Name This is the System Name. It is for identification purposes. You can configure it in
the SYSTEM General screen.
Model Name The model name identifies your device type. The model name should also be on a
sticker on your device. If you are uploading firmware, be sure to upload firmware
for this exact model name.
ZyNOS Firmware
Version:
This is the ZyNOS firmware version and the date the firmware was created.
ZyNOS is ZyXEL's proprietary Network Operating System.
Routing Protocols This shows the routing protocol that the Prestige handles - IP. This is not
configurable.
WAN Port
IP Address This is the WAN port IP address.
IP Subnet Mask This is the WAN port subnet mask.
DHCP This is the WAN port DHCP role - Client or None.
LAN Port
IP Address This is the LAN port IP address.
