P-2302R Series User’s Guide
Chapter 19 Bandwidth Management 208
19.11.2 Bandwidth Management Statistics
Use the Bandwidth Management Statistics screen to view network performance
information. Click the Statistics button in the Class Setup screen to open the Statistics
screen.

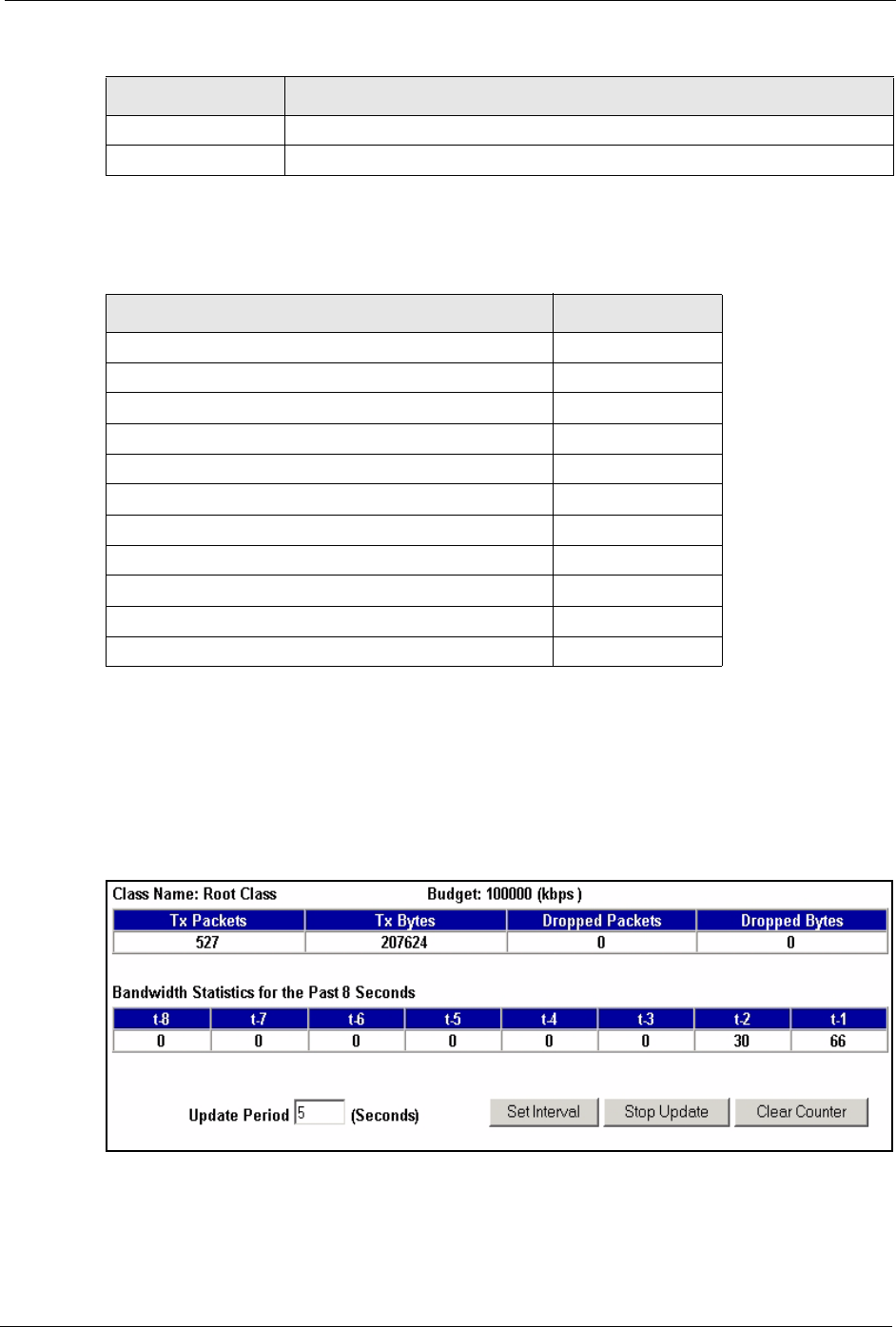

Figure 90 Bandwidth Management Statistics
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the Prestige.
Cancel Click Cancel to exit this screen without saving.
Table 84 Services and Port Numbers
SERVICES PORT NUMBER
ECHO 7
FTP (File Transfer Protocol) 21
SMTP (Simple Mail Transfer Protocol) 25
DNS (Domain Name System) 53
Finger 79
HTTP (Hyper Text Transfer protocol or WWW, Web) 80
POP3 (Post Office Protocol) 110
NNTP (Network News Transport Protocol) 119
SNMP (Simple Network Management Protocol) 161
SNMP trap 162
PPTP (Point-to-Point Tunneling Protocol) 1723
Table 83 Bandwidth Manager: Edit Class (continued)
LABEL DESCRIPTION
