Chapter 19 Bandwidth Management 206
19.11.1 Bandwidth Manager Class Configuration
Configure a bandwidth management class in the Class Setup screen. You must use the
Summary screen to enable bandwidth management on an interface before you can configure
classes for that interface.
To add a child class, click BW MGMT, then the Class Setup tab. Click the Add Sub-Class
button to open the following screen.

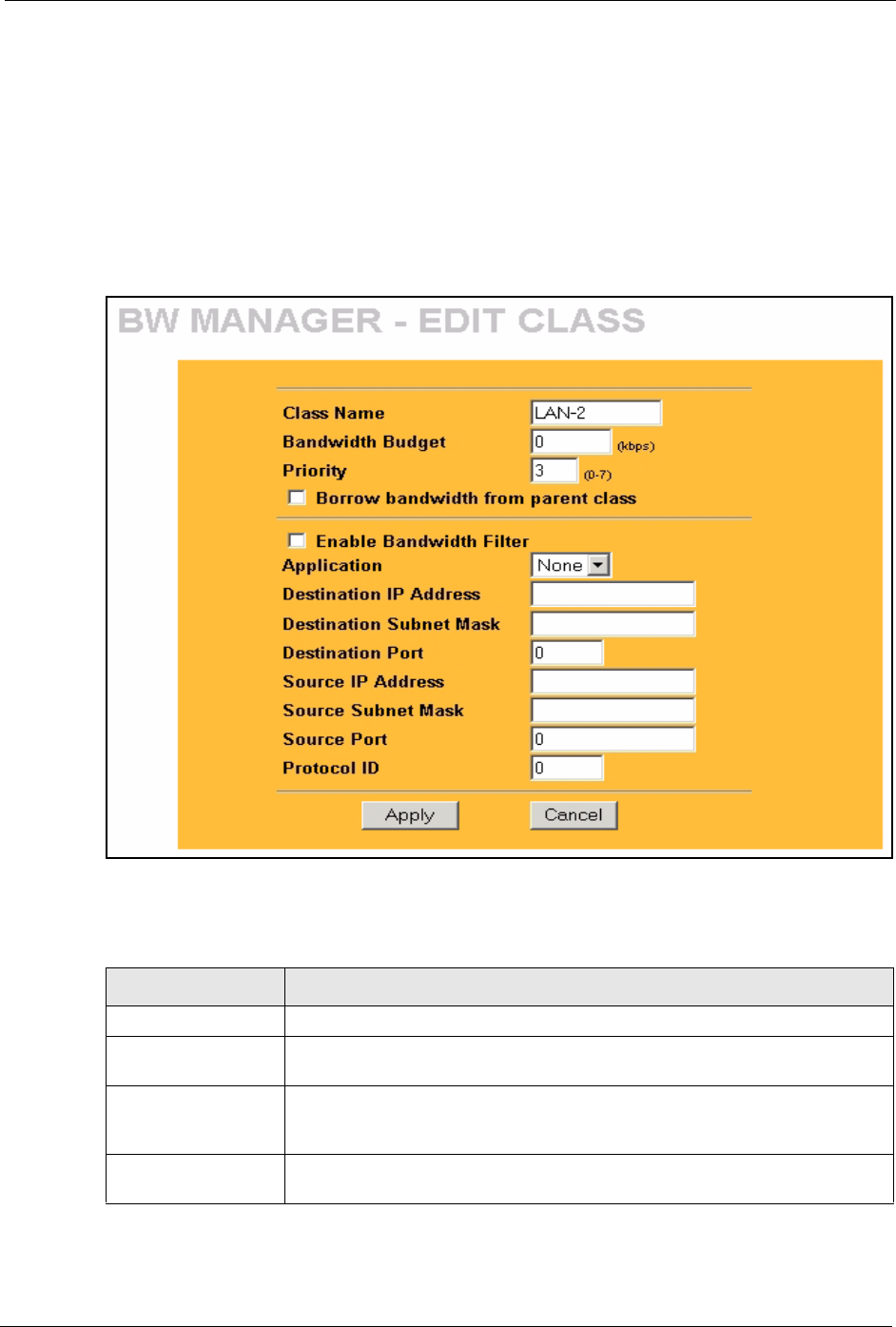

Figure 89 Bandwidth Manager: Edit Class
The following table describes the labels in this screen.
Table 83 Bandwidth Manager: Edit Class
LABEL DESCRIPTION
Class Configuration
Class Name Use the auto-generated name or enter a descriptive name of up to 20
alphanumeric characters, including spaces.
Bandwidth Budget
(kbps)
Specify the maximum bandwidth allowed for the class in kbps. The
recommendation is a setting between 20 kbps and 20000 kbps for an individual
class.
Priority Enter a number between 0 and 7 to set the priority of this class. The higher the
number, the higher the priority. The default setting is 3.
