P-2302R Series User’s Guide

181 Chapter 17 Universal Plug-and-Play (UPnP)

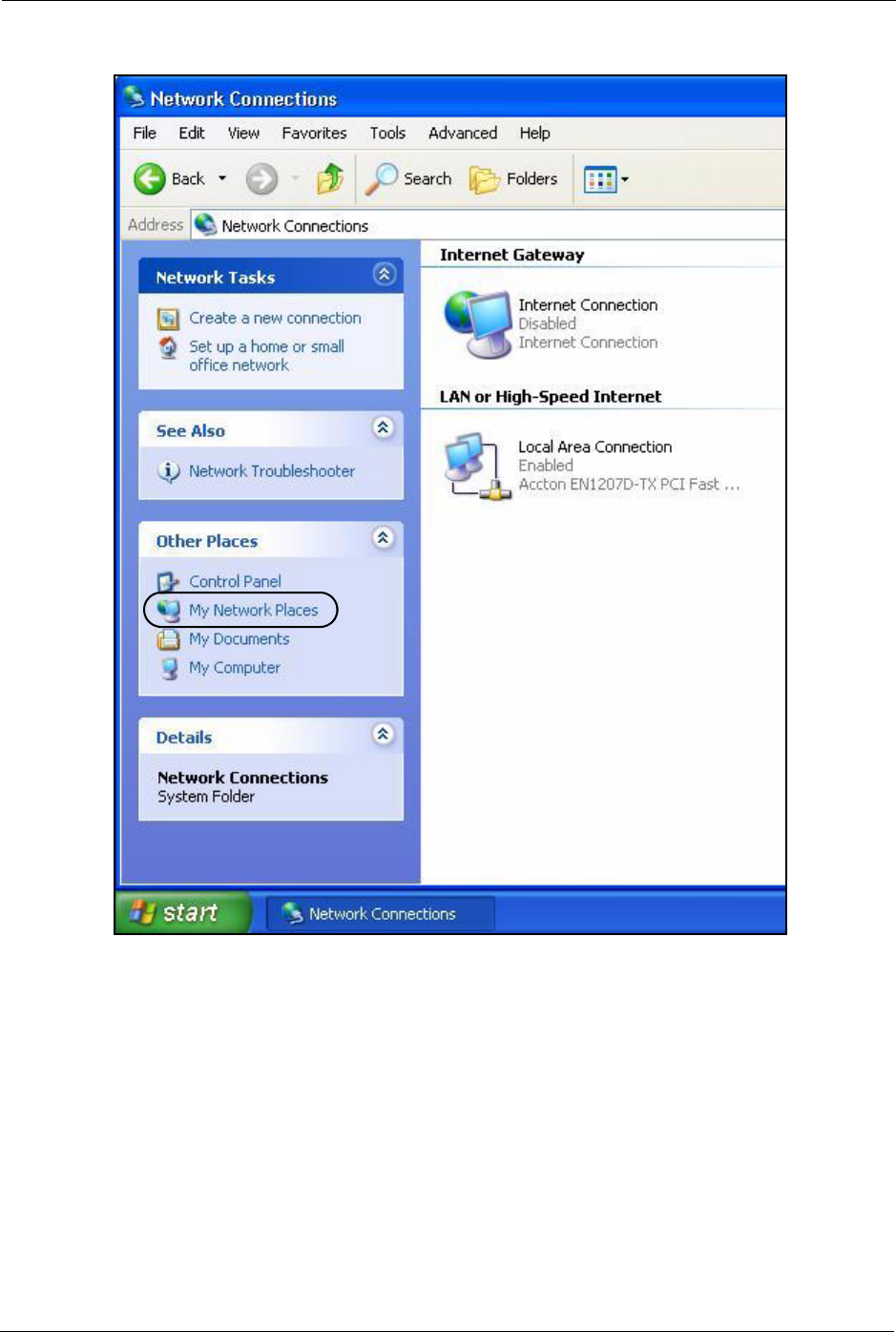

Figure 81 Network Connections

4 An icon with the description for each UPnP-enabled device displays under Local

Network.

5 Right-click on the icon for your Prestige and select Invoke. The web configurator login

screen displays.
