P-2302R Series User’s Guide

177 Chapter 17 Universal Plug-and-Play (UPnP)

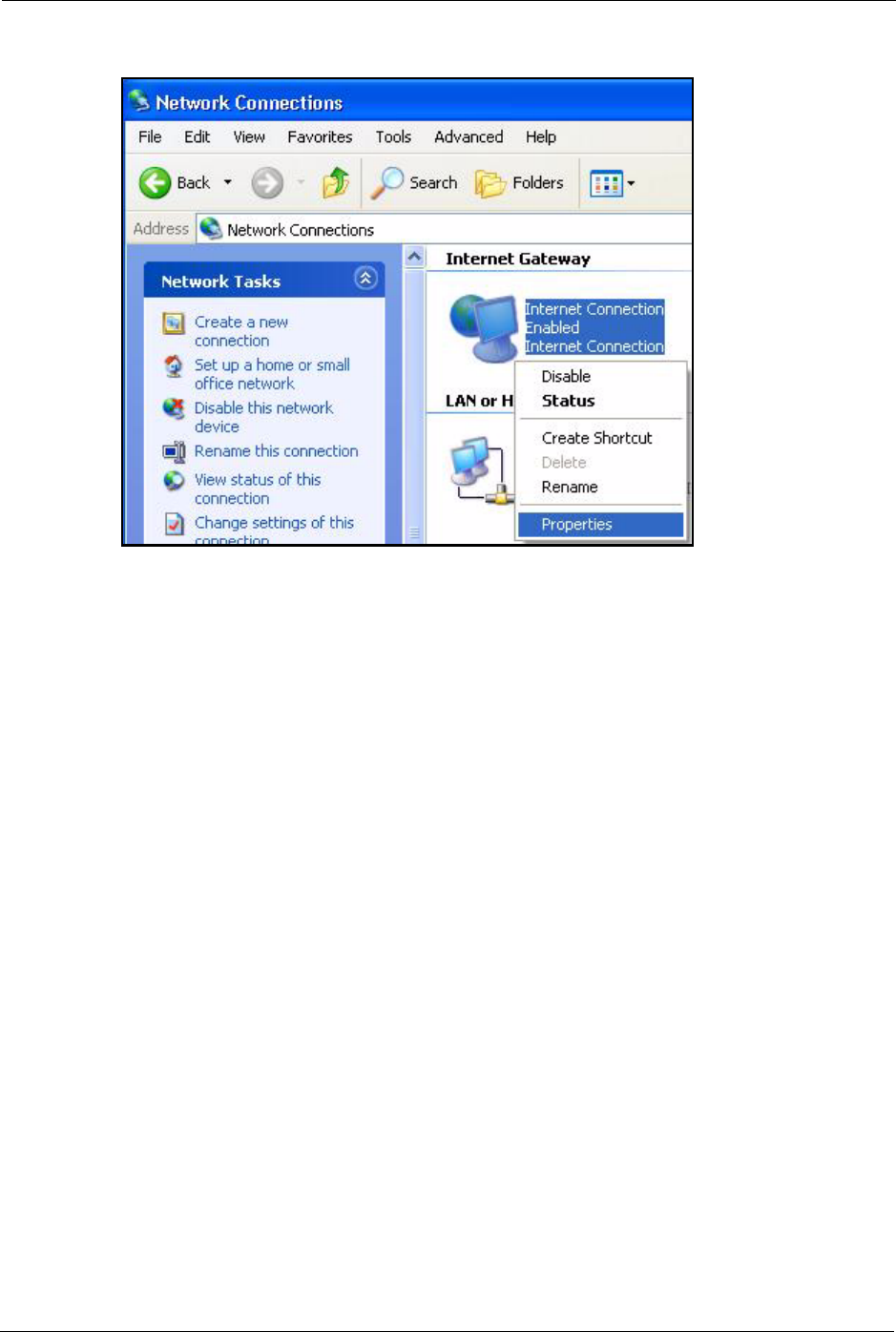

Figure 75 Network Connections

3 In the Internet Connection Properties window, click Settings to see the port mappings

there were automatically created.
