P-2302R Series User’s Guide

175 Chapter 17 Universal Plug-and-Play (UPnP)

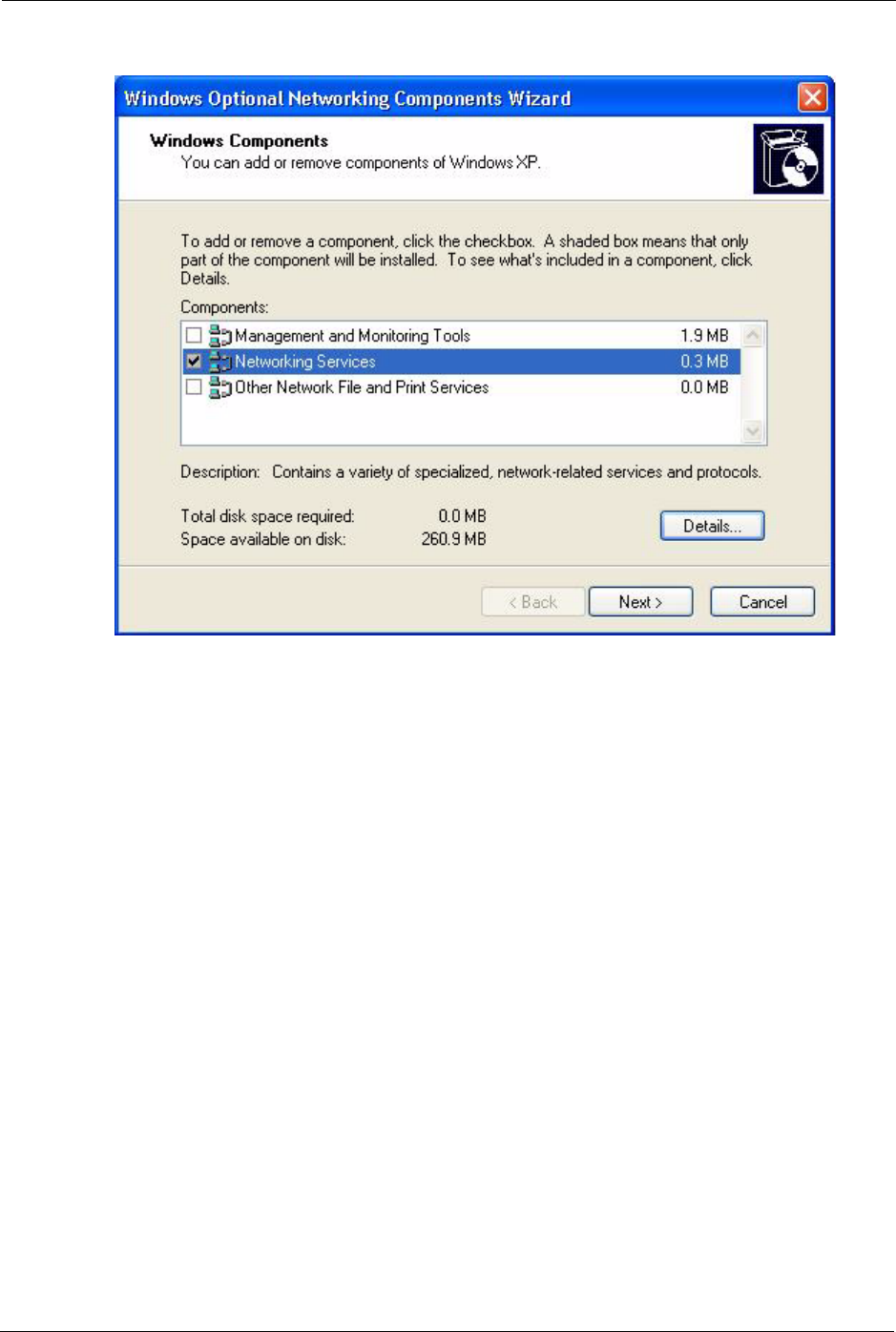

Figure 73 Windows Optional Networking Components Wizard

5 In the Networking Services window, select the Universal Plug and Play check box.
