P-2302R Series User’s Guide
167 Chapter 16 Remote Management Screens
16.7 Configuring DNS
Use DNS (Domain Name System) to map a domain name to its corresponding IP address and
vice versa. See Section 4.3.2 on page 63 for background information.
To change your Prestige’s DNS settings, click REMOTE MGMT, then the DNS tab. The
screen appears as shown.

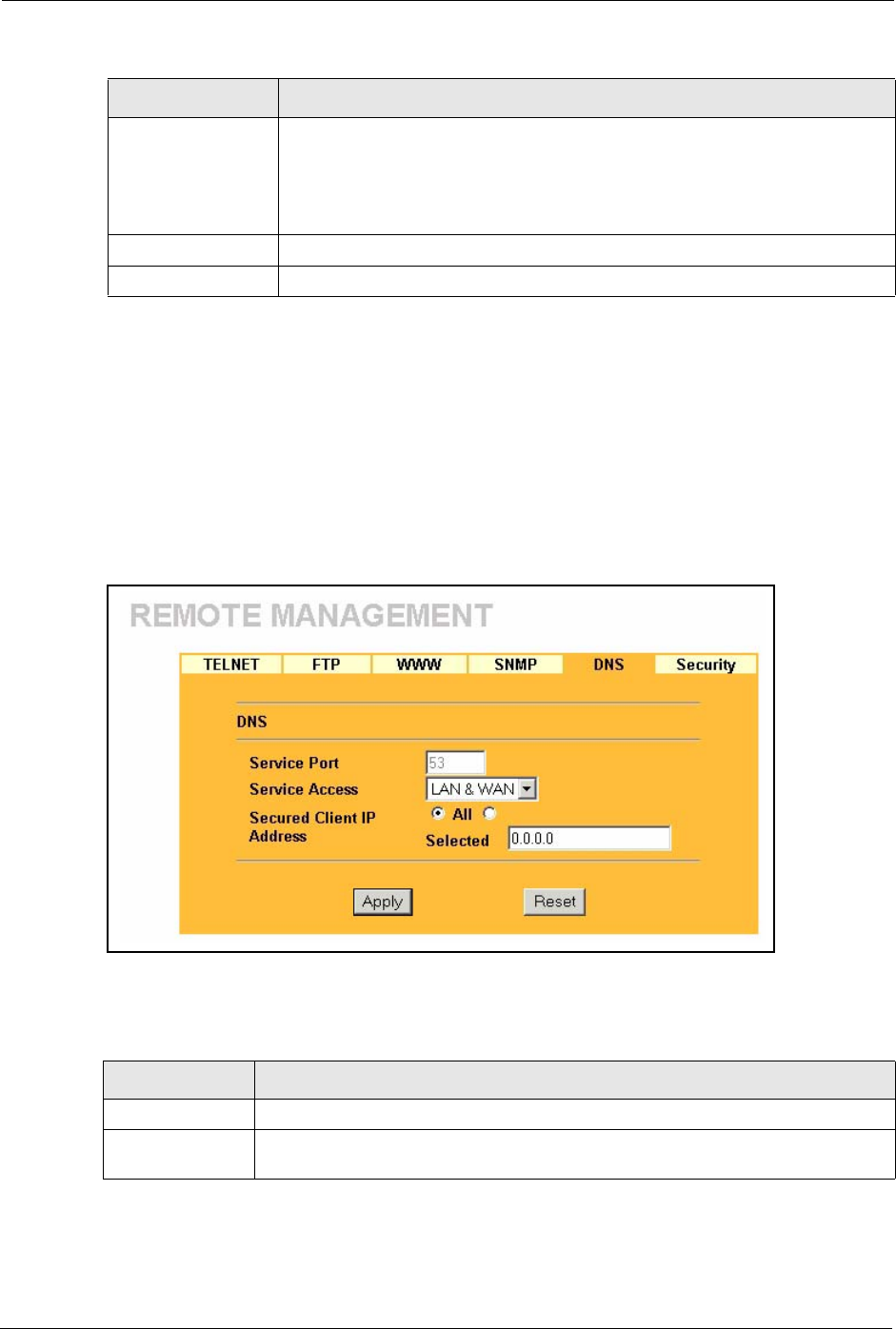

Figure 67 Remote Management: DNS
The following table describes the labels in this screen.
Secured Client IP
Address
A secured client is a “trusted” computer that is allowed to communicate with the
Prestige using this service.
Select All to allow any computer to access the Prestige using this service.
Choose Selected to just allow the computer with the IP address that you specify
to access the Prestige using this service.
Apply Click Apply to save your customized settings and exit this screen.
Reset Click Reset to begin configuring this screen afresh.
Table 50 Remote Management: SNMP
LABEL DESCRIPTION
Table 51 Remote Management: DNS
LABEL DESCRIPTION
Server Port The DNS service port number is 53 and cannot be changed here.
Server Access Select the interface(s) through which a computer may send DNS queries to the
Prestige.
