P-2302R Series User’s Guide
159 Chapter 16 Remote Management Screens
16.1.2 Remote Management and NAT
When NAT is enabled:
• Use the Prestige’s WAN IP address when configuring from the WAN.
• Use the Prestige’s LAN IP address when configuring from the LAN.
16.1.3 System Timeout
There is a default system management idle timeout of five minutes (three hundred seconds).
The Prestige automatically logs you out if the management session remains idle for longer
than this timeout period. The management session does not time out when a statistics screen is
polling. You can change the timeout period in the SYSTEM General screen.
16.2 Configuring Telnet
You can configure your Prestige for remote Telnet access as shown next. The administrator
uses Telnet from a computer on a remote network to access the Prestige.

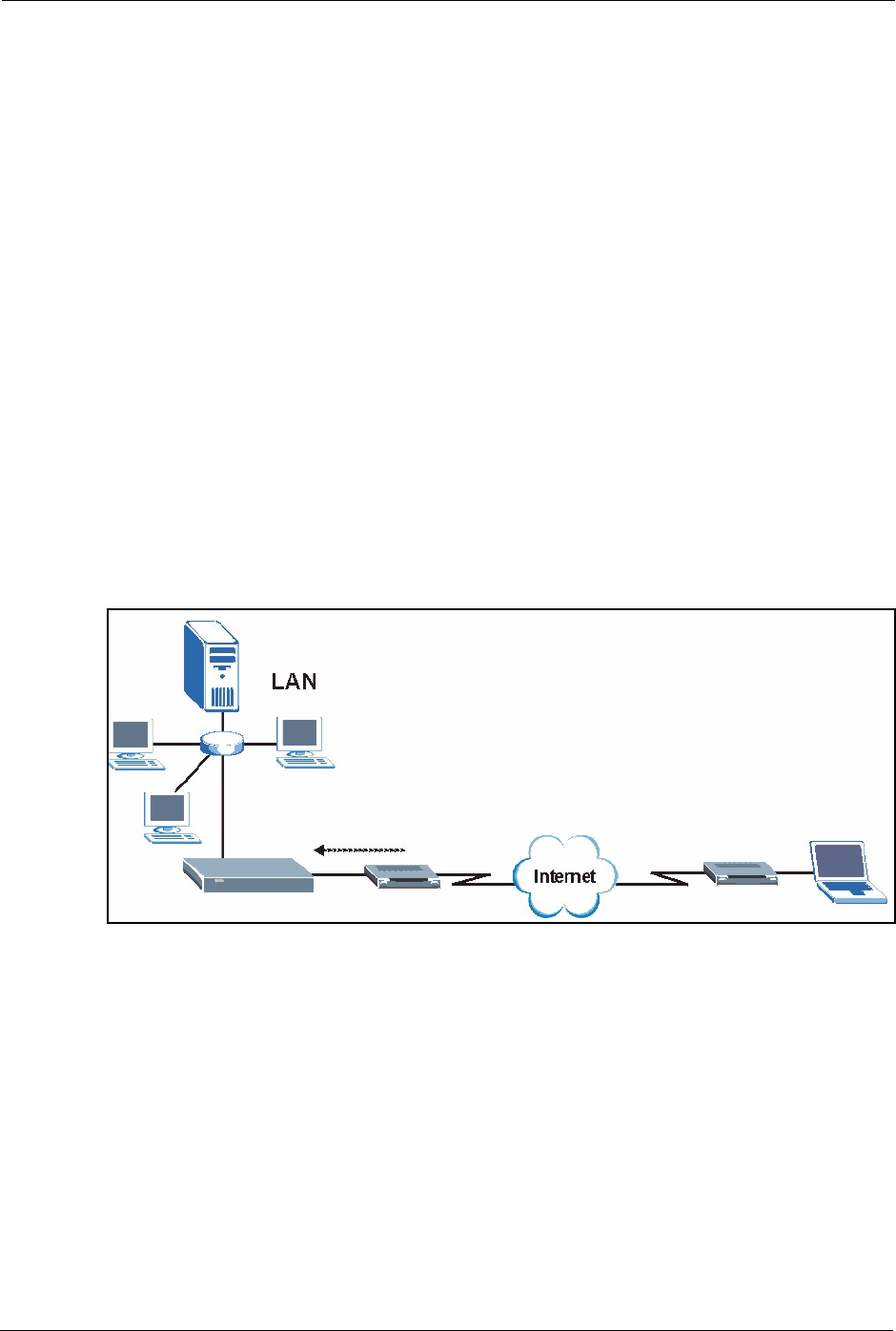

Figure 61 Telnet Configuration on a TCP/IP Network
16.3 Configuring TELNET
Click REMOTE MGMT and the TELNET tab to display the screen as shown.
