Appendix B Setting up Your Computer’s IP Address
P-2900-4HB User’s Guide
106
Macintosh OS 8/9
1
Click the
Apple
menu,
Control Panel
and do
uble-cl
ick
TCP/IP
to open
the
TCP/
IP Control Panel
.
Figure 43

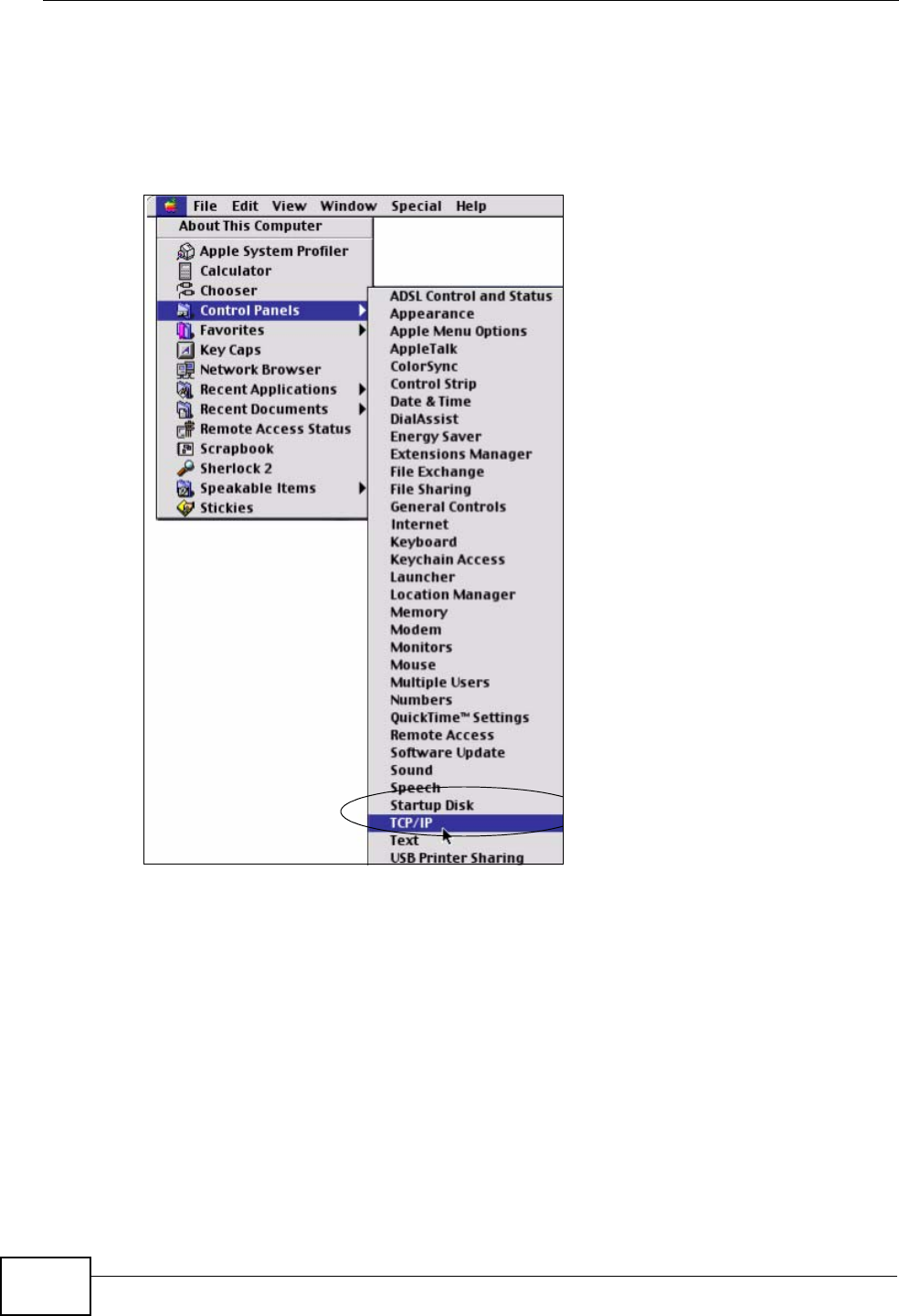

Macintosh OS 8/9: Apple Menu
