ZyAIR G-2000 Plus User’s Guide
Chapter 36 Remote Management 370

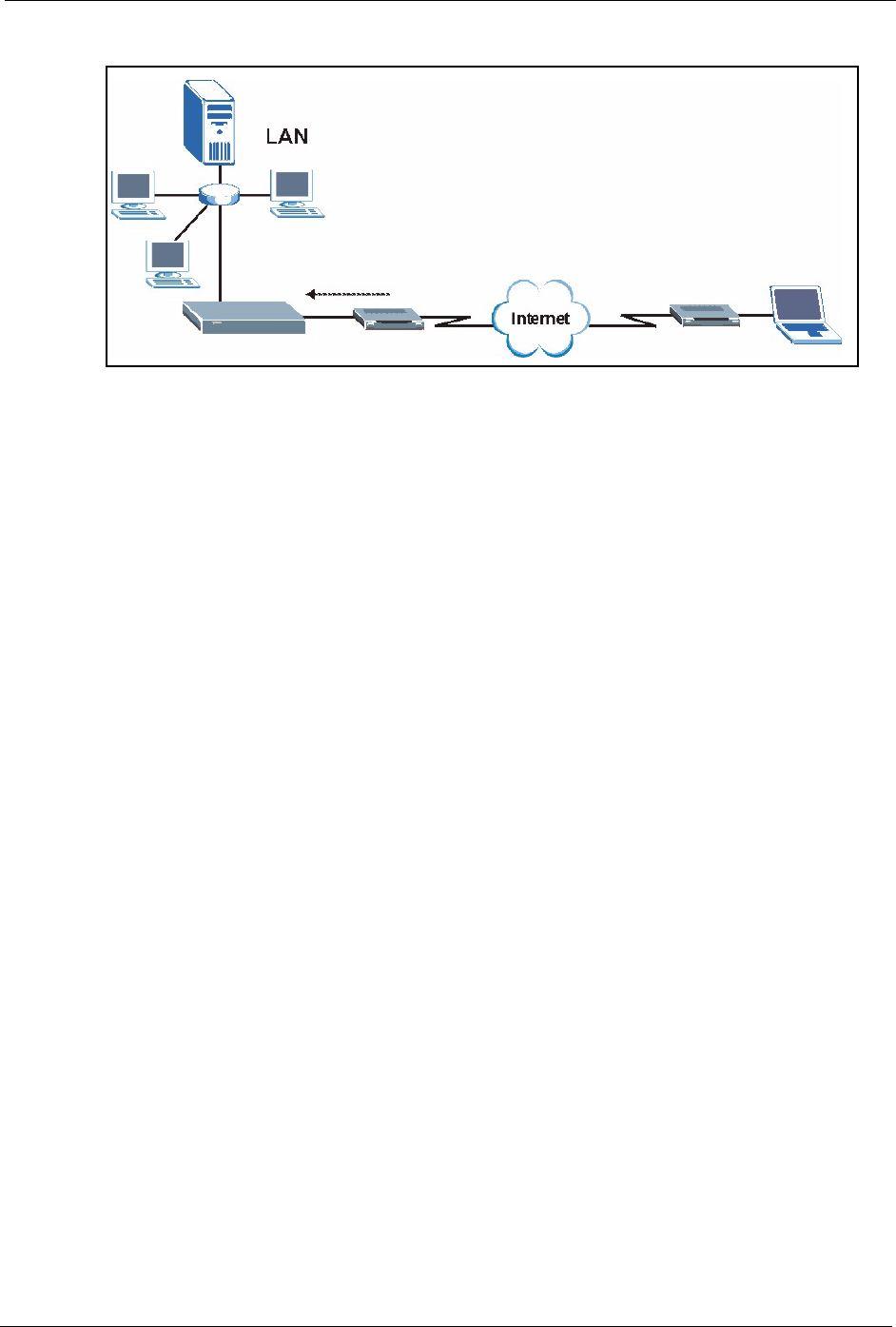

Figure 213 Telnet Configuration on a TCP/IP Network
36.1.2 FTP
You can upload and download ZyAIR firmware and configuration files using FTP. To use this
feature, your computer must have an FTP client.
36.1.3 Web
You can use the ZyAIR’s embedded web configurator for configuration and file management.
See the Online Help for details.
36.1.4 Remote Management Limitations
Remote management over LAN or WAN will not work when:
1 A filter in menu 3.1 (LAN) or in menu 11.5 (WAN) is applied to block a Telnet, FTP or
Web service.
2 You have disabled that service in menu 24.11.
3 The IP address in the Secured Client IP field (menu 24.11) does not match the client IP
address. If it does not match, the ZyAIR will disconnect the session immediately.
4 There is already another remote management session of the same type (Telnet, FTP or
Web) running. You may only have one remote management session of the same type
running at one time.
5 There is a web remote management session running with a Telnet session. A Telnet
session will be disconnected if you begin a web session; it will not begin if there already
is a web session.
36.2 Remote Management and NAT
When NAT is enabled:
