347 Chapter 33 System Information and Diagnosis
2 From this menu, type 4. Diagnostic to open Menu 24.4 – System Maintenance –
Diagnostic.Menu 24.4 System Maintenance : Diagnostic
Menu 24.4 - System Maintenance - Diagnostic
TCP/IP
1. Ping Host
2. WAN DHCP Release
3. WAN DHCP Renewal
4. Internet Setup Test
System
11. Reboot System
Enter Menu Selection Number:
Host IP Address= N/A
33.4.1 WAN DHCP
DHCP functionality can be enabled on the LAN or WAN as shown in LAN & WAN DHCP.
LAN DHCP has already been discussed. The ZyAIR can act either as a WAN DHCP client (IP
Address Assignment field in menu 4 or menu 11.3 is Dynamic and the Encapsulation field
in menu 4 or menu 11 is Ethernet) or None, (when you have a static IP). The WAN Release
and Renewal fields in menu 24.4 conveniently allow you to release and/or renew the assigned
WAN IP address, subnet mask and default gateway in a fashion similar to winipcfg.

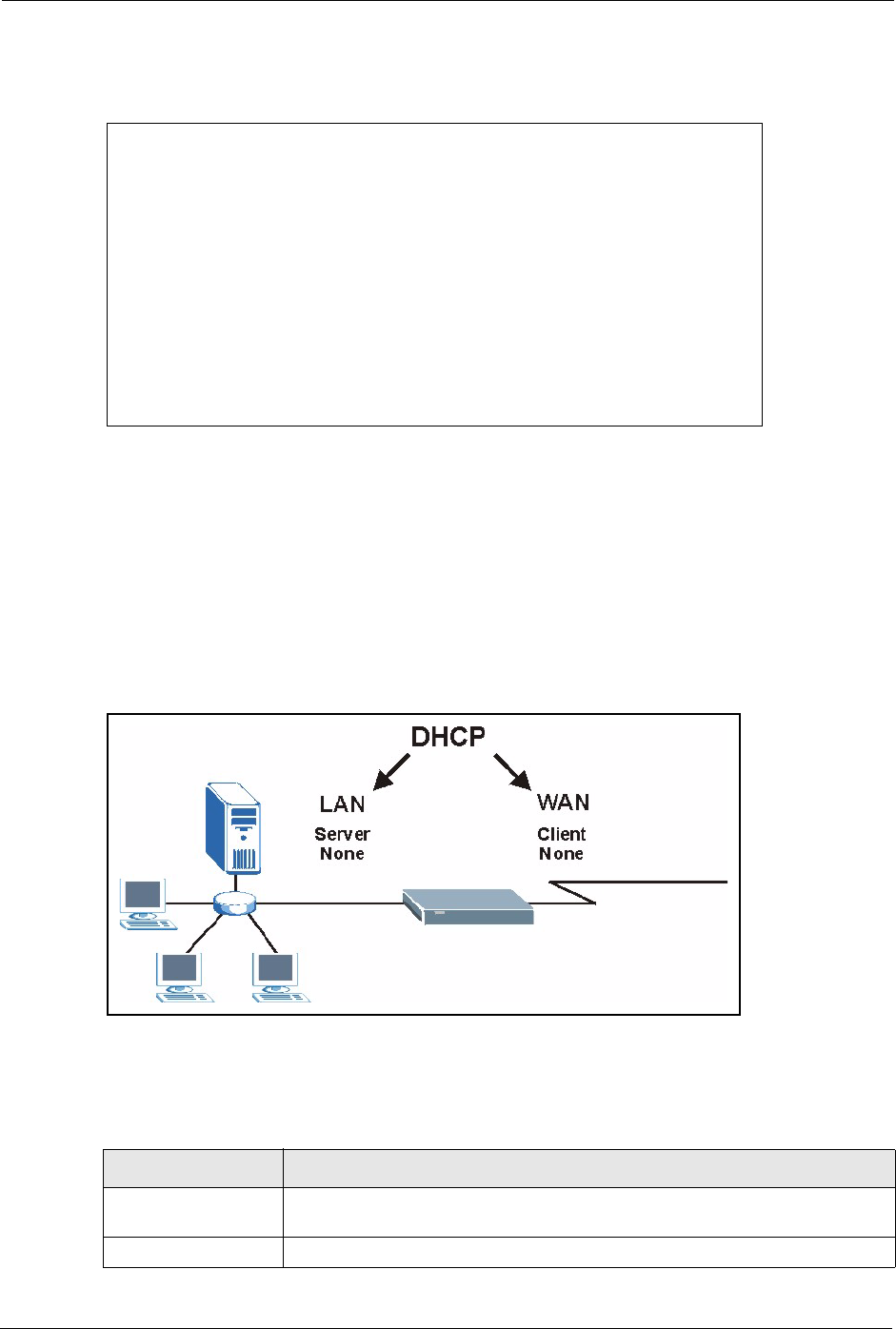

Figure 197 LAN & WAN DHCP
The following table describes the diagnostic tests available in menu 24.4 for your ZyAIR and
associated connections..
Table 118 Menu 24.4 System Maintenance Menu: Diagnostic
FIELD DESCRIPTION
Ping Host Ping the host to see if the links and TCP/IP protocol on both systems are
working.
WAN DHCP Release Release the IP address assigned by the DHCP server.
