ZyAIR G-2000 Plus User’s Guide
237 Chapter 18 Log Screens

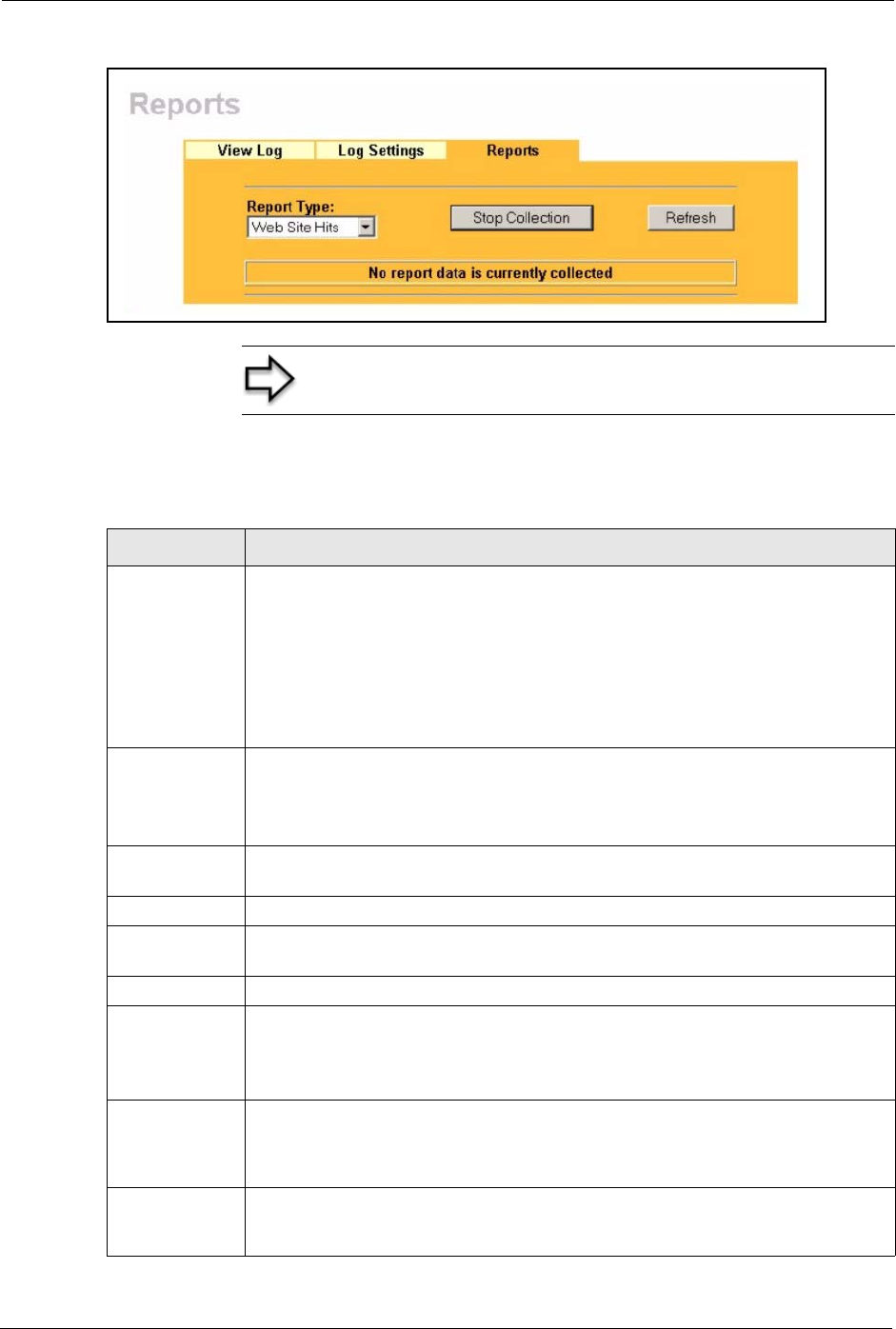

Figure 100 Reports
Note: Enabling the ZyAIR’s reporting function decreases the
overall throughput by about 1 Mbps.
The following table describes the labels in this screen.
Table 75 Reports
LABEL DESCRIPTION
Report Type Use the drop-down list box to select the type of reports to display.
Web Site Hits displays the web sites that have been visited the most often from the
LAN and how many times they have been visited.
Protocol/Port displays the protocols or service ports that have been used the most
and the amount of traffic for the most used protocols or service ports.
LAN IP Address displays the LAN IP addresses to and /or from which the most
traffic has been sent and how much traffic has been sent to and from those IP
addresses.
Start Collection
Stop Collection
The button text shows Start Collection when the ZyAIR is not recording report data
and Stop Collection when the ZyAIR is recording report data.
Click Start Collection to have the ZyAIR record report data.
Click Stop Collection to halt the ZyAIR from recording more data.
Refresh Click Refresh to update the report display. The report also refreshes automatically
when you close and reopen the screen.
# This field displays the index number of an individual web site.
Web Site Web Site displays the web site address(es) that have been visited the most often
from the LAN.
Hits Hits displays the total number of visits to each web site.
Direction This field displays Incoming to denote traffic that is coming in from the WAN to the
LAN.
This field displays Outgoing to denote traffic that is going out from the LAN to the
WAN.
Amount This column lists how much traffic has been sent and/or received for each protocol or
service port. The measurement unit shown (bytes, Kbytes, Mbytes or Gbytes) varies
with the amount of traffic for the particular protocol or service port. The count starts
over at 0 if a protocol or port passes the bytes count limit.
IP Address This column lists the LAN IP addresses to and/or from which the most traffic has
been sent. The LAN IP addresses are listed in descending order with the LAN IP
address to and/or from which the most traffic was sent listed first.
