ZyAIR G-2000 Plus User’s Guide

Chapter 9 WAN 132

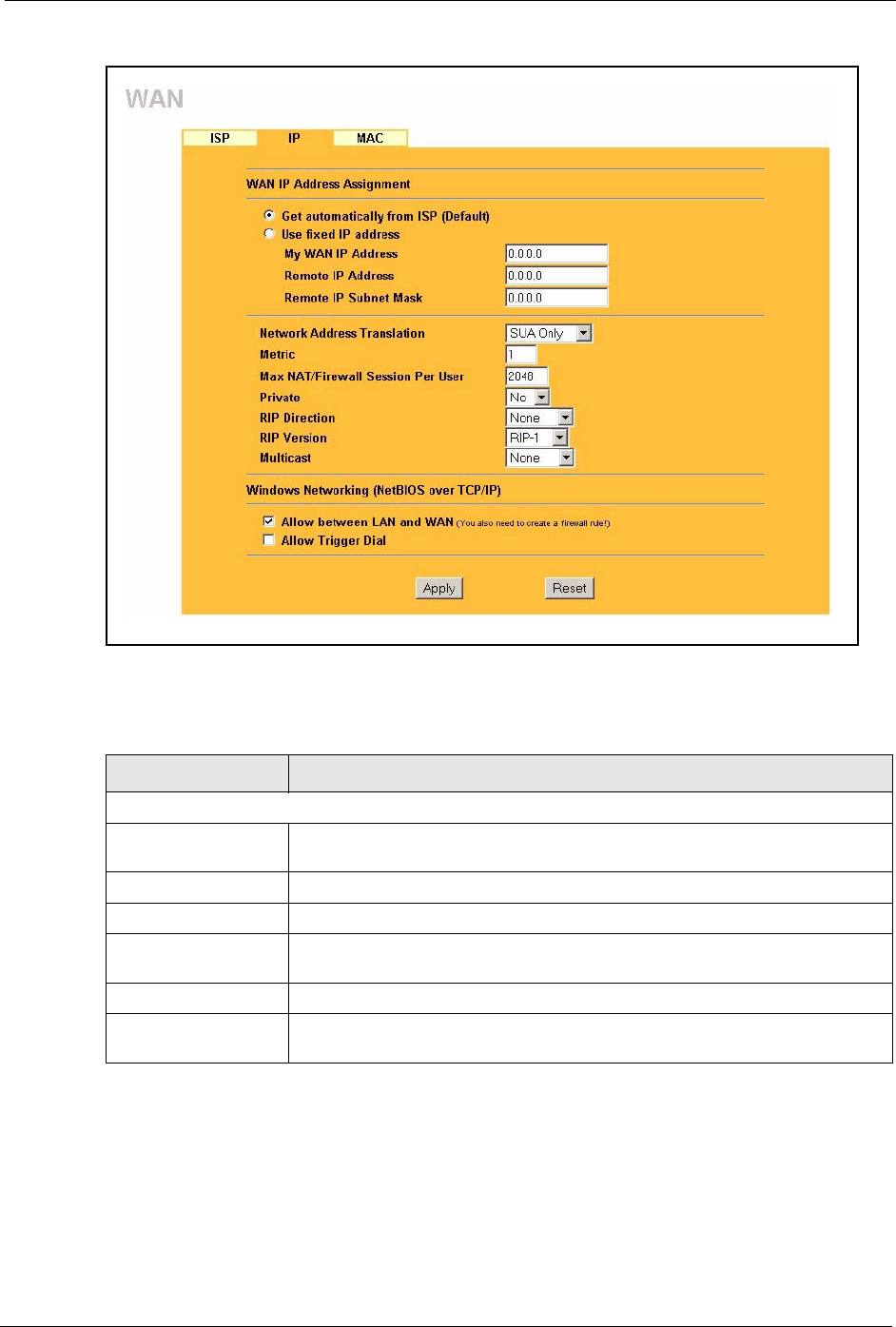

Figure 52 WAN: IP

The following table describes the labels in this screen.

Table 40 WAN: IP

LABEL DESCRIPTION

WAN IP Address Assignment

Get automatically from

ISP

Select this option If your ISP did not assign you a fixed IP address. This is the

default selection.

Use fixed IP address Select this option If the ISP assigned a fixed IP address.

My WAN IP Address Enter your WAN IP address in this field if you selected Use Fixed IP Address.

My WAN IP Subnet

Mask (Ethernet only)

Type your network's IP subnet Mask.

Remote IP Address Enter the Remote IP Address (if your ISP gave you one) in this field.

Gateway/Remote IP

Address

Enter the gateway IP address (if your ISP gave you one) in this field if you

selected Use Fixed IP Address.
