P-660HWP-Dx User’s Guide
35
CHAPTER 21
Tools
This chapter describes how to upload new firmware, manage configuration and restart your P-
660HWP-Dx.
21.1 Firmware Upgrade
Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a
.bin extension, for example, "P-660HWP-Dx.bin". The upload process uses HTTP (Hypertext
Transfer Protocol) and may take up to two minutes. After a successful upload, the system will
reboot.
Only use firmware for your device’s specific model. Refer to the label on the bottom of your
device.
Click Maintenance > Tools to open the Firmware screen. Follow the instructions in this
screen to upload firmware to your P-660HWP-Dx.

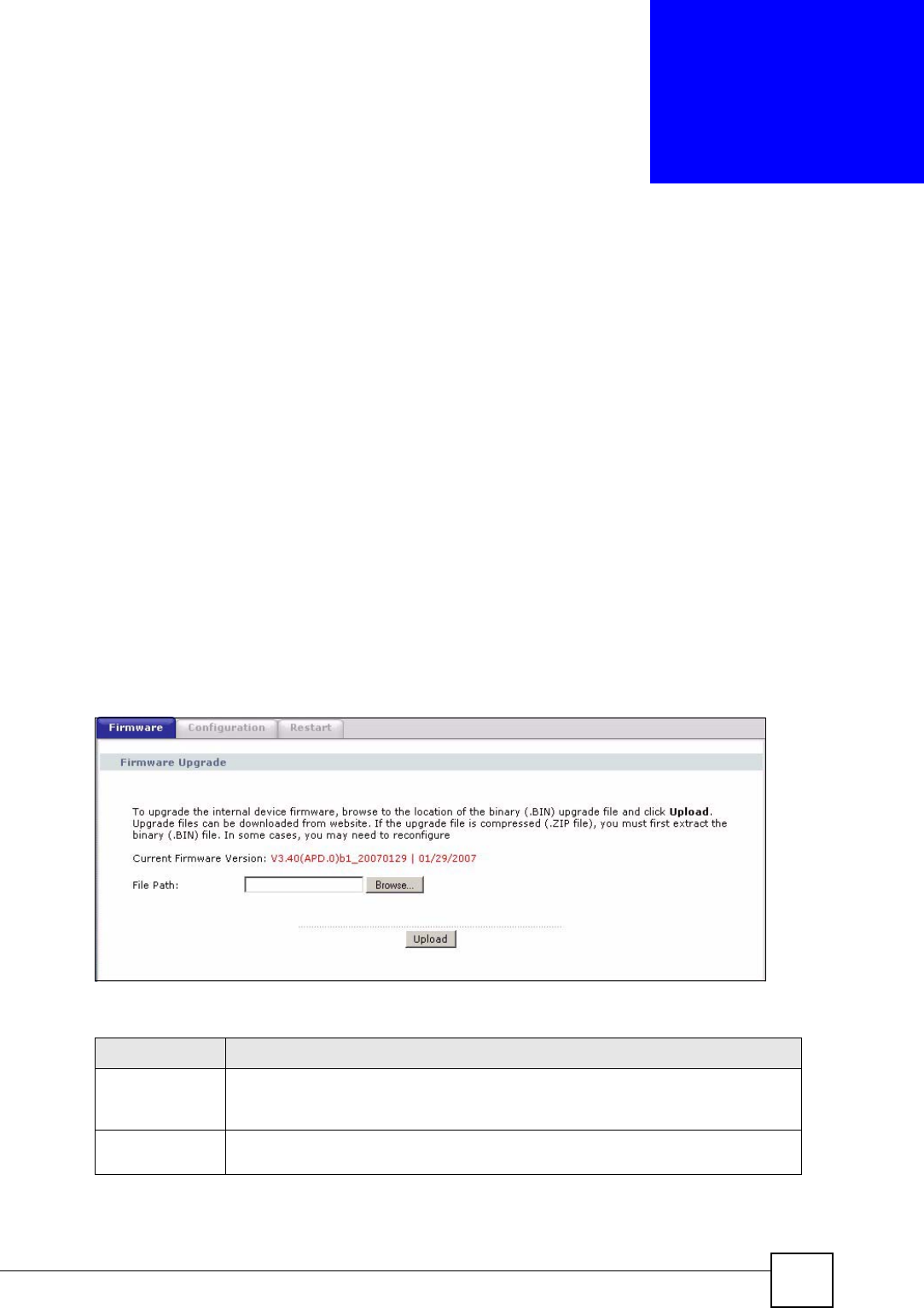

Figure 165 Firmware Upgrade
The following table describes the labels in this screen.
Table 130 Firmware Upgrade
LABEL DESCRIPTION
Current
Firmware
Version
This is the present Firmware version and the date created.
File Path Type in the location of the file you want to upload in this field or click Browse ... to
find it.
