Chapter 19 System
P-660HWP-Dx User’s Guide
36

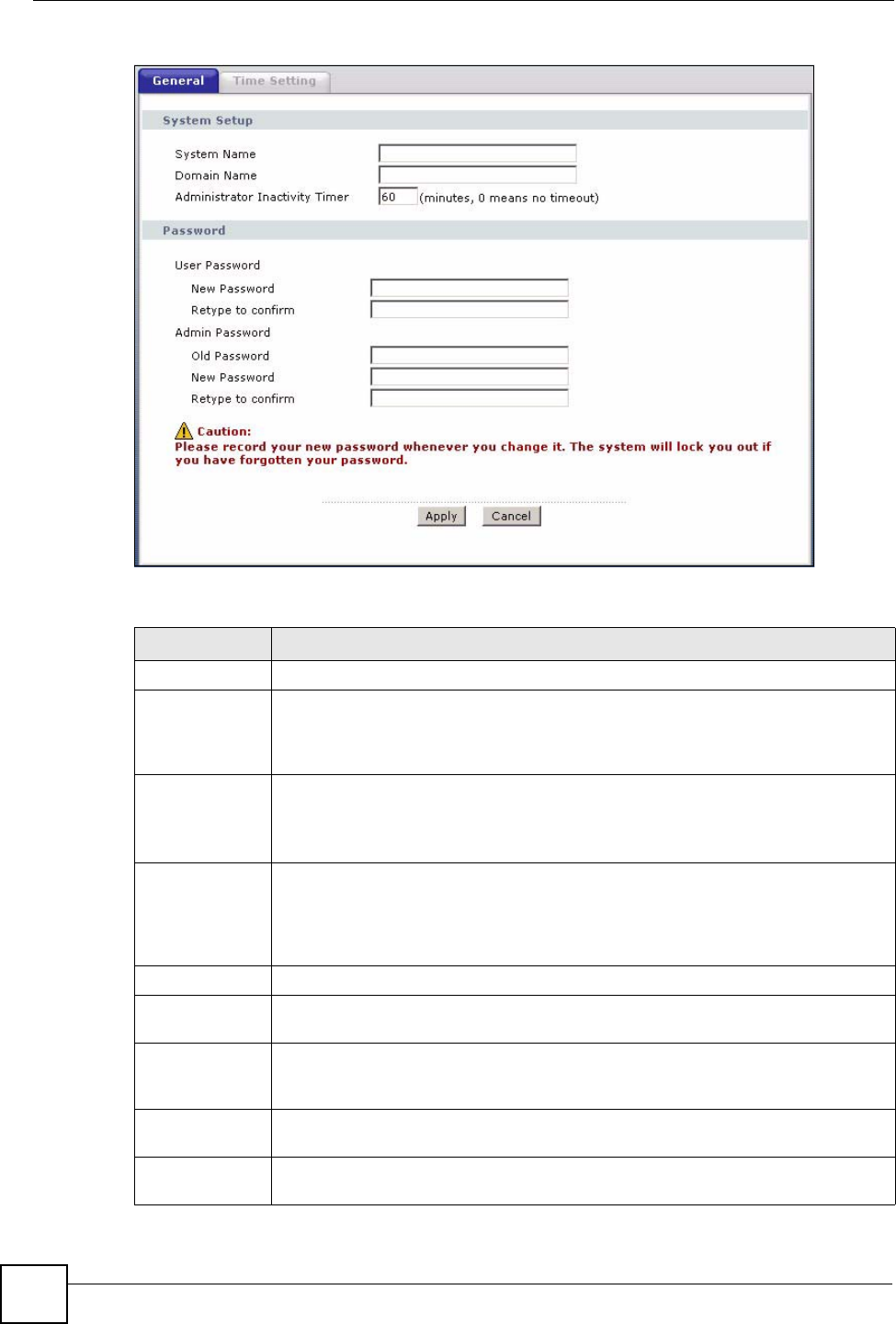

Figure 160 System General Setup
The following table describes the labels in this screen.
Table 107 System General Setup
LABEL DESCRIPTION
General Setup
System Name Choose a descriptive name for identification purposes. It is recommended you enter
your computer’s “Computer name” in this field. This name can be up to 30
alphanumeric characters long. Spaces are not allowed, but dashes “-” and
underscores "_" are accepted.
Domain Name Enter the domain name (if you know it) here. If you leave this field blank, the ISP
may assign a domain name via DHCP.
The domain name entered by you is given priority over the ISP assigned domain
name.
Administrator
Inactivity Timer
Type how many minutes a management session can be left idle before the session
times out. The default is 5 minutes. After it times out you have to log in with your
password again. Very long idle timeouts may have security risks. A value of "0"
means a management session never times out, no matter how long it has been left
idle (not recommended).
Password
User Password If you log in with the user password, you can only view the P-660HWP-Dx status.
The default user password is user.
New Password
Type your new system password (up to 30 characters). Note that as you type a
password, the screen displays a (*) for each character you type. After you change
the password, use the new password to access the P-660HWP-Dx.
Retype to
Confirm
Type the new password again for confirmation.
Admin
Password
If you log in with the admin password, you can configure the advanced features as
well as the wizard setup on the P-660HWP-Dx.
