Chapter 13 Certificates
P-660HWP-Dx User’s Guide
47
13.10 Trusted CA Details
Click Security > Certificates > Trusted CAs to open the Trusted CAs screen. Click the edit
icon to open the Trusted CA Details screen. Use this screen to view in-depth information
about the certification authority’s certificate, change the certificate’s name and set whether or
not you want the P-660HWP-Dx to check a certification authority’s list of revoked certificates
before trusting a certificate issued by the certification authority.

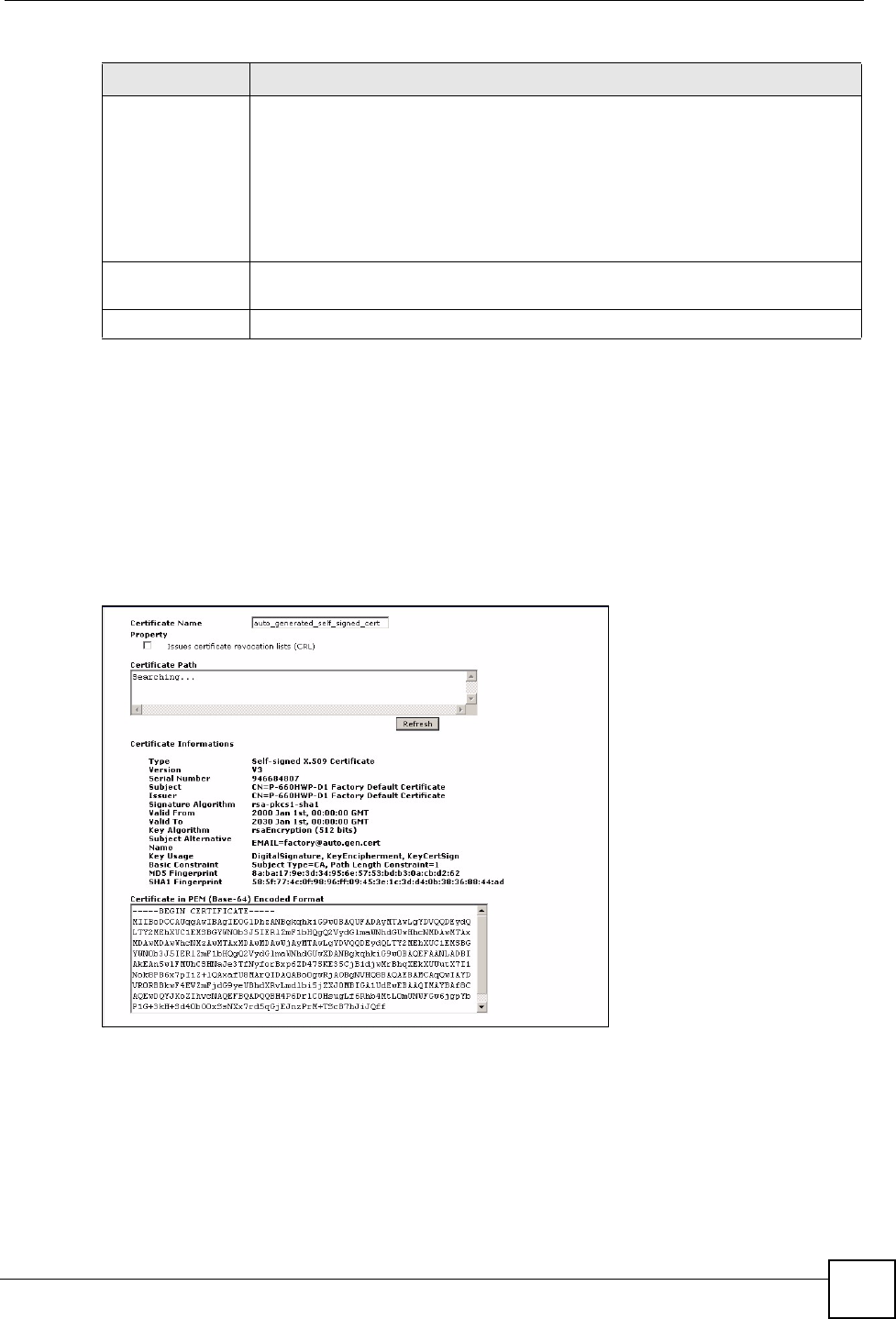

Figure 119 Security > Certificates > Trusted CAs > Details
Modify Click the details icon to open a screen with an in-depth list of information about the
certificate.
Use the export icon to save the certificate to a computer. Click the icon and then
Save in the File Download screen. The Save As screen opens, browse to the
location that you want to use and click Save.
Click the delete icon to remove the certificate. A window displays asking you to
confirm that you want to delete the certificates. Note that subsequent certificates
move up by one when you take this action.
Import Click Import to open a screen where you can save the certificate of a certification
authority that you trust, from your computer to the P-660HWP-Dx.
Refresh Click Refresh to display the current validity status of the certificates.
Table 75 Security > Certificates > Trusted CAs (continued)
LABEL DESCRIPTION
