Chapter 13 Certificates
P-660HWP-Dx User’s Guide
37

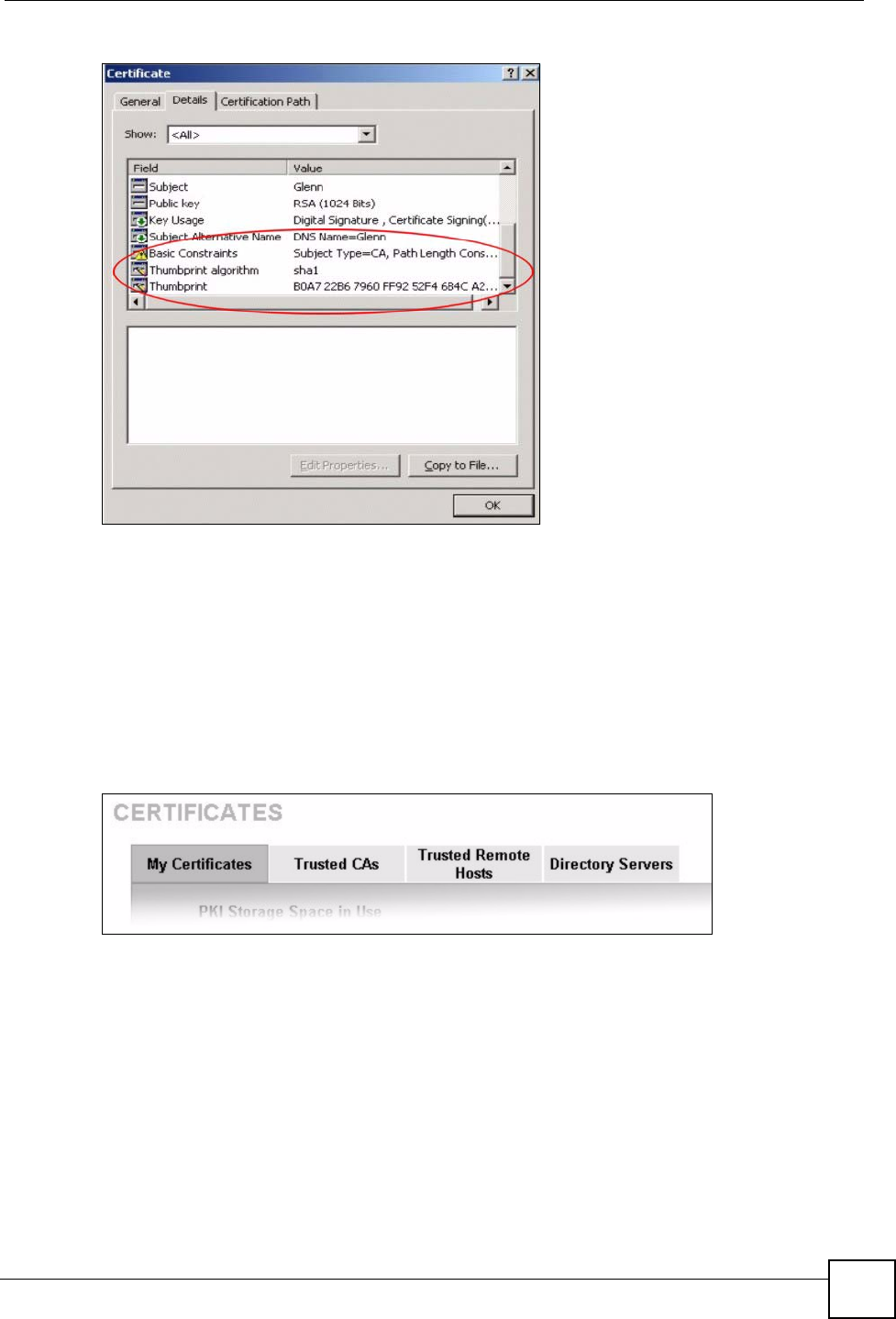

Figure 113 Certificate Details
4 Use a secure method to verify that the certificate owner has the same information in the
Thumbprint Algorithm and Thumbprint fields. The secure method may very based
on your situation. Possible examples would be over the telephone or through an HTTPS
connection.
13.4 Configuration Summary
This section summarizes how to manage certificates on the P-660HWP-Dx.
Figure 114 Certificate Configuration Overview
Use the My Certificate screens to generate and export self-signed certificates or certification
requests and import the P-660HWP-Dx’s CA-signed certificates.
Use the Trusted CA screens to save the certificates of trusted CAs to the P-660HWP-Dx. You
can also export the certificates to a computer.
Use the Trusted Remote Hosts screens to import self-signed certificates from trusted remote
hosts.
Use the Directory Servers screen to configure a list of addresses of directory servers (that
contain lists of valid and revoked certificates).
