Chapter 7 Wireless LAN
P-660HWP-Dx User’s Guide
48
" If you hold in the RESET button too long, the device will reset to the factory
defaults!
7.5.1.1.2 Web Configurator
Click the Network > Wireless LAN > OTIST. The following screen displays.

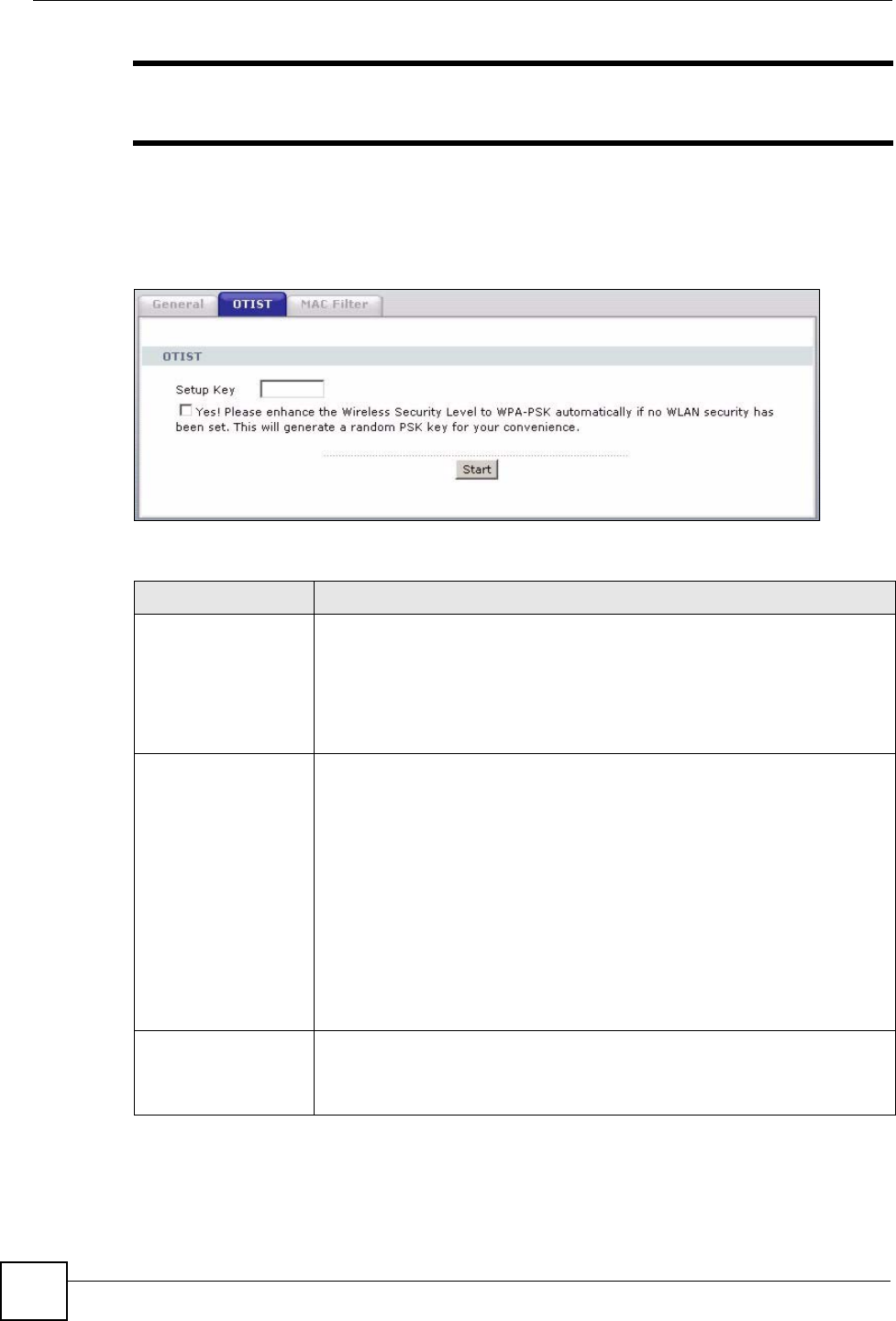

Figure 68 OTIST
The following table describes the labels in this screen.
7.5.1.2 Wireless Client
Start the ZyXEL utility and click the Adapter tab. Select the OTIST check box, enter the
same Setup Key as your AP’s and click Save.
Table 38 OTIST
LABEL DESCRIPTION
Setup Key Type an OTIST Setup Key of exactly eight English keyboard characters in
length.
The default OTIST setup key is "01234567".
Note: If you change the OTIST setup key here, you must
also make the same change on the wireless client(s).
Yes! If you want OTIST to automatically generate a WPA-PSK, you must:
• Change your security to any security other than WPA-PSK in the Wireless
LAN > General screen.
• Select the Yes! checkbox in the OTIST screen and click Start.
• The wireless screen displays an auto generated WPA-PSK and is now in
WPA-PSK security mode.
The WPA-PSK security settings are assigned to the wireless client when you
start OTIST.
Note: If you already have a WPA-PSK configured in the
Wireless LAN > General screen, and you run OTIST
with Yes! selected, OTIST will use the existing WPA-
PSK.
Start Click Start to encrypt the wireless security data using the setup key and have
the P-660HWP-Dx set the wireless client(s) to use the same wireless settings
as the P-660HWP-Dx. You must also activate and start OTIST on the wireless
client(s) all within three minutes.
