Chapter 7 Wireless LAN
P-660HWP-Dx User’s Guide
40

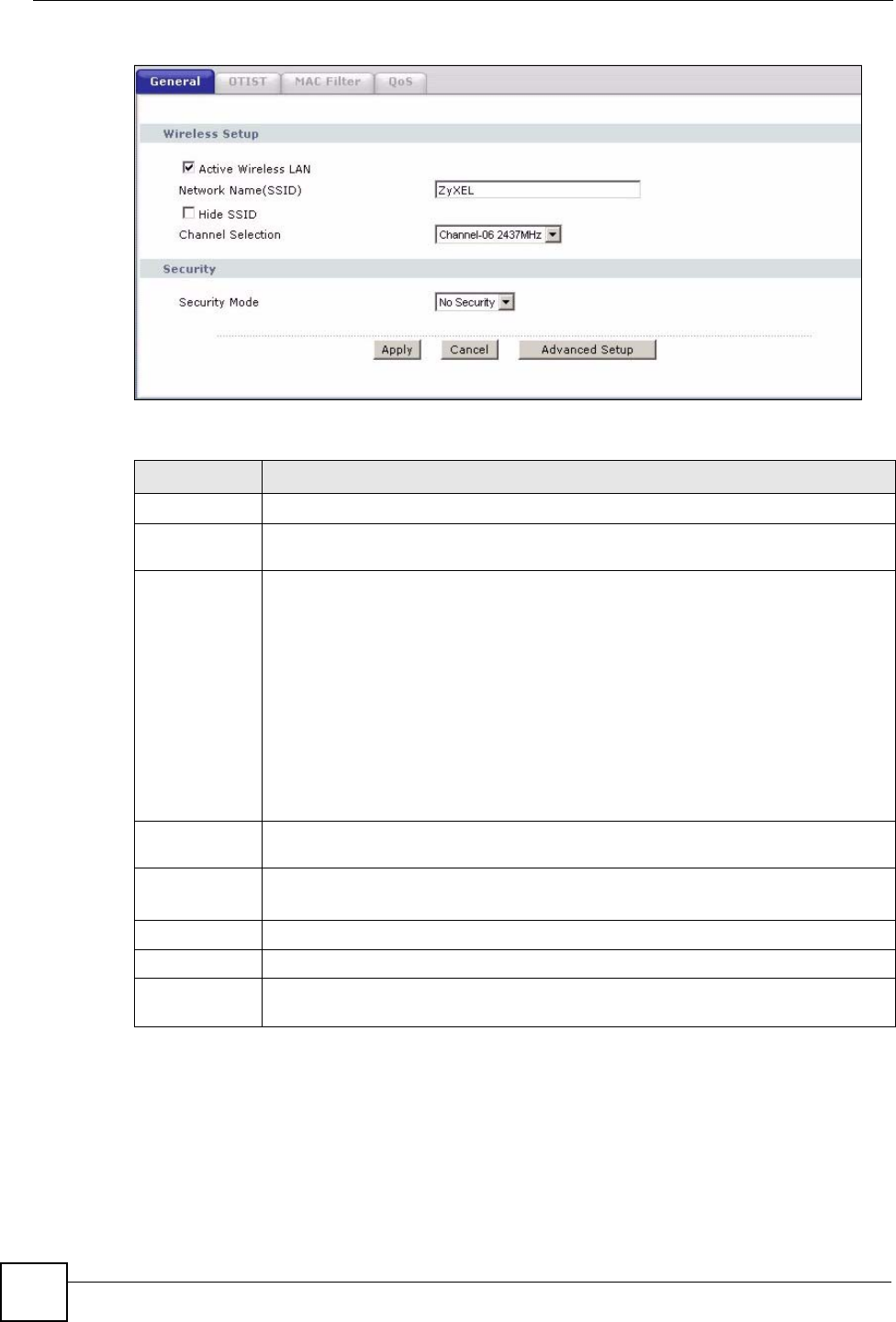

Figure 62 Wireless LAN: General
The following table describes the general wireless LAN labels in this screen.
See the rest of this chapter for information on the other labels in this screen.
7.4.1 No Security
Select No Security to allow wireless clients to communicate with the access points without
any data encryption.
Table 32 Wireless LAN: General
LABEL DESCRIPTION
Wireless Setup
Active Wireless
LAN
Click the check box to activate wireless LAN.
Network Name
(SSID)
(Service Set IDentity) The SSID identifies the Service Set with which a wireless client
is associated. Wireless clients associating to the access point (AP) must have the
same SSID. Enter a descriptive name (up to 32 printable 7-bit English keyboard
characters) for the wireless LAN.
Note: If you are configuring the P-660HWP-Dx from a computer
connected to the wireless LAN and you change the P-
660HWP-Dx’s SSID or WEP settings, you will lose your
wireless connection when you press Apply to confirm.
You must then change the wireless settings of your
computer to match the P-660HWP-Dx’s new settings.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through scanning using a site survey tool.
Channel
Selection
Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box.
Apply Click Apply to save your changes to the P-660HWP-Dx.
Cancel Click Cancel to reload the previous configuration for this screen.
Advanced
Setup
Click Advanced Setup to display the Wireless Advanced Setup screen and edit
more details of your WLAN setup.
