Z1346 Wall Faucet
TAG _______
Rev. D Date: 10/21/09 C.N. No. 110353

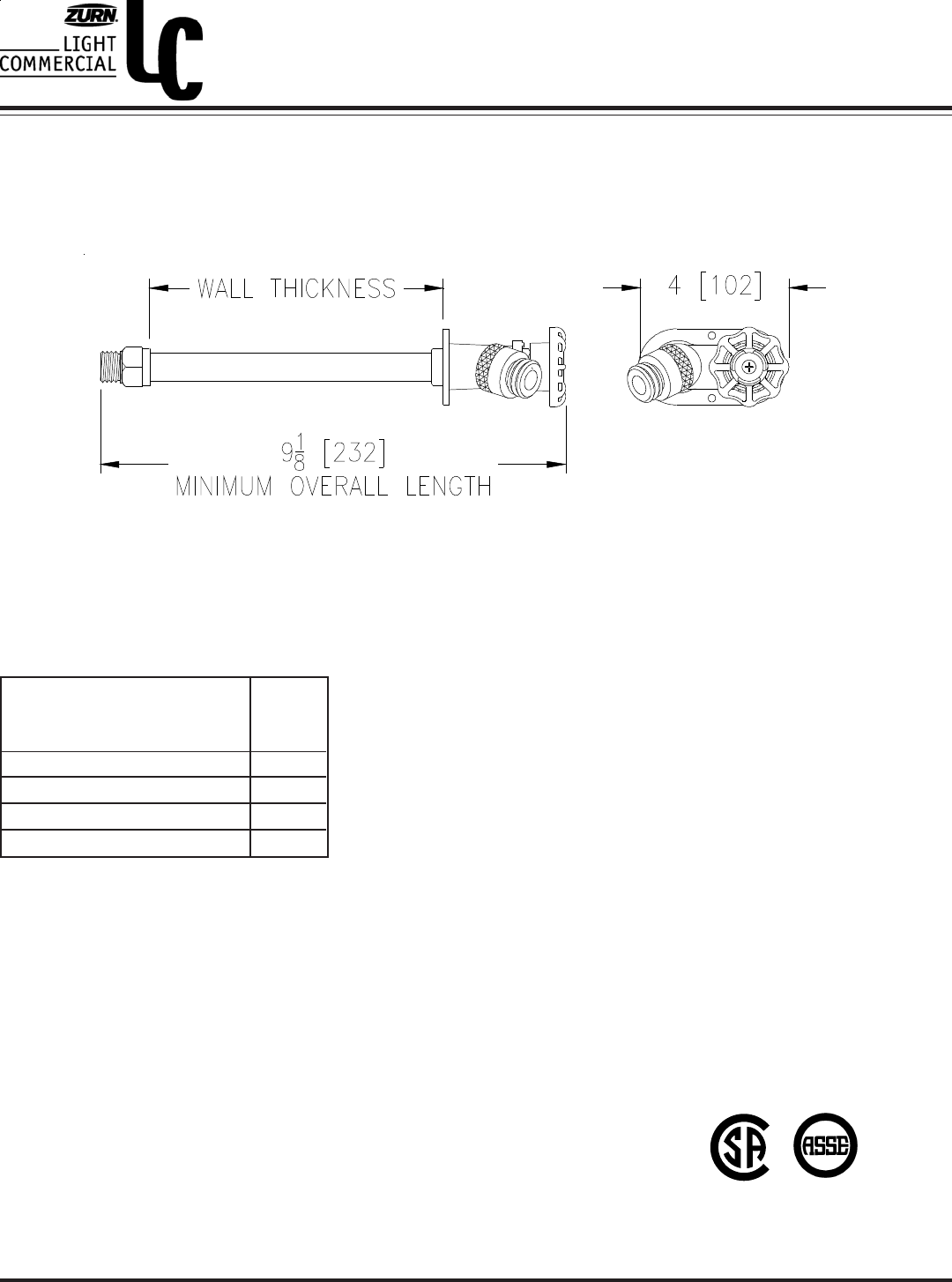

Dwg. No. 67402 Product No. Z1346
ENGINEERING SPECIFICATION: Z1346
Exposed non-freeze anti-siphon automatic draining wall faucet complete with
exterior chrome finish, brass casing, all bronze interior parts, Z1399-VB anti-
siphon integral vacuum breaker, operating rod with free-floating compression
closure valve, replaceable seat washer, combination 1/2 [13] female solder
inlet and 1/2 [13] male IP inlet connection standard, and 3/4 [19] male hose
connection (Conform to ASME B1.20.7).
OPTIONS (Check/specify appropriate options)
SUFFIXES
____ -CP3 3/4 [19] Male Pipe Thread x 3/4 [19] Female Solder
____ -LK Loose Key
____ -PX 1/2 [13] PEX Tube Fitting
____ -RK Hydrant Parts Repair Kit
(Hose Connection Vacuum Breaker)
1019-A
1011
4-6 [102-152] 2 [1]
8-10-12 [203-254-305] 3 [1]
14-16-18 [356-406-457] 4 [2]
20-22-24 [508-559-610] 5 [2]
Approx.
Wt. Lbs.
[kg]
Wall
Thickness In
Inches
