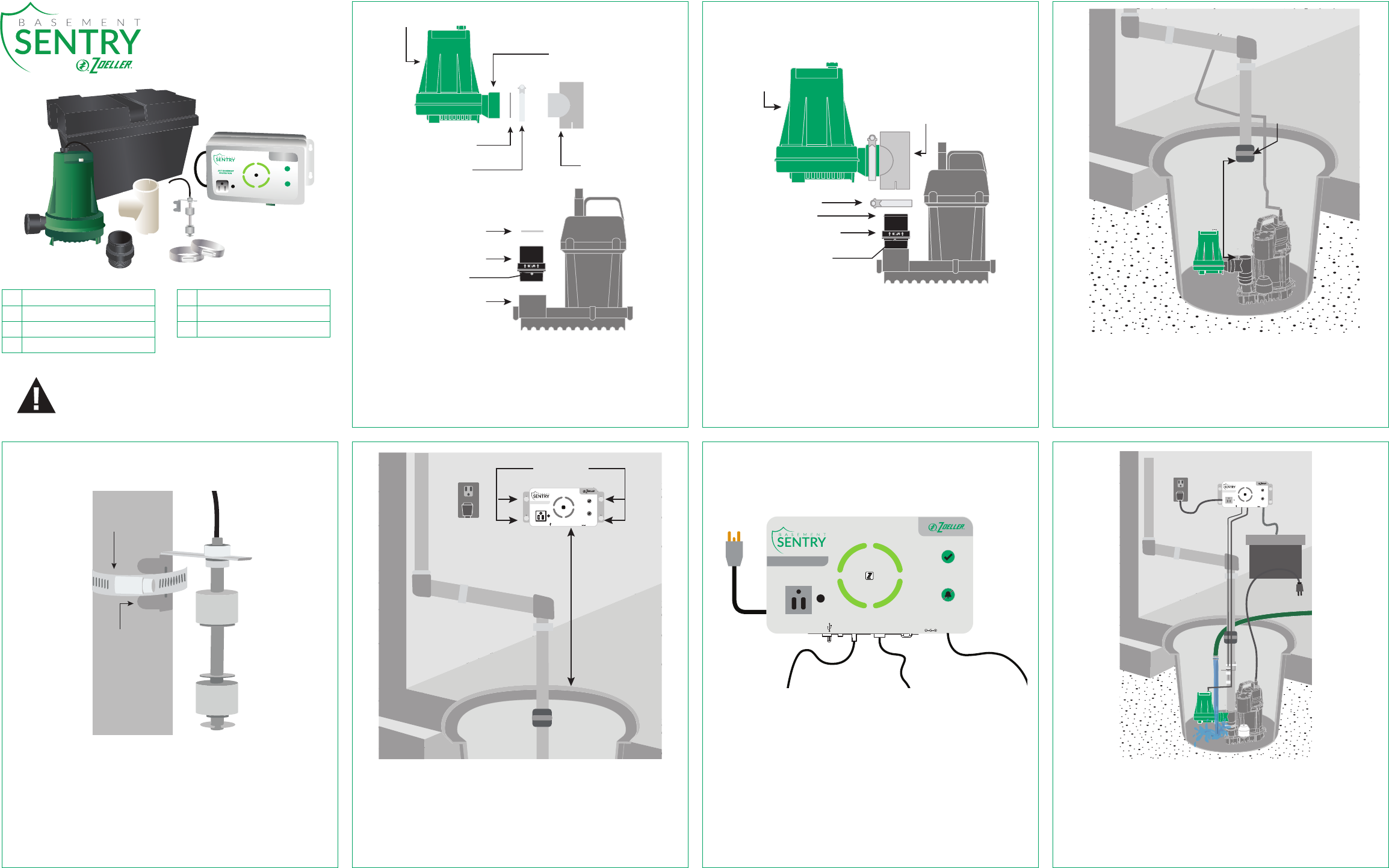

How to Guide

1. Slip the included stainless steel clamp over
the backup pump discharge. Press the backup
pump into the tee. Tighten the clamp. Thread
the check valve into the discharge of the
primary pump. Hand tighten.
3. Measure the connection from the tee to
discharge piping and cut 1-1/2-in Sched 40
PVC to this size. Install 1-1/2-in ex coupling
or union between pipe connected to the pump
and the discharge piping.
4. Install the dual oat assembly on the discharge
piping so the ‘on’ level of the lower oat is
above the ‘on’ position of the primary pump.
Attach the oat to the pipe with the bracket and
stainless steel clamp Be sure the oats are free
to move up and down without any interference.
6. Place the battery inside the battery box and
connect the leads from the controller to the
battery terminals. Connect positive (+) lead
to positive terminal on the battery and black
negative (-) lead to the negative battery
terminal.
Backup
Pump
Discharge tee
Clamp
O-Ring
Pump
Discharge
Measure
distance
1-1/2-in flex
coupling or
union
Clamp
Mounting
Bracket
AC
POWER
FLOAT
STATUS
BATTERY
DC
PUMP
SILENCE
TEST
24/7 BASEMENT
PROTECTION
USB
RESET FLOAT
DC
PUMP
FUSE
30 AMP
by
FW2065 A
1-800-584-8089
BasementSentry.com
DC POWER
+ 15V DC 1.6A
PLATINUM
From float
From
backup
pump
From battery
WiFi ENABLED
BACK-UP
SUMP PUMP
MODEL # STBB300
BY
BasementSentry.com Toll Free Help Line: 1-800-584-8089
PN 156412 A SW1580 A
A
B
C
D
2. Slide the stainless steel clamp over the check
valve and slide the tee (slit end down) over
the check valve. Tighten clamp over the tee to
secure the check valve.
Check valve
assembly
Clamp
Tee
Backup
Pump
O-Ring
Weep hole
SEE INSTRUCTION MANUAL FOR
IMPORTANT SAFETY WARNINGS
AND ADDITIONAL INFORMATION.
A 12V Pump with o-ring
B Controller
C Dual Float Switch
D Check Valve with o-ring
E Tee Fitting
F Pipe Clamps
G Battery Box
F
G
E
Check valve
assembly
Primary Pump
Discharge
O-Ring
Weep hole
5. Use the included anchors to install the
controller. For best cooling, attach to wall. The
controller must be installed at least 3 ft. above
the sump pit. See separate instructions for WiFi
setup.
AC
POWER
FLOAT
STATUS
BATTERY
DC
PUMP
SILENCE
TEST
24/7 BASEMENT
PROTECTION
USB
RESET FLOAT
DC
PUMP
FUSE
30 AMP
by
1-800-584-8089
BasementSentry.com
DC POWER
+ 15V DC 1.6A
Controller
Minimum
3 ft.
Sump
Basin
Anchors
7. Plug the controller into a GFCI-protected 115V
outlet. Test for backup pump operation by
adding water to the sump basin. Reconnect
power to the primary sump pump by plugging
into the receptacle on the front of the controller.
AC
POWER
FLOAT
STATUS
BATTERY
DC
PUMP
SILENCE
TEST
24/7 BASEMENT
PROTECTION
USB
RESET FLOAT
DC
PUMP
FUSE
30 AMP
by
1-800-584-8089
BasementSentry.com
DC POWER
+ 15V DC 1.6A
GFCI Outlet
Zoeller® is a registered trademark of Zoeller Co. All Rights Reserved.
