Operating instructions
6
INSTALLATION
Tools required before you begin
Before you begin installing your Ei chlorine generator please check you have
the right tools and a suitable location to install the Ei. Please also ensure you
have read and understood the General Warnings section, in the front pages of
this brochure.
A cordless drill (a power drill is ok).
A 6mm hammer drill bit if you need to drill into
brick or concrete.
A pencil or marking pen.
A philips head screwdriver or bit (for the drill).
Ei must be installed on a straight length of
horizontal pipe on the return line (after all other
accessories). The Ei should be last.
A power point needs to be located no more that
1.5M away from where you mount the power pack.
If attaching to a post, you must fix a waterproof
panel to the post first, measuring 350 x 250mm.
1)
2)
3)
4)
5)
6)
7)

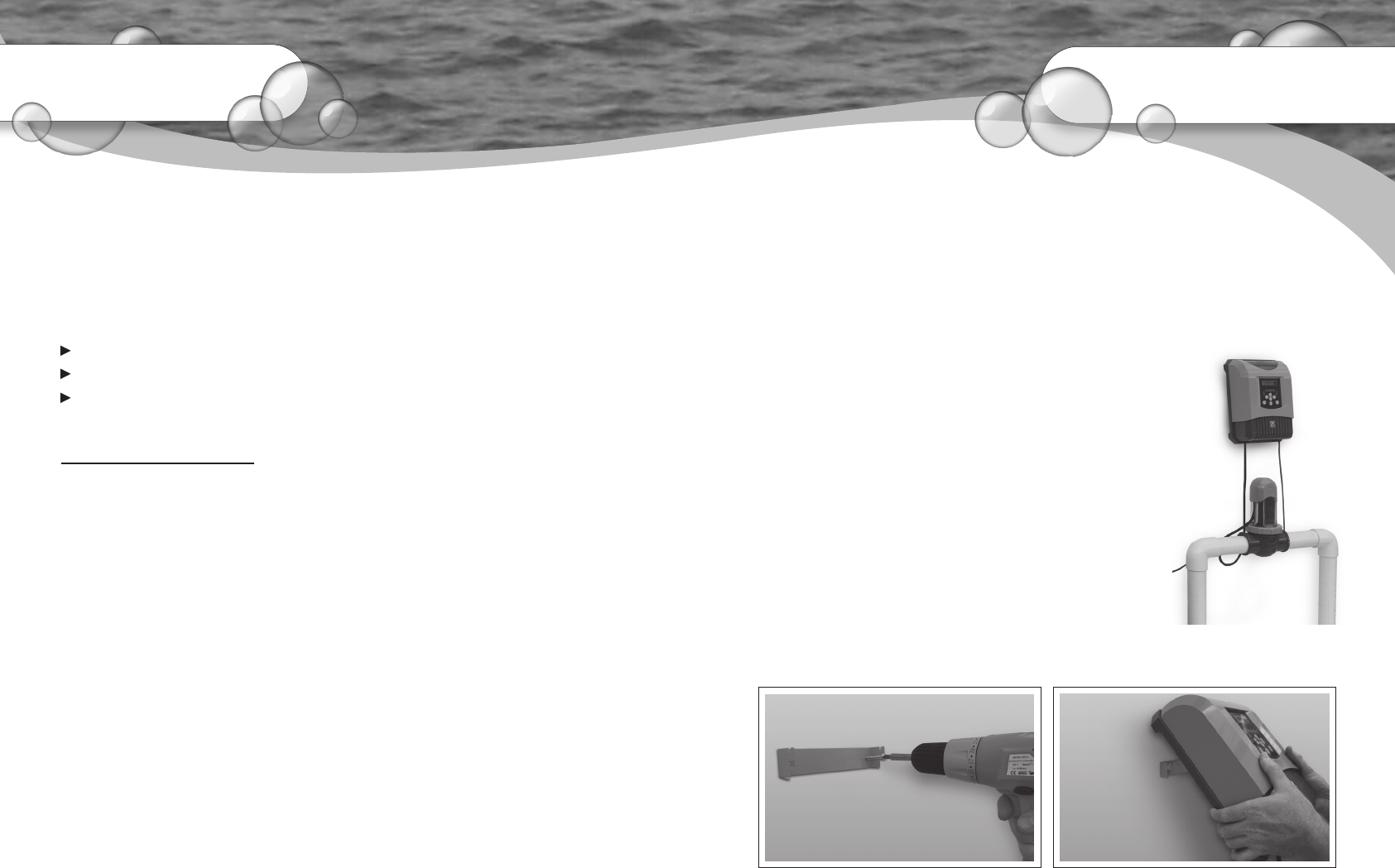

1) Screw the power pack bracket into
position ensuring it is no more than
1.5m from a power point
2) Position the power pack in place
by aligning the bracket with the
corresponding through holes
Mounting the control unit
The Ei is fitted with a long life battery. This battery should last in
excess of 500 hours without the mains being connected. The battery will retain
ALL settings in the event of a power failure.
In addition the Microprocessor in the unit will retain some settings
permanently, in the event of the battery going flat or being replaced:
- Operating hours
- Cell hours
- Controller setting
ERRORS / WARNINGS
NO FLOW
Diagnosis: Insufficient water flow in the cell.
This could mean the circulation pump has ceased to function, or the filter
needs cleaning. The chlorine output will be turned off at this time.
CHECK SALT
Diagnosis: Salt level is between 3000 and 4000 ppm, depending on the
water temperature. Always maintain a salt level above 4000ppm. If you don’t
know what your salt level is or how to test it, consult your local pool care
professional.
OUTPUT FAULT
Diagnosis: There could be a problem with the power supply. Turn power off at
the power point and consult your local pool care professional.
BACKUP
BATTERY
17
