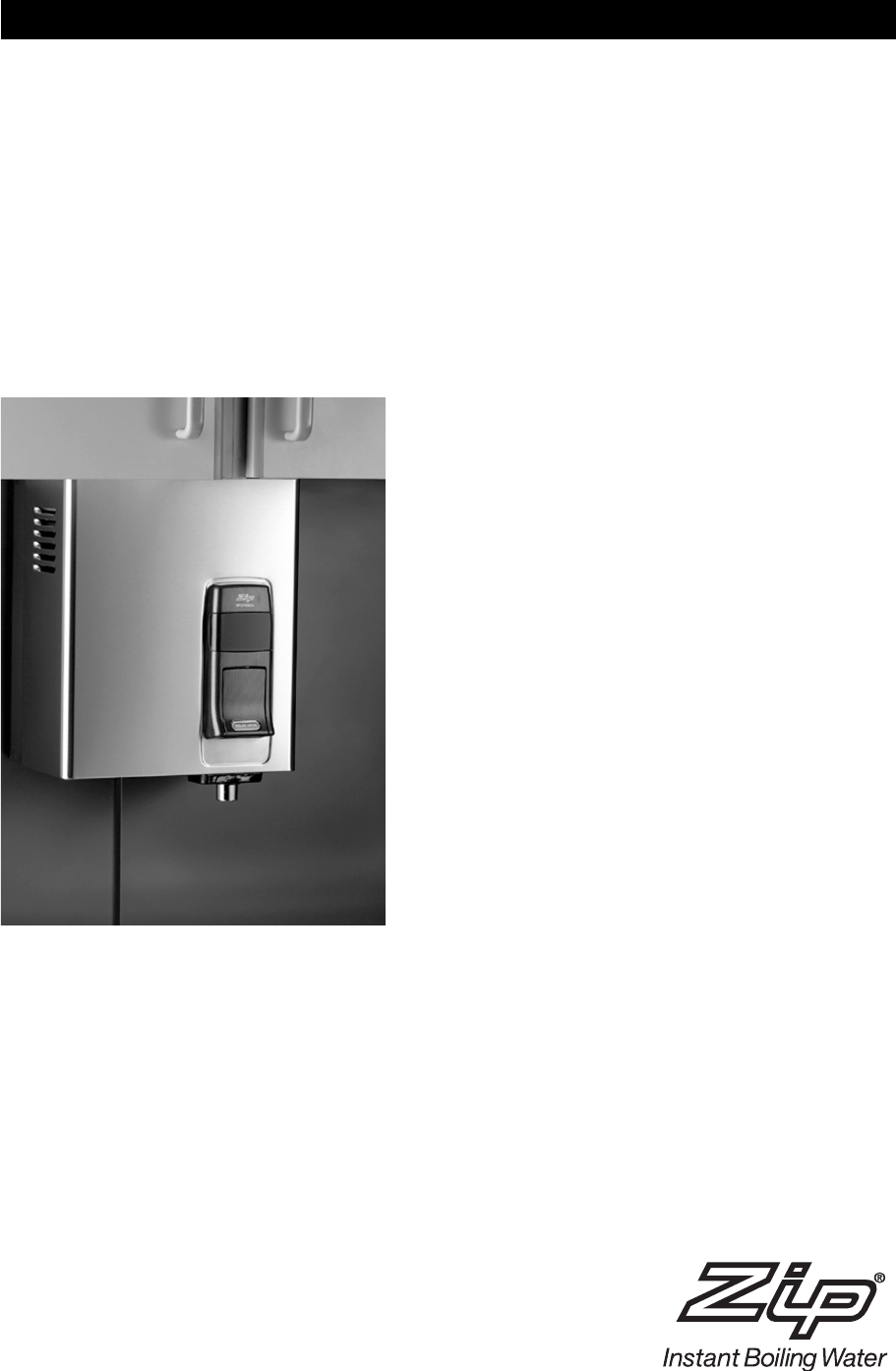

Installation and Operating Instructions ® Zip Hydroboil Filtered instant boiling water 01512 01511 03512 03511 05512 05511 07512 07511 Zip Hydroboil Zip Hydroboil Zip Hydroboil Zip Hydroboil Zip Hydroboil Zip Hydroboil Zip Hydroboil Zip Hydroboil 81446 - February 2005 1.5 Litre White 1.5 Litre Stainless Steel 3 Litre White 3 Litre Stainless Steel 5 Litre White 5 Litre Stainless Steel 7.5 Litre White 7.
Page 2 of 12 Zip Hydroboil - Installation & Operating Instructions - 81446 - February 2005
Contents Read These Warnings First . . . . . . . . . . . . . .4 Installation Requirements . . . . . . . . . . . . . . .4 Installation Procedures . . . . . . . . . . . . . . . . .5 Step 1 – Positioning . . . . . . . .5 Step 2 – Fastening . . . . . . . . .5 Step 3 – Connecting . . . . . . .6 a) Plumbing . . . . . . . .6 b) Venting . . . . . . . . .6 c ) Electrical . . . . . . .6 Step 4 – Assembling . . . . . . .6 Step 5 – Commissioning . . . .6 Wall Mounting Template Dimensions & Electrical Diagram . . . . .
Read These Warnings First Please read all installation requirements, installation procedures and precautions before installing any Zip Hydroboil instant boiling water heater. Never attempt to install any Zip Hydroboil instant boiling water heater without reading all of the applicable instructions. In some hard water areas where mineral scale accumulation in the boiling chamber of the Zip Hydroboil may become a problem, consideration should be given to the maintenance required.
Installation Requirements e) Access to drainage from a vent situated at the base of the heater. f) In all installation instances the walls of the heater must be vertical and the base horizontal, there can be no exceptions to this rule. Note: If the water pressure is likely to exceed 7 bar, a 3.5 bar pressure reducing valve must be installed in the cold water supply line. Installation Procedures Before You Begin Locate the paper mounting-hole template packed with the heater.
Installation Procedures Continued a) Plumbing For exposed plumbing connection, connect the cold water inlet pipe from the base of the heater directly to the 15 mm or half-inch compression fittings with the nuts and olives provided. 250mm Wring 45 mm For concealed plumbing connections, connect the cold water pipe through the rear of the chassis using a 15 mm or half-inch capillary elbow. Cold water pipes must be flushed before connection to the inlet.
Wall Mounting Template Dimensions & Electrical Diagram 274 (1.5 L & 3.O L) 38 (1.5 L & 3.O L) 304 (5.0 L & 7.5 L) 53 (5.0 L & 7.5 L) 19 150 CLEAR 65 CLEAR 318 5.O L 416 3.O L 448 5.O L 561 7.
Problem Solving Sympton Possible Cause Solution Fails to dispense water. Water isolating valve turned off. Blocked filter, blocked meter tube, blocked strainer, jammed ball valve assy, airlock in transfer tube. Check water supply valve. Contact Zip authorised agent. No power. Water not boiling. Runs out of boiling water and fails to refill. Outlet tap drips. Overflow from vent. Excessive steam from vent. Power “on” but no heat. Overload repeatedly tripping with excessive steam.
Operating Procedures Tap Operation Boiling water Zip Hydroboil is fitted with a two-way cool-touch safety tap for filtered instant boiling water. For filtered instant boiling water, gently press the lower end of the tap paddle inwards. Boiling water will flow until the tap paddle is released. This operation gives fingertip flow control for safe filling of cups and mugs.
Spare Parts Page 10 of 12 Key Part No Description 1 90487 Cistern Lid Clamp kit 2000B 2 90488 Cistern Lid and Gasket kit 2000B 3 90490 Gasket kit Hydroboil 2000B 4 90083 Float valve kit w/ float 2000B 5 90069 Jumper valve kit w/ seals 2000B 6 90102 Cistern float kit w/ nut and screw 7 90493 Metering tube kit 1500w 2000B 90494 Metering tube kit 2400w 2000B 8 90495 Banjo screw Hydroboil 2000B version 2 9 90496 O-Ring kit Hydroboil 2000B 10 90507 Fascia lens and actuator kit
Spare Parts 26 1 27 24 5 2 4 9 3 25 13 6 16 11 10 14 7 1 12 19 8 23 9 1 20 21 17 9 18 15 Zip Hydroboil - Installation & Operating Instructions - 81446 - February 2005 Page 11 of 12
Warranty Information The Zip appliance you have chosen is precision-built from the finest materials available and should give many years of trouble free service. Certain warranties may be implied by law into your contract with Zip. The warranty provided below is additional to these implied warranties and nothing set out below shall limit your statutory rights or rights at law.
