Quick Guide

support the weight of the camera. Please prepare the installation tools in advance.

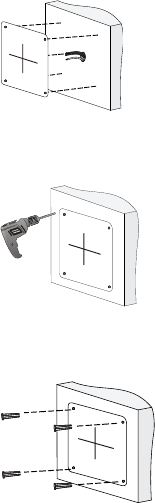

1. Locate the positions of the holes. Paste installation positioning stickers on the

wall and align the cross center to the hole in the wall.

2. Drill holes on the wall. Use a φ6-6.5mm drill bit to drill 30mm-depth guide holes

according to the positions marked by the sticker.

3. Mount the plastic rivets of self-tapping screws. Knock the plastic rivets into the

guide holes and ensure that they are tightened up.

4. Attach the external antenna. Attach the antenna to the antenna connector by

turning the antenna clockwise. Make sure the antenna is fastened.
