Quick Guide

3.4 Installation Steps

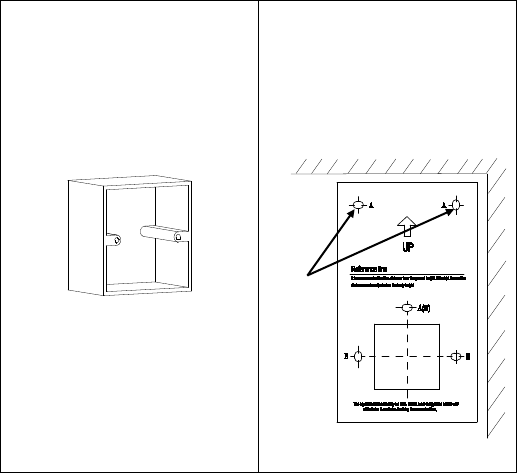

1 With a 86*86mm junction box
1.
Determine the position of the
86*86mm wall-
mounted junction
box.
This installation mode embeds an
86*86mm junction box in the wall in
advance or makes a hole on the wall to
embed the box.
NOTE!
There are two installation holes on the
86*86mm wall-mounted junction box.
They can be parallel to the ground or
vertical to the ground. They need to map
to intermediate holes on the bracket
during actual installation.
2. Align the installation sticker with the
86*86mm junction box and align the
two holes B with the two installation
holes on the 86*86mm junction box.
D
etermine the positions of
installation holes on the wall based on
the two holes A.
Determine
the positions
of installation
holes on the
wall based
on the
two
holes A.
Wall
6
