Quick Guide

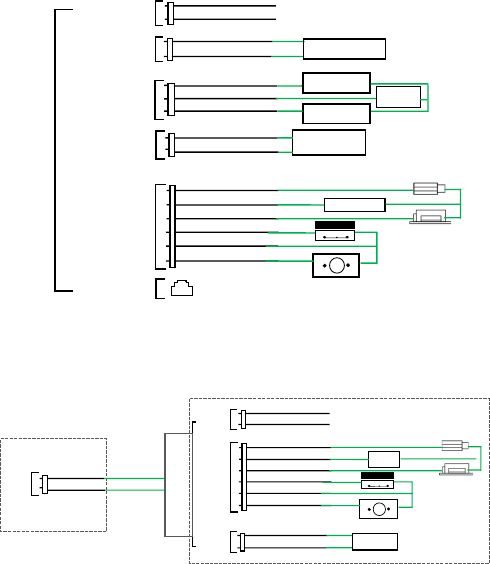

Figure 3-1 Wiring Schematic Diagrams (without Security Module)
The access control terminal can be also connected to a security module. The figure
below shows the wiring of the security module.
Figure 3-2 Wiring Schematic Diagrams (with Security Module)
RS485_N BROWN
RS485_P BLUE
RS485
RS485_P BLUE
RS485_N BROWN
GND BLACK
+12V
GND
VDD12 INPUT ORANGE
LOCK NC YELLOW
LOCK COM WHITE
LOCK NO YELLOW/GREEN
GND BLACK
SEN_ INPUT GREEN
BUTTON INPUT PURPLE
PRESS
TO EXIT
Power
supply
+
+
-
-
+
-
GND BLACK
ALARM INPUT1 GRAY
Alarm input
device
Door opening button
Gated Security
Module
Power
input
Door
lock
Alarm
input
Anode lock/Magnetic lock
Cathode lock
Door status
switch
Access Control Terminal
5
