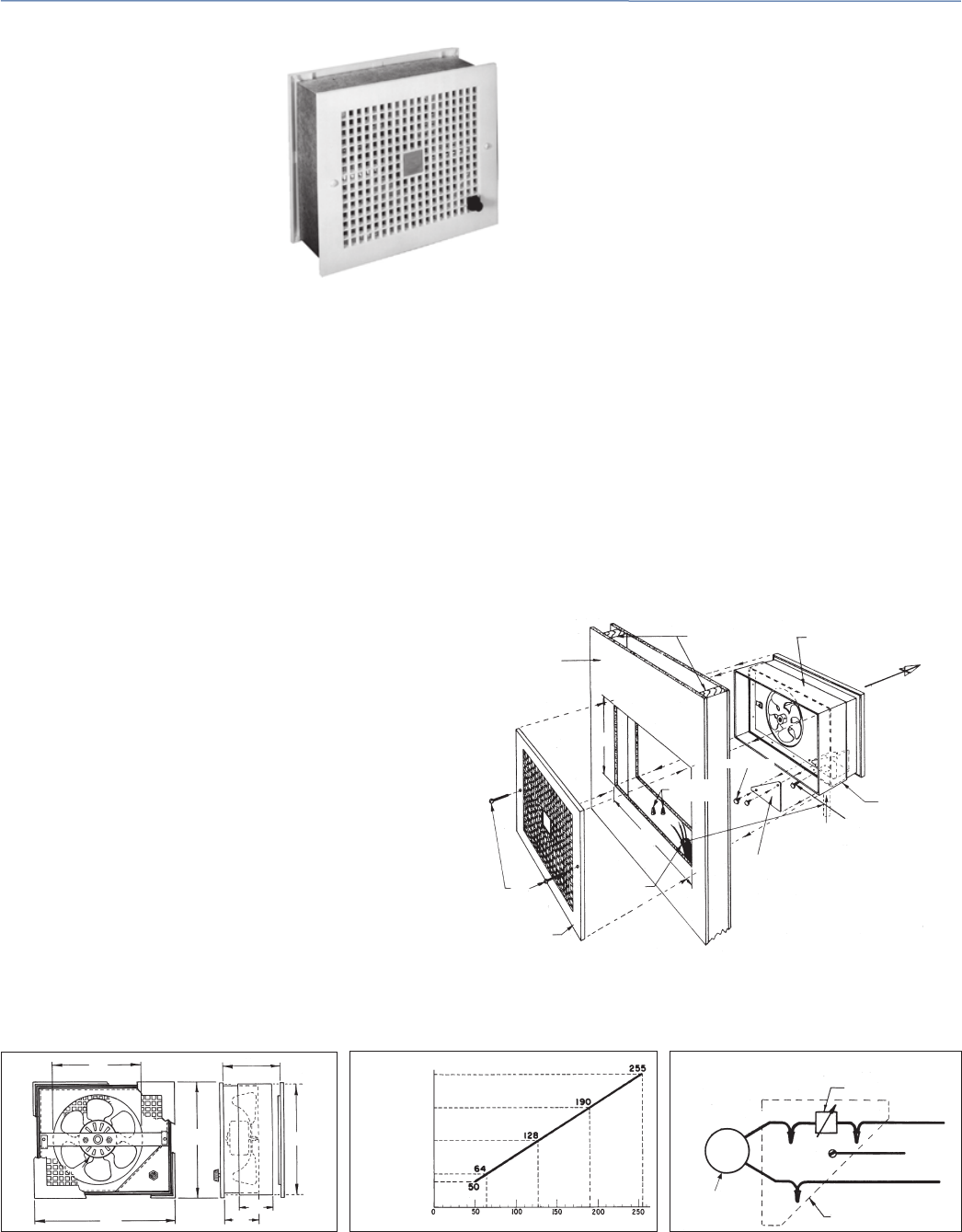

Specifications

Transfan
Room-to-Room Fan
PENNBARRY
3
Zephyr Transfan
Wood or coal burning stoves, gas
or oil fired space heaters and fire-
places do an excellent job of eco-
nomically heating the surrounding
space. The PennBarry Transfan is
now available to move that heated
air through partitions or ceilings to
other rooms in your home or office.
The Transfan spreads the value of
your stove or heater. It’s easy to
install, quiet and economical, and effectively moves heated
air to remote rooms.
Each PennBarry Transfan has an integral Lek-Trol™ speed
controller to modulate airflow. Capacity can be varied from 50
to 255 cubic feet of air per minute. Power consumed is less
than 60 watts making the Transfan a great energy stretcher.
Features:
• Fits easily between wall studs or ceiling joists
• Variable speed controller is built-in for individual
comfort adjustment
• Attractive face grilles diffuse air evenly
• Moves up to 255 cubic feet of air every minute
• Installs in walls 3 3/4" to 5" thick with adjustable sleeve
• Runs quietly even at top speed
• 490 rpm fan speed
• 115 volts single phase
• 255 CFM air capacity at 0" S.P.
• 60/50 Hz
• 2.2 sones quiet operation
• 9.5 lb., shipping weight
NOTE: Performance shown is for installation type A - Free inlet, Free outlet.
Performance ratings include the effects of inlet and outlet grilles installed.
Speed (RPM) shown is nominal. Performance is based on actual speed of
test. The sound ratings shown are loudness values in fan sones at 5' (1.5m)
in a hemispherical free field calculated per AMCA std. 301. Values shown are
for installation Type A: free inlet fan sone levels. The AMCA Certified Ratings
Seal applies to air performance ratings only.
Dimensional Data
Variable Speed Contoller
with S.P.S.T. Switch
Cubic Feet Per Minute of Air
Motor
120 Volt
Thermoprotected
Triangular Box
White Black
Black
Ground
Wire
8
1
/ 2 "
Adjustable
10
1
/ 4 "
3
7
/ 8 "
11"
13
3
/
4 "
Effect Of Speed Control
on CFM Capacity
DIA.
White
Black
3/4 RPM POS.
1/2 RPM POS.
1/4 RPM POS.
LOW RPM POS.
Speed Control Positions
FULL RPM POS.
Compact Transfans Are Easy To Install
Installation Instructions:
1. Cut 12 3/4" wide x 10 1/4" high openings between wall
studs or ceiling joists (template provided).
2. Run 115/1/60 (house current) to the opening.
NOTE: The Transfan has its own built-in, on-off, variable speed
controller so a separate switch is not needed if the Transfan is located
within arm’s reach.
3. Measure the wall thickness and slide the telescoping
sleeve to its required depth. Standard Transfans fit open-
ings 3 3/4" to 5" thick. For thinner walls, add a frame
around the opening.
4. Place the Transfan in the wall and draw UL listed wire
through the bottom hole of the junction box. Make secure
electrical connection with two wire nuts and replace junc-
tion box cover.
5. Slide the Transfan into its permanent position (be sure
the grille that was shipped attached to the unit-with knob-
is facing the room into which airflow is to be directed)
and install the unattached grille.
Wall
Studs
Transfan with
Grille Attached
Telescoping
Sleeve
120 V. Power Source
(By Others)
Ground Screw
Junction
Box Cover
S/M Screw
Wire
Nuts
10
1
/4"
Two
Bolts
Grille
Detached
‘ROMEX’
or ‘BX’
2 X 14 GA.
+ Ground
(By Others)
Air
Flow
12
3
/4"
Field Wiring Method
