Instruction manual

INSTALLATION
206-3839

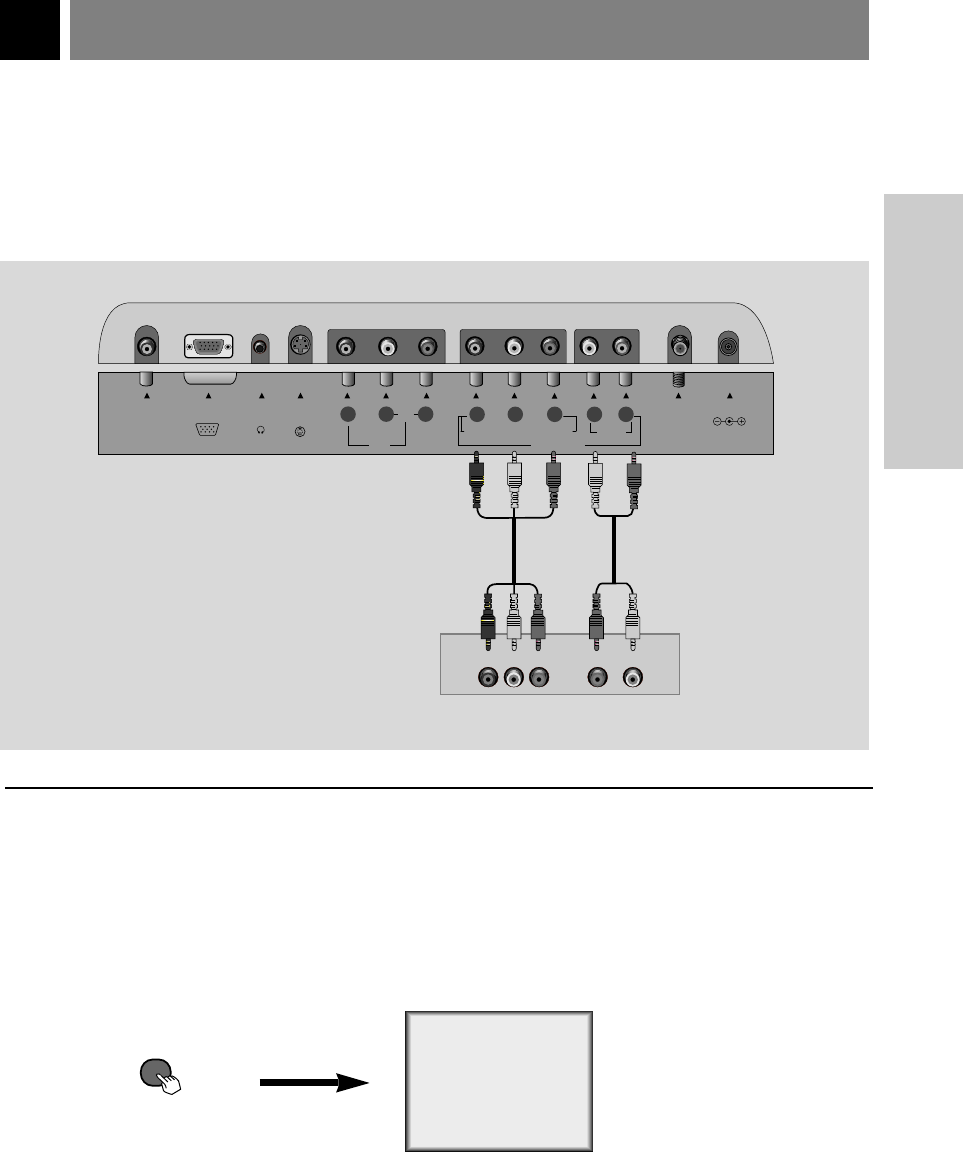

DTV (Set-top Box) Connections
17
1
Connections
2
Viewing Setup
AUDIOYPB PR (L)
(R)
DC 12V
ANT IN
+75 Ω
COMPONENT(480i/480p/720p/1080i)
PC INPUT
S-VIDEO H/P
PC
SOUND
IN
DVD/DTV IN
AUDIO
RLVIDEO
P R P B Y L R
AUDIO(MONO)
Component
● Turn on the DTV receiver (Set-top Box).
● Turn the TV on and use tv/video button to select Component source.
On Remote Control
● Connect DVD/DTV output to COMPONENT(480i/480p/720p/1080i), Y, PB, PR jack inputs on the TV.
Connect DTV L/R audio outputs to the TV's AUDIO L/R input jacks.
Note: A DTV set-top box is required to receive DTV programming.
TV Connections Panel
DTV Receiver (Set-top Box) Connections Panel
tv/video
