43
Getting Started
Printing a Configuration Label — External ZebraNet 10/100 Print Server
02/28/2012 P1043301-002

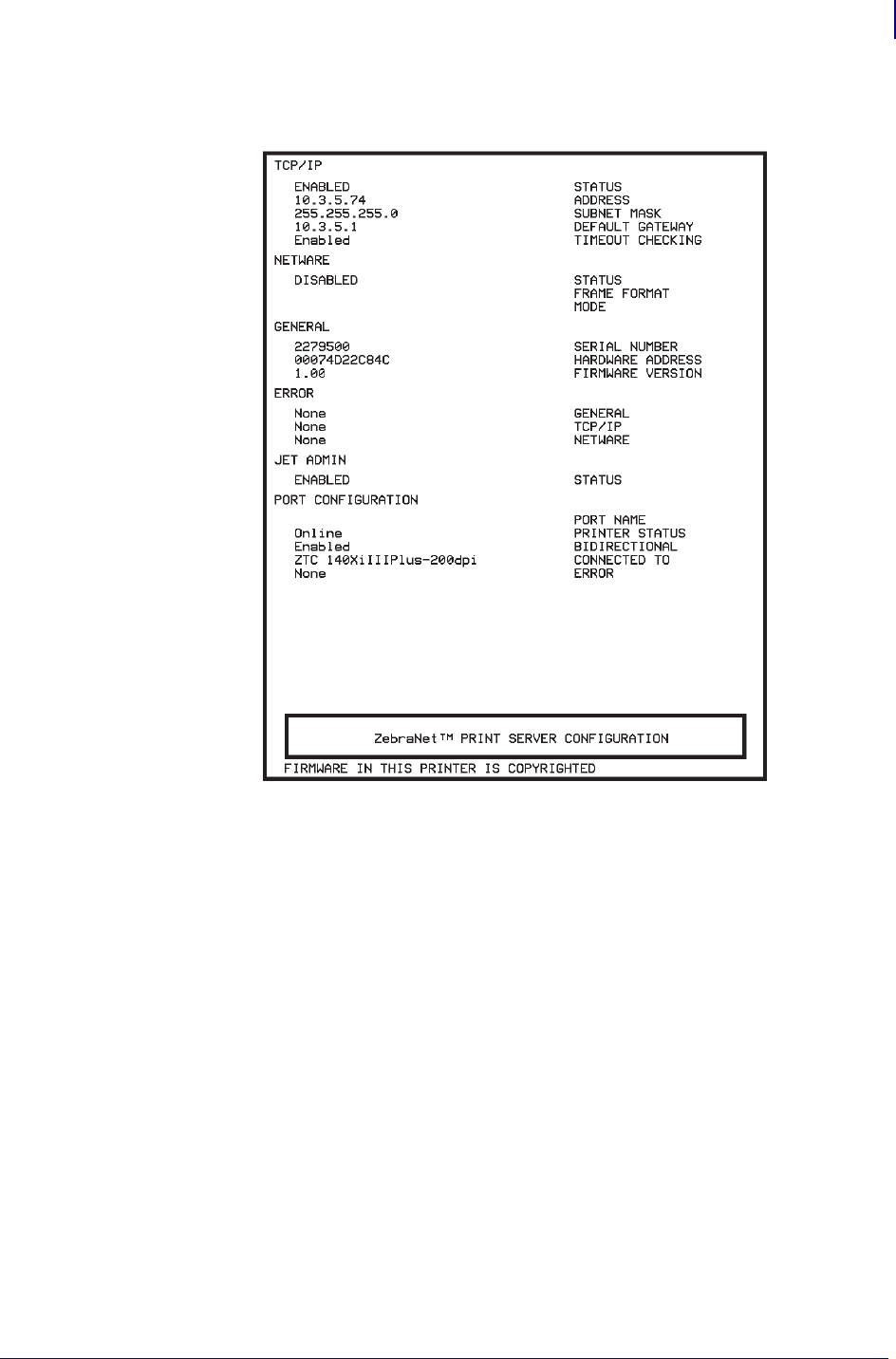

Figure 6 • Configuration Label
with an External ZebraNet 10/100 Print Server
3. From the configuration label, you need to look for these numbers:
• ADDRESS (IP address)
• SUBNET MASK
• DEFAULT GATEWAY
• SERIAL NUMBER
• HARDWARE ADDRESS (MAC address)
4. On the configuration label that prints out for your external ZebraNet 10/100 Print Server
device, circle the aforementioned settings. You can now proceed to Assigning an IP
Address on any Print Server on page 58.
