User guide

115
Print Server Web Pages
Print Server Features
02/28/2012 P1043301-002

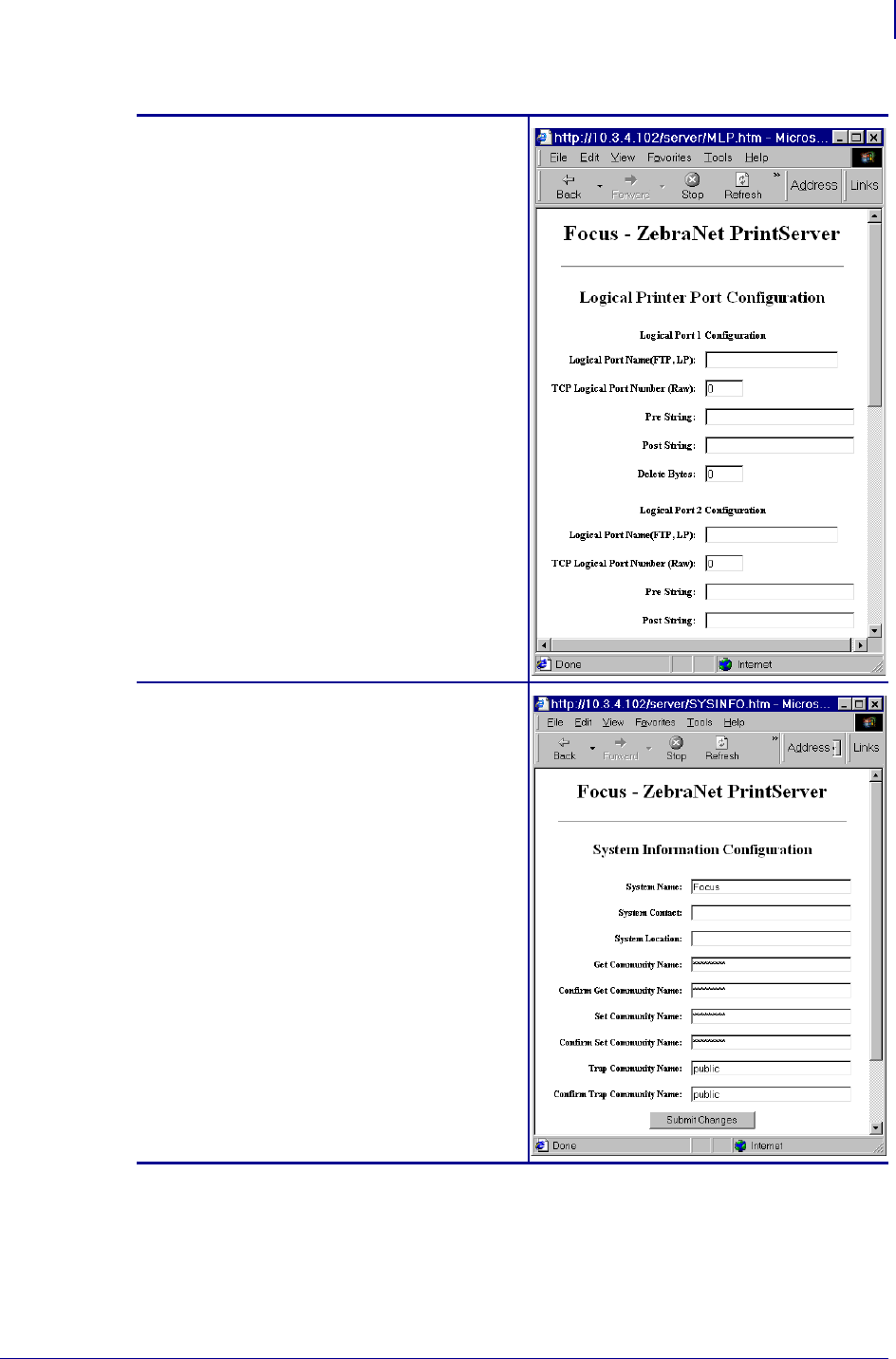

TCP/IP Logical Printing Ports
Logical printers allow you to set up multiple
pre- and post-processing configurations for
each output port. Each logical port
configuration can perform the following:
• Add user-configured strings before and
after the print data.
• Remove unwanted characters from the
beginning of the print data.
• Four logical printer configurations are
supported for each output port on the
printer. The configurations can be assigned
to any port, and all of these configurations
can be assigned to a single output port.
System (SNMP)
This feature gives you the ability to manage
multiple devices on a network, be it printers,
computers, or other network-attached devices.
On this page, you can define the SNMP system
name, system location (10/100 Internal Print
Server description), and other SNMP settings
for your 10/100 Internal Print Server.
Table 19 • Print Server Configuration Menu Options (Continued)
