Chapter 3: Wireless Modem Card Installation
6881011Y52-D January 2007
3-4
Never use the WMC6300 or the WMC7300 with the Antenna
removed from the rooftop, or with the Antenna disconnected from
the Card.
4

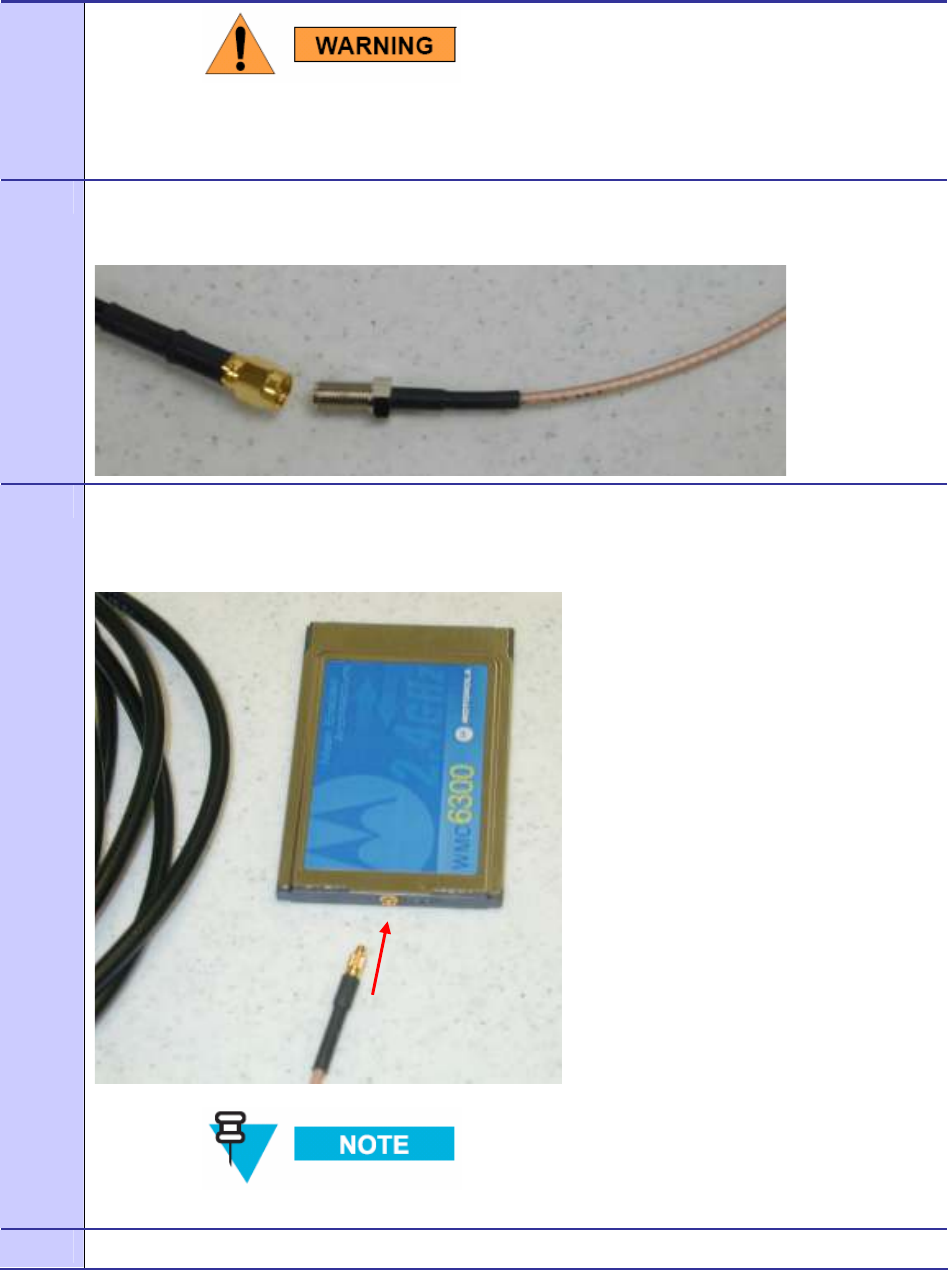

Connect the Antenna Cable end to the MMCX adapter cable (from detail of Circle A in Figure 3-2).
Figure 3-3 Antenna Cable end connecting to MMCX adapter
5
Connect the MMCX adapter cable to the WMC6300 (or the WMC7300) by pressing it firmly into the
card’s antenna port (shown in Circle B, Figure 3-2).
Figure 3-4 N-Type SMA to the MMCX adapter connecting to the WMC6300
The connector will snap into place when properly inserted.
6
Insert the WMC6300 card into the Host computer’s PCMCIA slot.
