2.13.2 INSTALLATION
The charger can we wall mounted using the screw holes on the back or placed on a flat surface. The screw holes are 5.36 inches
(136 mm) apart. When selecting a deployment location, ensure the power adapter cables reach from the electrical outlet to the
charger. The charger and its power adapter must be deployed in a well ventilated location. The charger and power adapter
should have a 1" clearance on each side from surrounding objects. It must only be deployed indoors, in a dry area free from
spills or potential contamination. The temperature should be between 60 and 80 degrees Fahrenheit.
The charger is designed so DC power cable can be installed from the rear of the charger housing without removing the base.
The cable and connector do not interfere with the base lying flat on any surface. The DC cord snakes through strain relief
features in the housing to prevent accidental disconnects. The external power adapter DC cable terminates with a right-angle
connector at the charger interface.

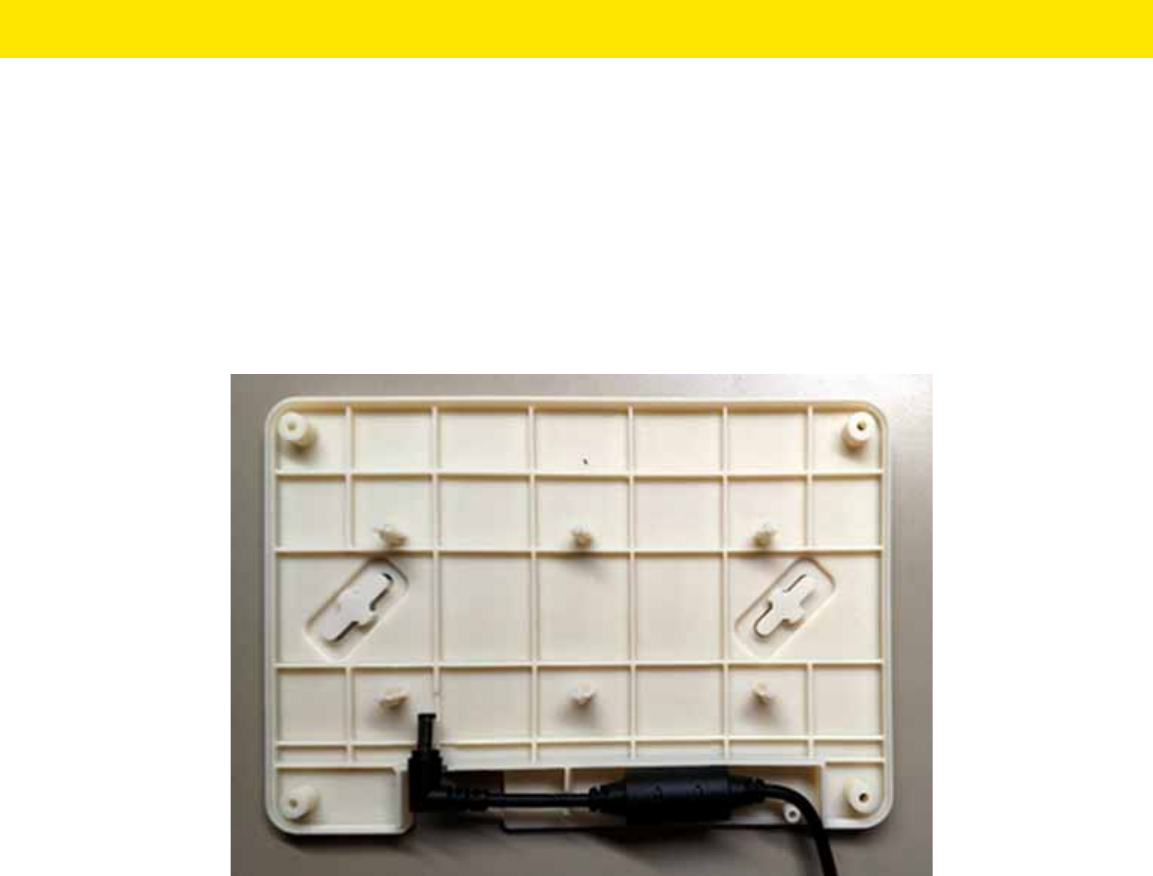

Figure 2-35 MPACT-MB6000-CHRGR - DC Power
