2.10 Installing a GE-MB5000-01-WR Hub
Peel backing tape from adhesive on the back of the rear cover and place firmly on a wall. Make sure the arrow is pointing up
and the power cord can reach from a nearby electrical outlet to the device.

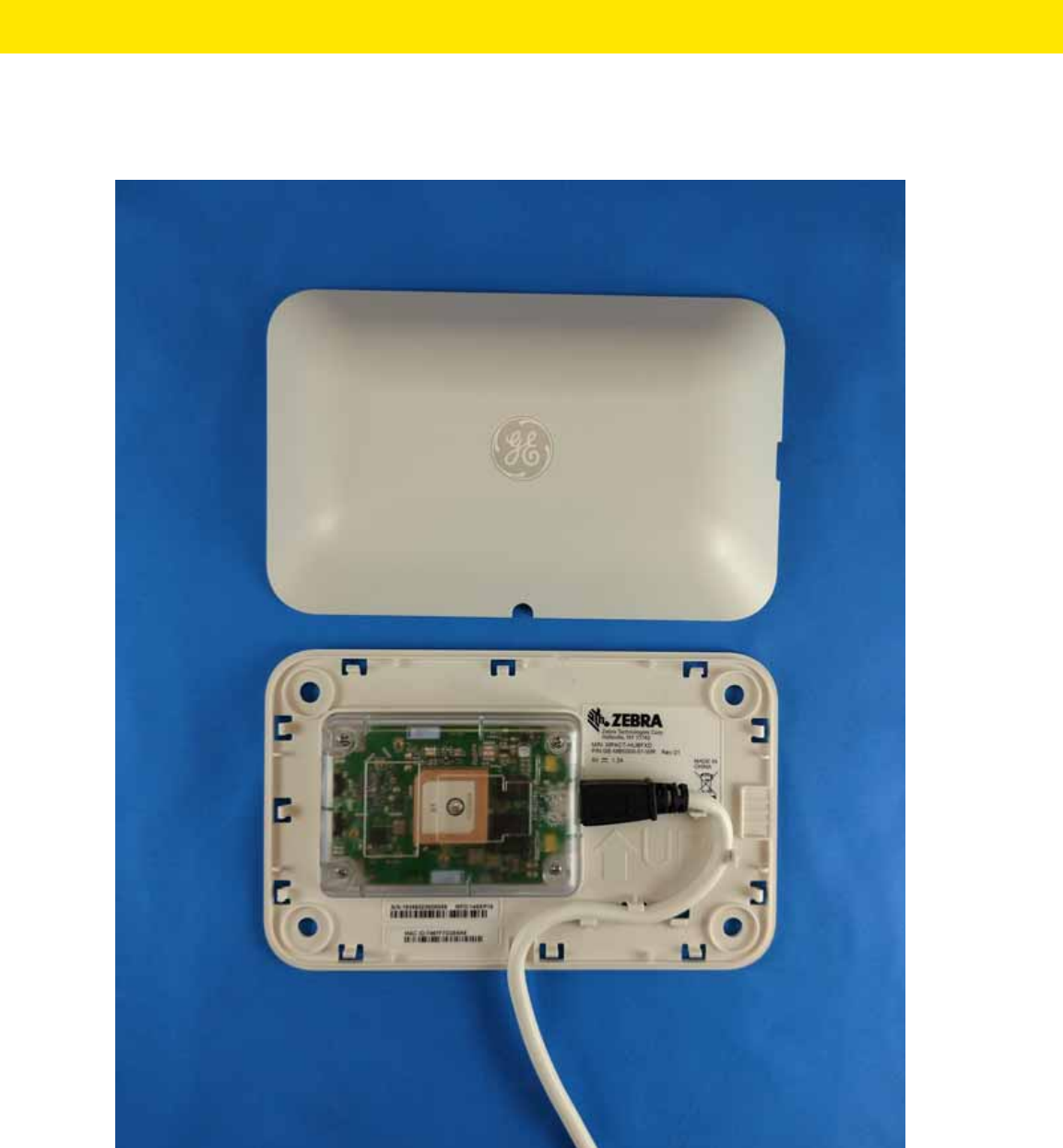

Figure 2-28 GE-MB5000-01-WR Hub - Install Hub Components
Be sure USB plug
can reach the
power adapter
Screw holes can be
used to mount the
device (screws not
provided) on very
rough surfaces where
adhesive tape is not
recommended. the
distance between the
screw horizontally is
109 mm and a size #8
or #10 pan head screw
is ideal. The screw
hole is 5.2mm in
diameter
