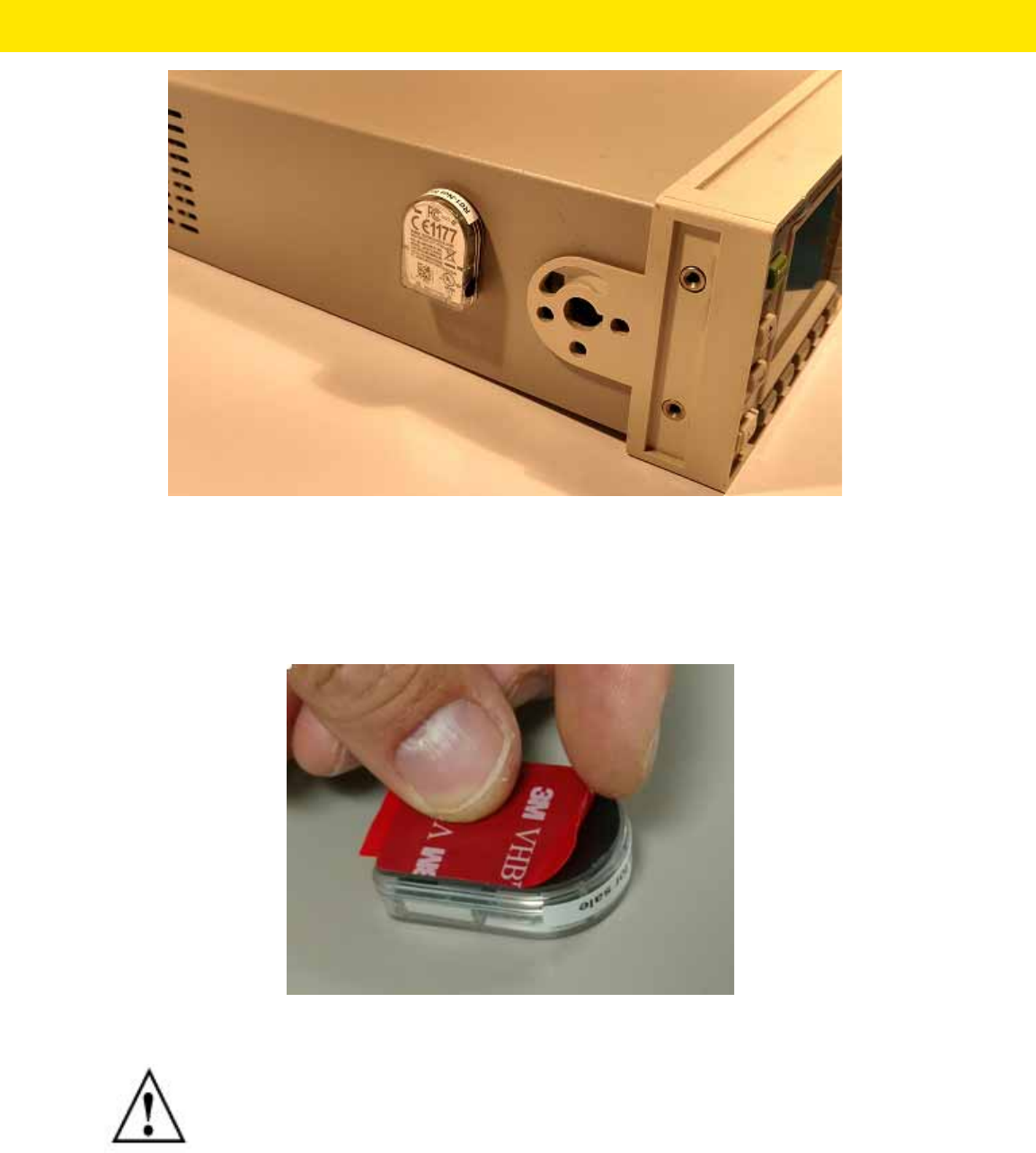

Figure 2-21 GE-MB1000-01-WR Preferred Orientation
To mount a GE-MB1000-01-WR model asset beacon:
1. Peel the tape from the adhesive pads on the rear of the asset beacon (as shown below) and press the unit to the mounting
surface.
Figure 2-22 GE-MB1000-01-WR Adhesive Tape
2. Initialize the unit per the operating instruction.
NOTE: Once adhered to a surface, its very difficult to remove. The asset beacon’s
adhesive pads need replacement if moved to a new location. If the surface is clean and
smooth, 3M VHB tape should be used to mount the asset beacon. However, if it is wood,
brick or some other surface that’s not smooth and clean, the 3M tape will not adhere to
the surface. In this situation, use the mounting accessory and a tie wrap, or other
mounting device.
