2.7.2.2 Mounting Outdoor Style Beacon
To mount a Outdoor Style beacon with 3M™ VHB™ tape:
1. Peel the plastic off from 3M™ VHB™ tape.
2. Press the backside of the Outdoor Style beacon firmly to a smooth clean mounting surface.
To mount a Outdoor Style beacon with No. 6 gauge or M3.5 screws:
1. Press the backside of the beacon to the mounting surface.
2. Insert screws into the screw holes as shown in Figure 2-17 on page 2-16.
3. Hand tighten the screws to firmly secure the beacon.

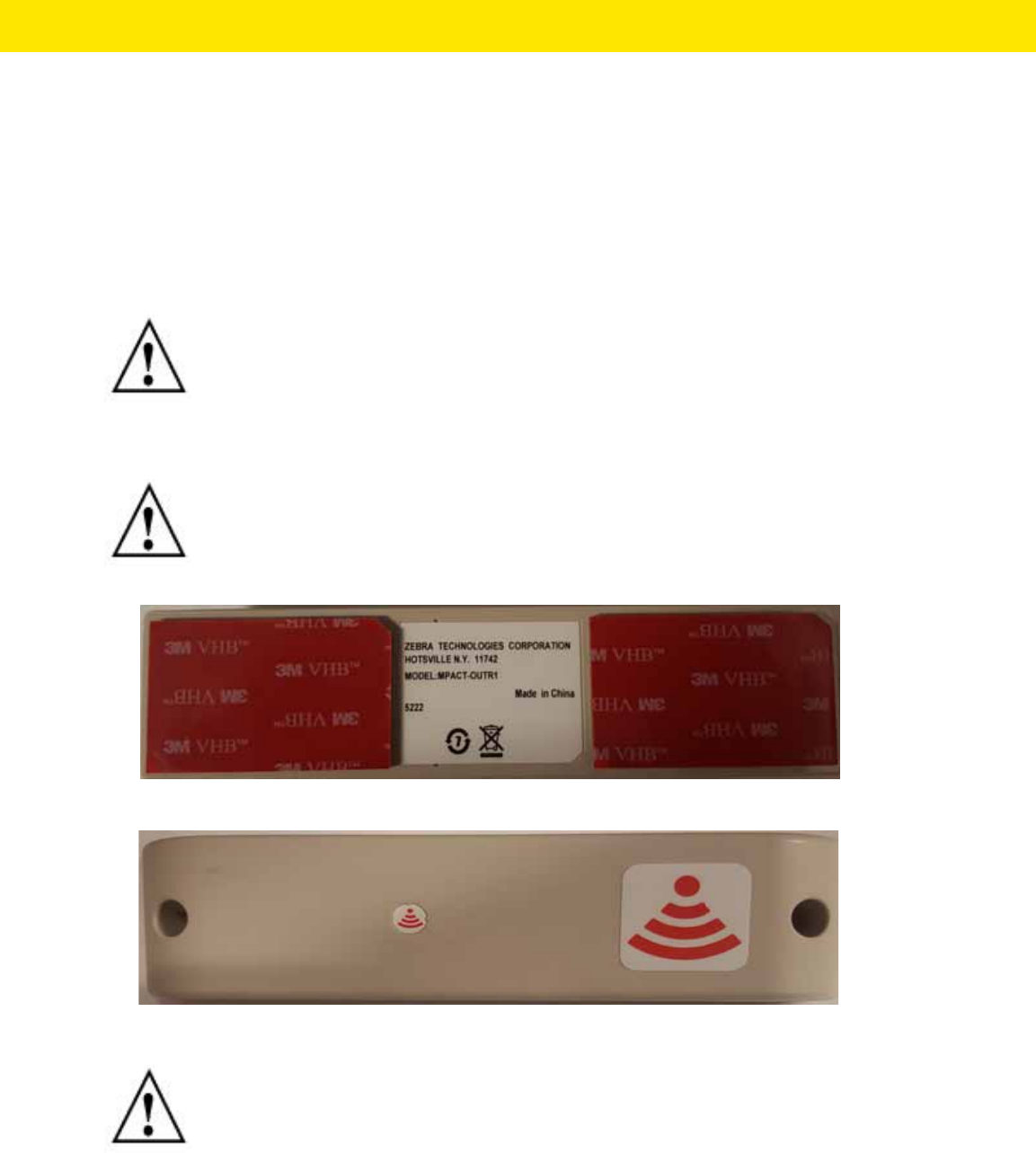

Figure 2-16 Back of Outdoor Style Beacon Outdoor Beacon
Figure 2-17 Top of Outdoor Style Beacon - MPACT-MB4000-01-WR
NOTE: Zebra recommends not removing the plastic backside of the 3M tape when
mounting the beacon with screws.
NOTE: Ensure the beacon is positioned correctly. Once the beacon is mounted it should
difficult to remove.
NOTE: On MPACT-MB4000-01-WR model outdoor beacons, the red antenna pattern
indicates that the antenna is pointing down.
