2.3.2 Mounting and Installing a GE-MB2001-01-WR
To mount a GE- MB2001-01-WR model beacon ,use only the GE-MB2001-01-ACC housing. Please see the mounting
instructions for this product in order to mount the GE-MB2000-01-WR.
Clip the Beacon into the rear of the housing with the gray button on the right side as shown in this picture.

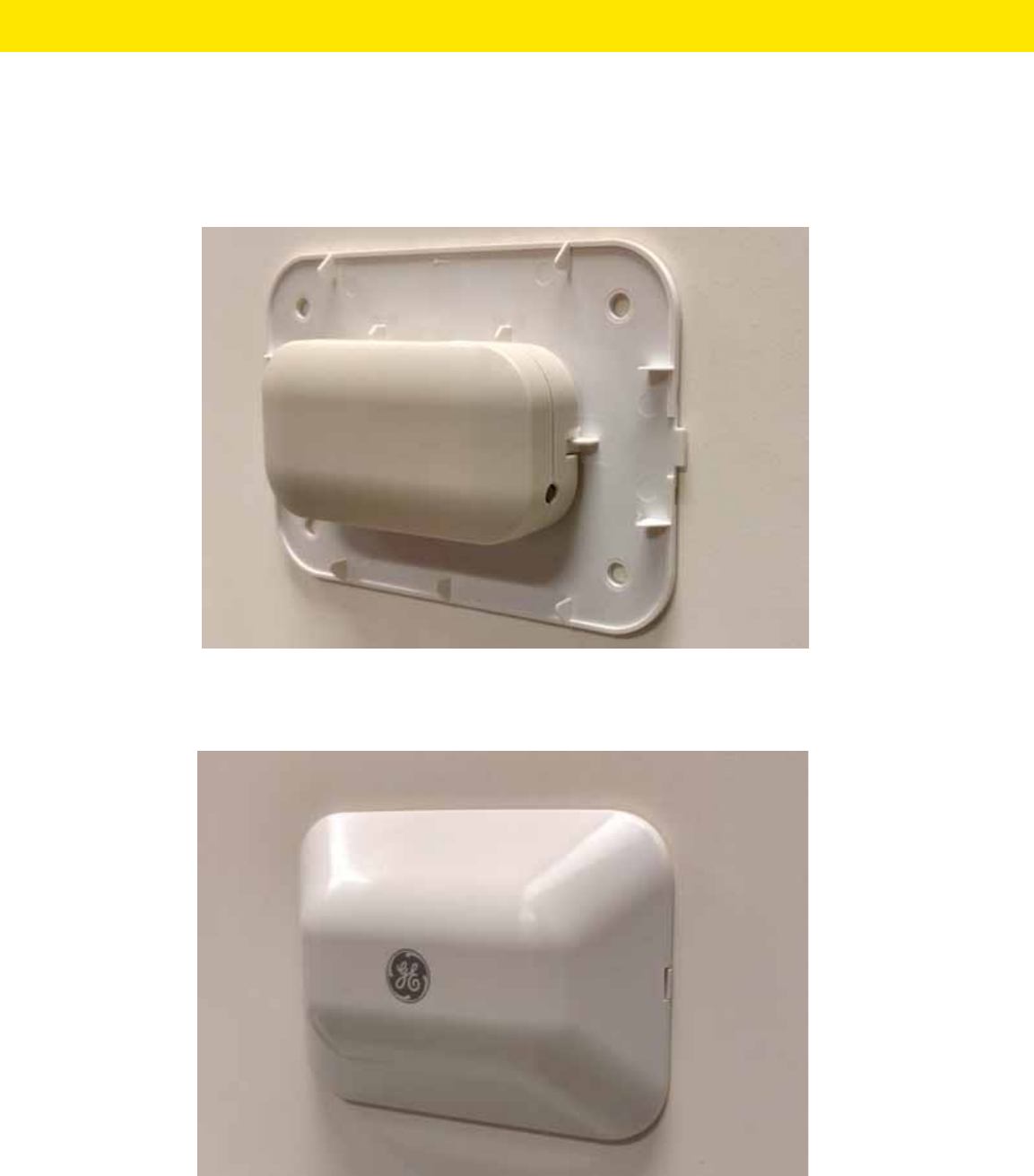

Figure 2-9 GE-MB2001-01-WR Cover and Wall Mount - Beacon on Back Plate
Snap the top cover in place with the small gap showing on the right side and any logo in an upright position.
Figure 2-10 GE-MB2001-01-WR Cover and Wall Mount - Installed
