Activate one or MPACT-T1B10-000-WR model beacons by pulling the mylar strip off the beacon housing.
2.2.2 Beacon Battery Replacement
When a beacon’s battery life is less than 20%, the beacon should be prioritized for immediate replacement. The beacon’s
battery is located within a battery tray in the beacon’s housing.
This section includes procedures for replacing batteries for the following part numbers:
• Replacing MB1000 Battery: MPACT-T1B20-000-WR and MPACT-T1B10-000-WR
2.2.2.1 Replacing MB1000 Battery: MPACT-T1B20-000-WR and MPACT-T1B10-000-WR
MPACT-T1B20-000-WR and MPACT-T1B10-000-WR beacon battery:
1. Remove the beacon from the shelving unit.
2. With the bottom of the beacon facing up, gently lift each corner of the beacon’s battery tray.

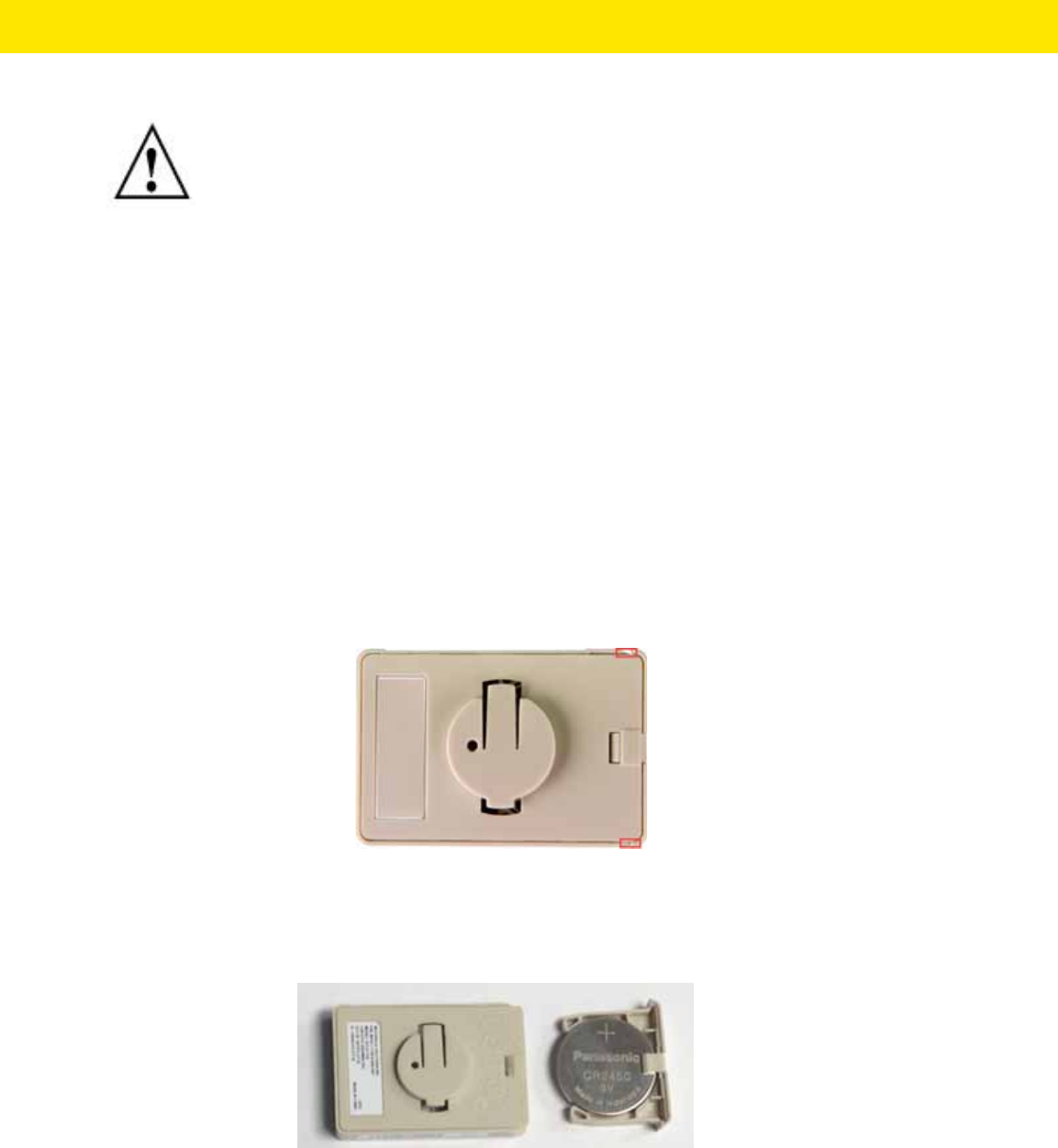

Figure 2-5 shows the beacon battery housing for part number MPACT-T1B20-000-WR and MPACT-T1B10-000-WR and
MPACT-T1B10-000-WR. In this example, the battery tray is on the right and the corners of the battery tray are marked in
red. When gently lifting each tray corner, slightly push the each corner out to dislodge corners of the tray.
Figure 2-5 Beacon Battery Housing Example: MPACT-T1B20-000-WR and MPACT-T1B20-000-WR and MPACT-T1B10-000-WR
3. With both tray corners dislodged, gently slide the battery tray open, being careful not to drop the tray.
Figure 2-6 shows an open battery housing. In this example, the battery tray is a separate piece, along with the battery, on
the right-hand side.
Figure 2-6 Battery Tray: MPACT-T1B20-000-WR and MPACT-T1B20-000-WR and MPACT-T1B10-000-WR
CAUTION: After pulling off the last mylar strip, you have 20 seconds to associate the
beacon in either off-line or on-line mode using the Toolbox application.
