To mount the universal style beacon to Lozier® Shelves:
1. Mount the universal beacon shelf-bracket on the shelf:
• Metal brackets: Fit in place and tighten onto the shelving unit using a Phillips-head screw driver.
• Plastic brackets: Fit in place and snap onto the shelving unit.
2. Fit the beacon’s universal style housing into the bracket (mylar strip pointing up) and turn the beacon housing clockwise 90
degrees.
The barcode label should face up toward the ceiling and the smooth front of the beacon should face out toward the aisle
where the mobile client is expected to engage.
There are two styles of bracket mounts from which to choose, either metal or plastic for Beacon: 
Part number - MPACT-T1B10-000-WR.

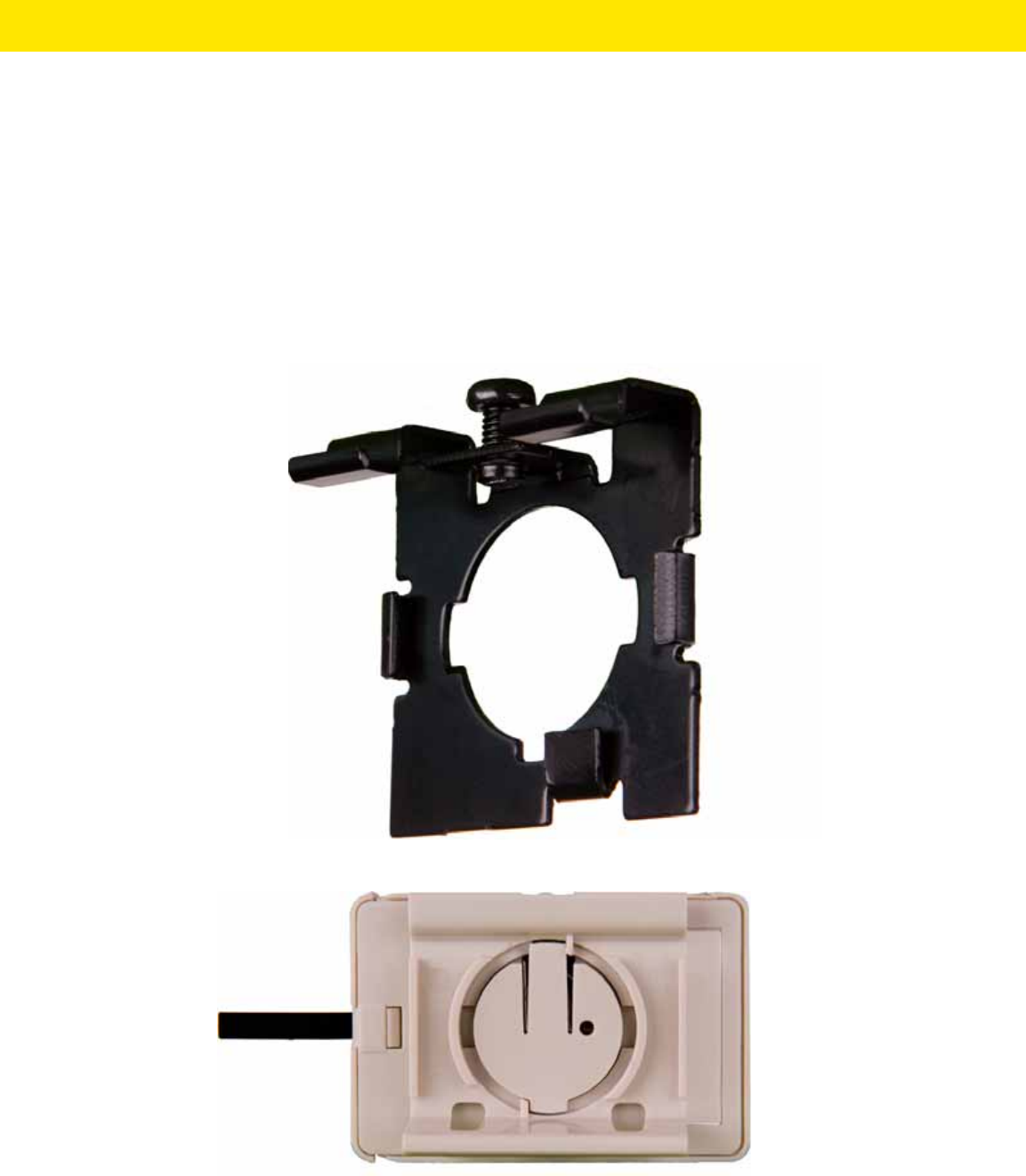

Figure 2-3 Universal Style Metal Bracket - Part Number MPACT-A1O10-004-WR
Figure 2-4 Universal Style Plastic Bracket with Beacon- Bracket Part Number MPACT-A1O10-001-WR
