User's Manual

www.zebra.com/MC55
Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
AVOID EXTREME
WRIST ANGLES
Screen Protector
Charge Only Cable
Zebra recommends the continued use of a screen
protector to minimize wear and tear. Screen
protectors enhance the usability and durability of
touch screen displays. Benefits include:
• Protection from scratches and gouges
• Durable writing and touch surface with tactile feel
• Abrasion and chemical resistance
• Glare reduction
• Keeping the device’s screen looking like new
• Quick and easy installation.
Not using a screen protector can affect your warranty coverage. An initial
screen protector is already applied to your MC55E0. Contact your local account
manager or Zebra for more information and purchasing details. Part number:
KT-67525-01R Screen Protector 3/pk.
MN-003059-01 Rev. A — August 2017

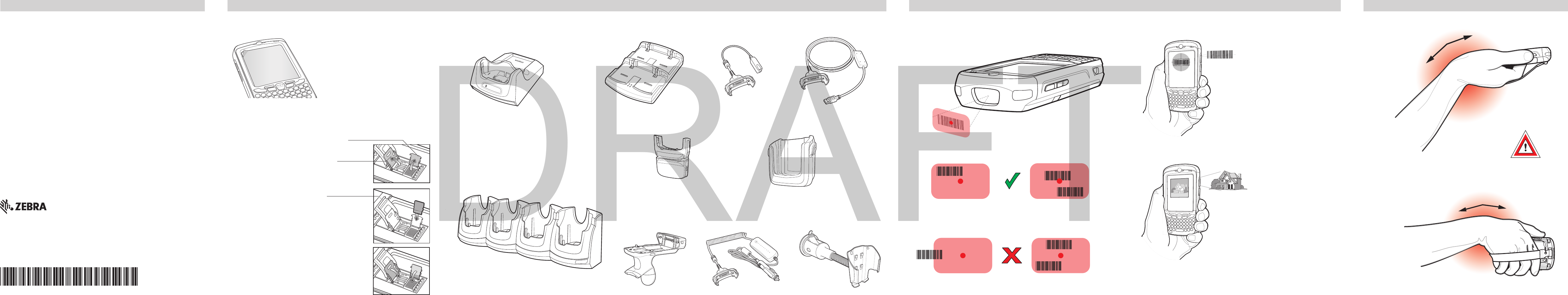

AVOID EXTREME WRIST ANGLES
MicroSD Card Installation
ACCESSORIES
Auto Charge Cable
USB/Charge Cable
Four-slot Battery Charger
Single-slot USB Cradle
Single-slot Ethernet/Modem/USB Cradle
Vehicle Holder
Four-slot Charge Only Cradle
Four-slot Ethernet Cradle
Imaging
Camera Decode
Camera Photo
1. Launch a bar code reading application on the
MC55E0.
2. Position the MC55E0 toward the bar code.
3. Press the Scan button.
4. In the image window align the red target over
the bar code. When the MC55E0 decodes the
bar code the Scan/Decode LED light green and
a beep sounds.
5. Release the Scan button.
Setting up, using and troubleshooting the MC55E0
MC55E0 User Guide and Integrator Guide
Software Upgrades
Available at: www.zebra.com/support
Additional Software
Check Zebra web site for approved applications.
www.zebra.com/mc55
Connecting and synchronizing with the host computer
ActiveSync
®
Help on the host computer. To view help, start ActiveSync
®
,
Click Help - Microsoft ActiveSync Help.
ActiveSync software available at www.microsoft.com.
Information on using programs on the MC55E0
Tap Start – Help within the specific program.
Service and Warranty
MC55E0 Regulatory Guide
Available with MC55E0 and at www.zebra.com/support
1. Remove battery.
2. Lift rubber access door.
3. Slide SIM card holder up to unlock.
4. Lift SIM card holder.
5. Carefully lift microSD card holder.
6. Insert microSD card into card holder.
NOTE :
Proper position of the microSD card — the card
connector (i.e., gold contacts) should be facing out as
shown.
7. Close the microSD card holder.
8. Close the SIM card holder.
9. Slide the SIM card holder down to lock into place.
10. Close rubber access door.
11. Replace battery.
1. Tap Start > Pictures & Videos > Camera.
2. Point the MC55E0 at an object.
3. Press the Enter button.
4. Hold MC55E0 still until “Shutter Sound” is
heard.
SIM Card Holder
microSD Card Holder
Rubber Access Door
DATA CAPTURE OPTIONS
Vehicle Cradle
Trigger Handle
Magnetic Stripe Reader
MORE INFORMATION
© 2017 ZIH Corp and/or its affiliates. All rights reserved. ZEBRA and the stylized
Zebra head are trademarks of ZIH Corp, registered in many jurisdictions
worldwide. All other trademarks are the property of their respective owners.
